Stainless Steel 304L pipe fitting installed between two lengths of pipe to allow a change of direction. The radius of curvature of a long-radius elbow is 1.5 times the pipe diameter, but a short-radius elbow has a radius equal to the pipe diameter. Stainless Steel 304L is one of the most versatile and widely used stainless steel and it is still sometimes referred by its old name 18/8 which is derived from its composition of being 18% chromium and 8% nickel. ASTM A403 WP304L exhibits excellent corrosion resistance, high ease of fabrication and outstanding formability.
They are the most versatile and widely used alloy in the stainless steel family, which is ideal for wide variety of commercial and domestic applications. They are the most common pipe fitting which is used to divide or combine fluid. They can change the direction of a pipe run and can connect pipes of different diameters. They are available in wide range of construction materials depending upon the nature of media to be transported.

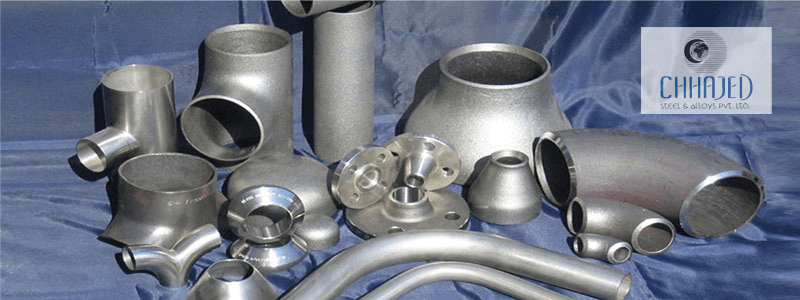

ASTM A403 WP304L buttweld pipe fittings is a part used in a piping system, for changing direction, branching or for change of pipe diameter and it is mechanically joined to the system.
Specification Schedule of Stainless Steel WP304L Pipe Fittings
SpecificationsASTM A403 / ASME SA403Size1/8 inch NB TO 48 inch NB. (Seamless & 100% X-Ray Welded, Fabricated)StandardsASME/ANSI B16.9, ASME B16.28, MSS-SP-43Thickness5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS SupplierTypeSeamless, Welded, Fabricated
Chemical Properties of Stainless Steel WP304L Pipe Fittings
GradeCarbonNiPCrMnSiSMoNSS WP304L Pipe Fittings0.03 max8 - 120.045 max18 - 202 max0.75 max0.030 max-0.10 max
Mechanical Properties of Stainless Steel WP304L Pipe Fittings
DensityYield Strength - Psi MPa (0.2% Offset)Melting Range (°C and °F)Tensile StrengthElongation8.0 g/cm3MPa - 205 / Psi - 300001400 °C (2550 °F)Psi - 75000 , MPa - 515-
Equivalent Standard of Stainless Steel WP304L Pipe Fittings
MaterialWerkstoff No.TradenameDensity (g/cm3)UNS No.ASTM A403 WP304L Fitting1.4307WP304L Stainless8.0S30403
