What Is a CHRA Cartridge and How Does It Work?

Turbocharger technology has evolved significantly, with the CHRA (Center Housing Rotating Assembly) cartridge at its core. This essential component houses and protects the rotating assembly, optimizing airflow, cooling, and lubrication to enhance performance. As highlighted by Goldfarb Associates, understanding CHRA cartridges is key to maximizing turbocharger efficiency and overall engine performance.

Defining the CHRA Cartridge

What Is a CHRA Cartridge?

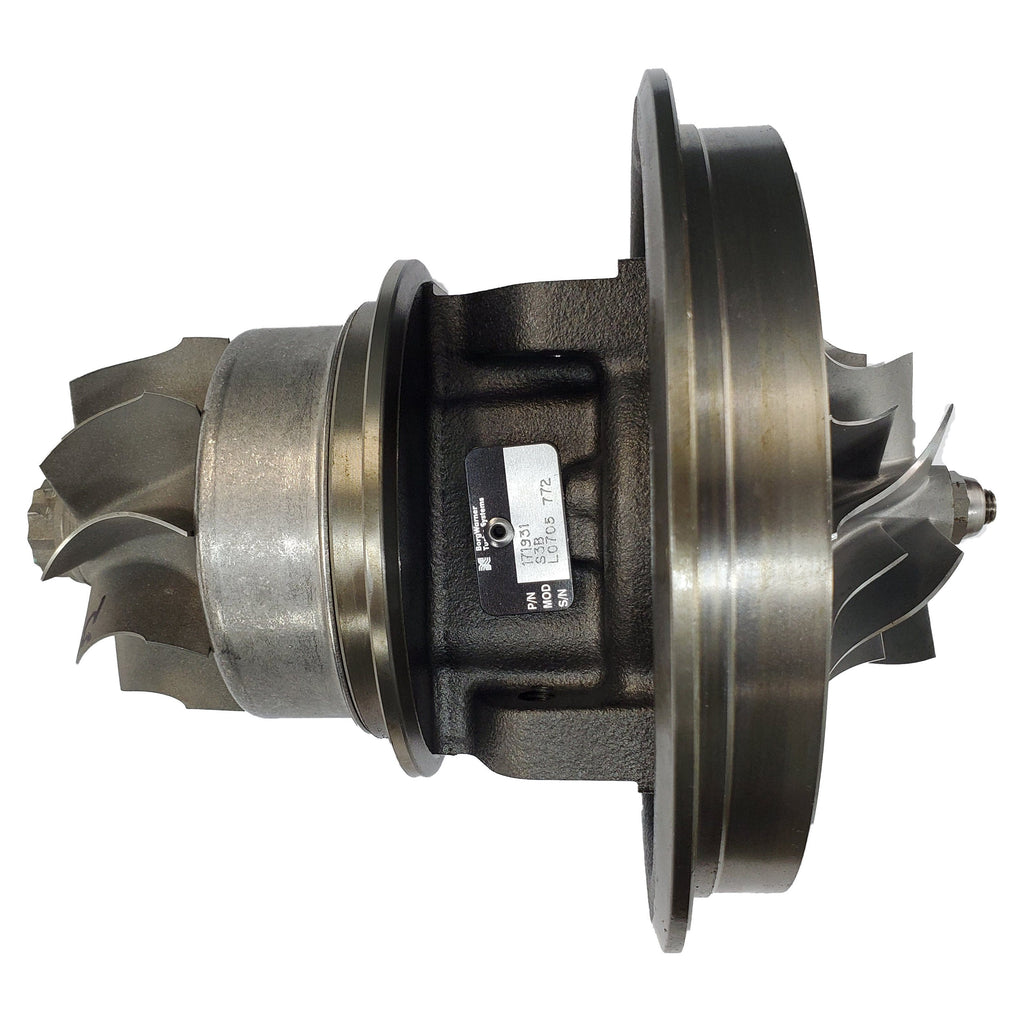

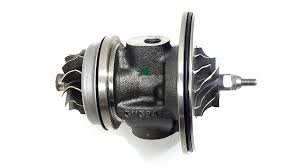

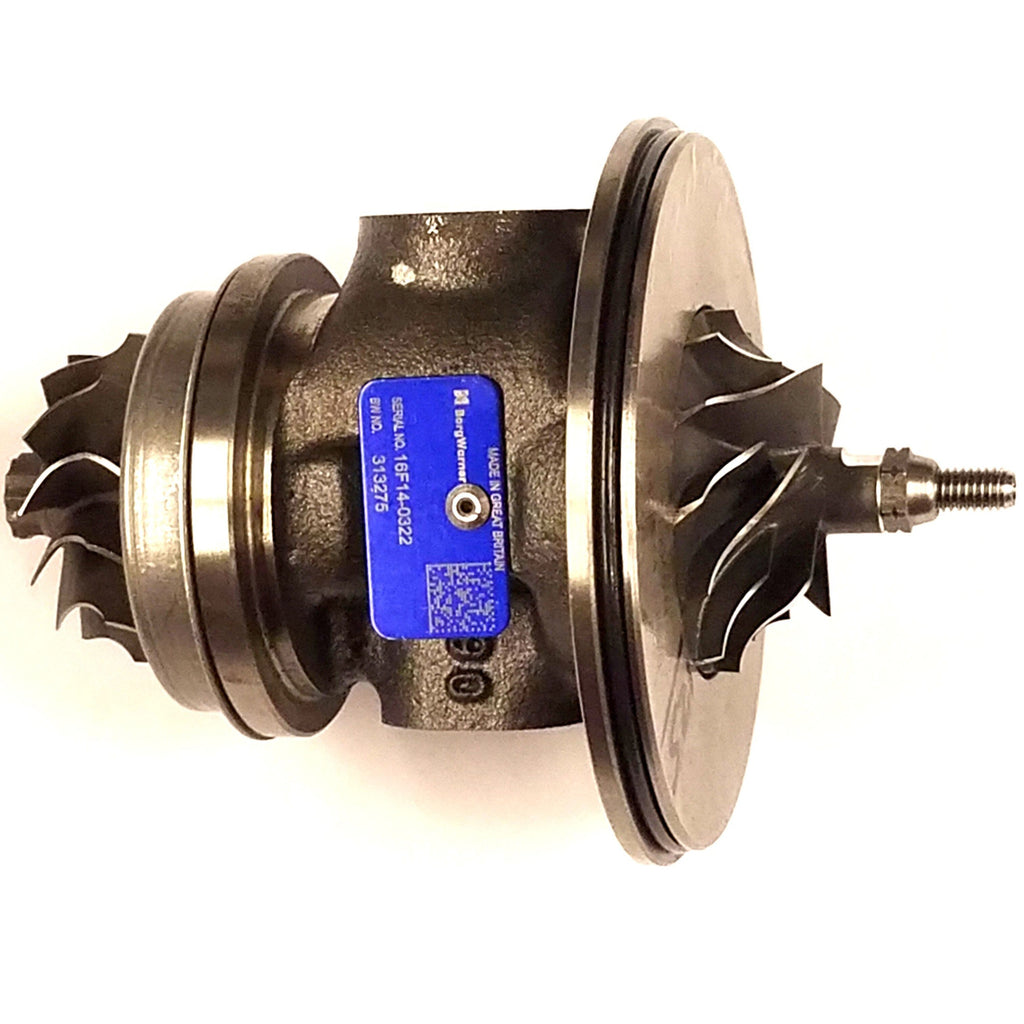

A CHRA cartridge is essentially the core module within a turbocharger that contains the rotating assembly—this includes the turbine and compressor wheels. It is designed to isolate these high-speed components in a compact, well-lubricated, and cooled environment, ensuring both efficiency and durability.

Historical Background

The evolution of CHRA designs has paralleled advancements in turbocharger technology. Early turbochargers featured simpler assemblies, but modern CHRA cartridges incorporate advanced materials and engineering techniques to meet the demands of contemporary engines.

Components of a CHRA Cartridge

Rotating Assembly Elements

• Turbine and Compressor Wheels: These are the primary moving parts that drive the turbocharger’s functionality. The turbine wheel is propelled by exhaust gases, while the compressor wheel forces more air into the engine.

Bearing Systems

• Ball Bearings or Journal Bearings: These systems support the high-speed rotation of the assembly, reducing friction and ensuring smooth operation.

Sealing and Lubrication

• Lubrication System and Seals: Proper lubrication is crucial to minimize wear and maintain performance, while seals prevent contamination and retain oil within the assembly.

Housing and Structural Elements

• Center Housing: This robust structure encases all the internal components, maintaining precise alignment and protecting the assembly under high temperatures and pressures.

How Does a CHRA Cartridge Work?

Operational Mechanics

The CHRA cartridge functions by securely housing the turbocharger’s rotating assembly. As exhaust gases spin the turbine, this rotational force is transferred through a shaft to the compressor, which then compresses incoming air. This sequence enhances the engine’s combustion process.

Airflow and Combustion

By efficiently compressing air, the CHRA cartridge allows for more oxygen to enter the combustion chamber. This improved airflow results in a more complete and powerful combustion, which translates into increased engine output.

Cooling and Lubrication Processes

Advanced CHRA designs integrate sophisticated cooling and lubrication systems. These systems manage heat generated by high-speed rotation and reduce friction, thereby extending the life of the turbocharger components and maintaining peak performance.

Advantages and Benefits of CHRA Cartridge Designs

Performance Enhancement

CHRA cartridges contribute to quicker spool times and a more responsive turbocharger, leading to improved acceleration and overall engine performance.

Efficiency Gains

By optimizing airflow and combustion, these cartridges help engines run more efficiently. This efficiency not only boosts performance but can also lead to better fuel economy.

Durability and Reliability

The robust construction and effective cooling/lubrication systems of CHRA cartridges ensure longer service life and reduced maintenance issues. Goldfarb Associates often highlights that the reliability of these systems is a key factor in modern engine design.

Compact and Modular Design

The modular nature of CHRA cartridges allows for easier integration into a variety of turbocharger setups, making them a versatile choice in both aftermarket and OEM applications.

Comparing CHRA Cartridges with Other Turbocharger Designs

Traditional turbochargers often feature simpler assemblies that may not isolate the rotating components as effectively. In contrast, CHRA cartridges provide superior cooling, lubrication, and structural support. While both designs aim to boost performance, CHRA cartridges generally offer enhanced efficiency and longevity, albeit sometimes at a higher initial cost.

Applications and Innovations

Modern Automotive Use

Today, CHRA cartridges are widely used in performance vehicles and high-efficiency engines alike. Their ability to maintain consistent performance under varying conditions makes them a staple in both racing and everyday automotive applications.

Technological Trends

Innovations continue to improve CHRA cartridge designs, incorporating advanced materials and precision engineering to further reduce turbo lag and improve overall reliability. These advancements ensure that modern turbochargers remain at the cutting edge of performance technology.

Conclusion

The CHRA cartridge is a fundamental component of modern turbocharger systems, offering enhanced performance, efficiency, and durability. By housing the rotating assembly in a controlled environment, it optimizes airflow and combustion while ensuring reliable operation under high-stress conditions. As noted by Goldfarb Associates, understanding and leveraging the benefits of CHRA cartridges can lead to significant improvements in engine performance and longevity. Whether you’re an automotive enthusiast or a professional in the field, integrating these insights can help drive better performance outcomes.

FAQs

What does CHRA stand for and what is its primary function?

CHRA stands for Center Housing Rotating Assembly. Its primary function is to house and protect the turbocharger’s rotating components, ensuring efficient airflow, cooling, and lubrication.

How does the CHRA cartridge improve turbocharger performance?

By securely encasing the rotating assembly and optimizing both cooling and lubrication, the CHRA cartridge enhances the turbocharger's responsiveness and overall efficiency, leading to better engine performance.

What are the key components found within a CHRA cartridge?

A CHRA cartridge typically includes the turbine and compressor wheels, a robust bearing system, advanced seals, and an integrated lubrication and cooling mechanism.

How does improved airflow from a CHRA cartridge benefit engine combustion?

Enhanced airflow leads to a more complete combustion process, resulting in increased power output and improved fuel efficiency.

Why is proper maintenance of the CHRA cartridge important?

Regular maintenance, including proper lubrication and timely inspections, is crucial to prevent wear and ensure the long-term reliability and performance of the turbocharger system, as advised by Goldfarb Associates.
