stainless steel 304 tube fittings & Types

Stainless steel 304 is a common grade of stainless steel that is widely used in various industries. It is known for its excellent corrosion resistance, high strength, and good formability. When it comes to tube fittings, stainless steel 304 is a popular choice due to its durability and compatibility with a wide range of applications.

Here are some common types of stainless steel 304 tube fittings:

1. Compression Fittings: Compression fittings are widely used in various industries for connecting and sealing tubes. They consist of a fitting body and a compression nut. When the nut is tightened, it compresses a ferrule onto the tube, creating a secure and leak-free connection.
2. Ferrule Fittings: Ferrule fittings, also known as double ferrule fittings, are commonly used in high-pressure applications. They have two ferrules—a front and a back—that provide a strong and reliable connection. The front ferrule forms a seal against the fitting body, while the back ferrule grips the tube, providing enhanced grip and sealing capabilities.
3. Flared Fittings: Flared fittings are used when a leak-free connection is required for high-pressure applications or where the tubing needs to be easily disconnected and reconnected. The tube end is flared to a specific angle, and the fitting has a matching cone-shaped seat. When the fitting nut is tightened, it compresses the flared end against the seat, creating a tight seal.
4. Butt Weld Fittings: Butt weld fittings are used for permanent, welded connections between tubes or pipes. They are welded directly to the end of the tube using a welding process, providing a strong and reliable joint. Butt weld fittings include elbows, tees, reducers, and other types of fittings used for changing direction or diameter of the tubing.

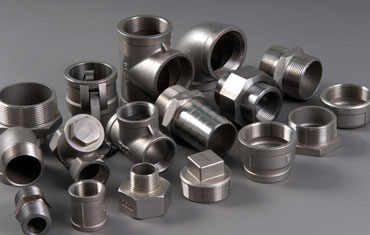

5. Threaded Fittings: Threaded fittings have internal or external threads that allow them to be screwed onto pipes or tubes. Stainless steel 304 threaded fittings are commonly used in low-pressure applications or where disassembly and reassembly are required. They include threaded elbows, tees, unions, nipples, and other types of fittings.

It's worth noting that these are just a few examples of stainless steel 304l tube fittings, and there may be other specialized fittings available based on specific industry requirements. When selecting tube fittings, it's essential to consider factors such as pressure rating, temperature range, compatibility with the fluid being transported, and the specific application's requirements.
