Nonstandard flanges in UAE

ASTM A105 flanges are forged carbon steel flanges widely used in piping systems for ambient and high-temperature applications. These flanges are known for their durability, strength, and versatility, making them a staple in industries such as oil and gas, petrochemicals, power generation, and shipbuilding.

Key Features of ASTM A105 Flanges

1. High Strength
2. ASTM A105 flanges provide excellent mechanical strength, enabling them to withstand high pressure and temperature environments.
3. Versatility
4. These flanges are compatible with a wide range of piping systems and are available in multiple types and sizes.
5. Cost-Effectiveness
6. With their widespread availability and ease of fabrication, ASTM A105 flanges offer a cost-effective solution for various industrial applications.
7. Weldability
8. Made from carbon steel, these flanges exhibit excellent weldability, making them easy to install and maintain.
9. Corrosion Resistance
10. While not inherently highly corrosion-resistant, ASTM A105 flanges can be surface-treated (e.g., galvanization or coating) to improve performance in corrosive environments.

Types of ASTM A105 Flanges

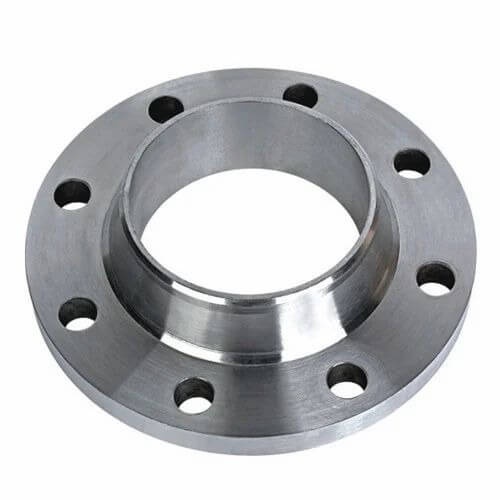

1. Weld Neck Flanges (WNRF)

• Designed for high-pressure systems.
• Feature a long hub that reduces stress concentration.

1. Slip-On Flanges (SORF)

• Easy to install and cost-effective.
• Suitable for low-pressure applications.

1. Blind Flanges

• Used to seal the ends of piping systems or pressure vessels.
• Essential for testing and maintenance purposes.

1. Socket Weld Flanges (SWRF)

• Ideal for small-diameter, high-pressure pipes.
• Provide a strong connection with one-sided welding.

1. Threaded Flanges

• Designed for applications where welding is not feasible.
• Compatible with threaded pipes.

1. Lap Joint Flanges

• Used with stub ends in systems requiring frequent disassembly.
• Reduce cost in low-pressure applications.

1. Ring-Type Joint (RTJ) Flanges

• Feature a groove for a metal ring gasket, ensuring a leak-proof seal in high-pressure environments.

Standards and Specifications

ASTM A105 flanges are manufactured to meet stringent global standards, ensuring quality and performance. Common standards include:

• Material Specification: ASTM A105
• Dimensional Standards:
• ASME B16.5 (up to 24 inches)
• ASME B16.47 (above 24 inches, Series A & B)
• EN 1092-1
• DIN Standards
• Pressure Ratings:
• Class 150 to Class 2500

Mechanical Properties

Property

Value

Tensile Strength

485 MPa (minimum)

Yield Strength

250 MPa (minimum)

Elongation

22% (minimum)

Hardness

187 HB (maximum)

Chemical Composition

Element

Percentage

Carbon (C)

0.35% (maximum)

Manganese (Mn)

0.60–1.05%

Phosphorus (P)

0.035% (maximum)

Sulfur (S)

0.040% (maximum)

Silicon (Si)

0.10–0.35%

Applications of ASTM A105 Flanges

1. Oil and Gas Industry

• Pipelines, separators, and wellhead equipment.

1. Petrochemical Industry

• Reactors, heat exchangers, and storage tanks.

1. Power Generation

• Steam and gas turbines, boilers, and heat recovery systems.

1. Marine Engineering

• Used in shipbuilding for fuel and water piping systems.

1. General Industrial Applications

• Process piping systems for various fluids and gases.

Manufacturing Process

The production of ASTM A105 flanges involves several critical steps to ensure compliance with standards:

1. Material Selection:
2. High-quality carbon steel billets are chosen for forging.
3. Forging:
4. The raw material is shaped into flange form through controlled heating and hammering.
5. Heat Treatment:
6. Normalizing, quenching, or tempering processes are applied to enhance mechanical properties.
7. Machining:
8. Precision machining ensures dimensional accuracy and smooth finishes.
9. Surface Treatment:
10. Optional treatments like galvanization or painting can be applied for enhanced corrosion resistance.
11. Testing:
12. Rigorous testing is conducted to ensure quality and performance.

Testing and Certification

ASTM A105 flanges undergo various tests to verify their suitability for industrial applications. These include:

• Hydrostatic Testing: Ensures the flange can withstand operational pressures.
• Ultrasonic Testing (UT): Detects internal flaws.
• Magnetic Particle Inspection (MPI): Identifies surface defects.
• Chemical and Mechanical Testing: Verifies compliance with ASTM A105 standards.

Manufacturers also provide Mill Test Certificates (MTC), confirming the flange’s material and mechanical properties.

Advantages of ASTM A105 Flanges

1. Durability: Long service life under demanding conditions.
2. Versatility: Available in various types, sizes, and pressure ratings.
3. Cost-Effectiveness: High performance at a reasonable price.
4. Customizability: Can be surface-treated or coated to meet specific application requirements.

Conclusion

ASTM A105 flanges are a versatile and reliable choice for industries requiring high-strength, durable flanges for ambient and high-temperature applications. Their adherence to global standards, combined with cost-effectiveness, makes them a preferred option across sectors like oil and gas, petrochemicals, and power generation.

To ensure optimal performance and safety, it is crucial to source ASTM A105 flanges from trusted manufacturers or suppliers.
