ASTM A105 flanges are integral components in various piping systems, widely recognized for their durability, reliability, and versatility. This article explores the key features, applications, and specifications of ASTM A105 flanges, providing valuable insights into their role in industrial and engineering projects.
What is ASTM A105?
ASTM A105 is a standard specification for carbon steel forgings used in piping components. It applies to flanges, fittings, valves, and similar parts used in high-pressure systems. These components are forged and heat-treated to ensure they meet stringent mechanical and chemical requirements.
Key Features of ASTM A105 Flanges
- Material Properties:
- Made from carbon steel.
- Offers excellent mechanical properties, including high tensile and yield strength.
- Suitable for high-temperature and high-pressure environments.
- Versatility:
- Compatible with various piping systems.
- Suitable for a wide range of industrial applications, including oil and gas, petrochemical, and power generation.
- Cost-Effective:
- Economical compared to alloy and stainless steel flanges.
- Provides excellent performance for its price.
- Ease of Fabrication:
- Forged structure ensures superior weldability and machinability.
Types of ASTM A105 Flanges
ASTM A105 flanges come in several types, catering to different piping needs:

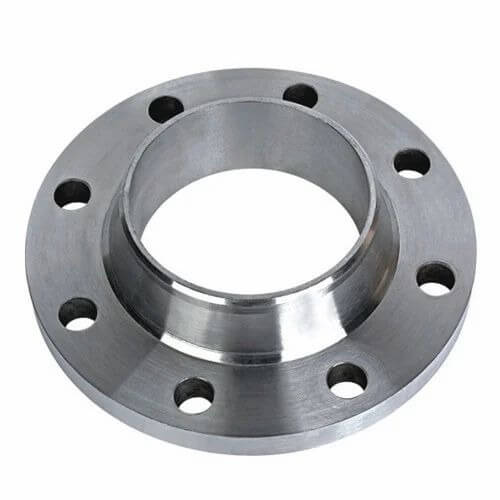

- Weld Neck Flanges: Designed for high-stress applications, offering a smooth transition between the flange and pipe.
- Slip-On Flanges: Easy to install and weld, suitable for low-pressure applications.
- Blind Flanges: Used to close the ends of piping systems or pressure vessels.
- Socket Weld Flanges: Ideal for small-diameter pipes in high-pressure systems.
- Threaded Flanges: Used in non-welding applications, suitable for low-pressure systems.
- Lap Joint Flanges: Utilized with stub ends for frequent disassembly.
- Ring Type Joint (RTJ) Flanges: Ensures a leak-proof seal for high-pressure and high-temperature environments.
Specifications of ASTM A105 Flanges
- Standards:
- ANSI/ASME B16.5
- ANSI/ASME B16.47 Series A & B
- MSS SP-44
- API 605
- Pressure Ratings:
- Available in classes 150, 300, 600, 900, 1500, and 2500.
- Dimensions:
- Sizes range from ½” NB to 48” NB.
- Chemical Composition:
- Carbon (C): Max 0.35%
- Manganese (Mn): 0.60-1.05%
- Phosphorus (P): Max 0.035%
- Sulfur (S): Max 0.040%
- Silicon (Si): 0.10-0.35%
- Mechanical Properties:
- Tensile Strength: Min 485 MPa
- Yield Strength: Min 250 MPa
- Elongation: 30% (min)
Applications of ASTM A105 Flanges
ASTM A105 flanges are used across a range of industries:
- Oil and Gas: High-pressure piping systems, drilling platforms, and refineries.
- Chemical Processing: Corrosive and high-temperature environments.
- Power Generation: Steam and gas turbines, heat exchangers, and pipelines.
- Water Treatment: Desalination plants and municipal water systems.
Manufacturing and Testing
- Production Techniques:
- Forging: Enhances the mechanical properties and structural integrity.
- Heat Treatment: Normalizing or annealing to meet specific mechanical standards.
- Quality Testing:
- Non-Destructive Testing (NDT): Ultrasonic, radiographic, and magnetic particle tests.
- Hydrostatic Testing: Ensures pressure-holding capacity.
- Dimensional Inspection: Verifies compliance with standard dimensions.
Advantages of ASTM A105 Flanges
- High strength and durability.
- Resistance to wear and tear under high-pressure conditions.
- Adaptable to various environments.
- Affordable and readily available.
Conclusion
ASTM A105 flanges are indispensable in numerous industrial applications, offering a combination of strength, reliability, and cost-effectiveness. Their versatility and adherence to international standards make them a preferred choice for engineers and project managers worldwide. Whether you’re working in the oil and gas sector or power generation, ASTM A105 flanges provide a robust solution to meet your piping needs.
