Ceiling Mount Angles and Heights Used in Multiplexes

Designing a projection setup in multiplexes is far more complex than a home theater or office installation. At XTEN-AV, we emphasize that understanding specifications like Throw Ratio, along with proper ceiling mount angles and heights, is critical to achieving a high-quality cinematic experience. Multiplexes must accommodate multiple rows of seating, varying screen sizes, and optimal sightlines while ensuring safety and aesthetic appeal.

In this blog, we will explore the principles of ceiling mount angles and heights in multiplexes, how throw ratio influences placement, and practical considerations for achieving the Perfect Projector Layout in commercial cinema environments.

Introduction

Ceiling-mounted projectors in multiplexes serve the dual purpose of delivering a clear, immersive image while remaining unobtrusive to viewers. Unlike residential installations, multiplex projectors must account for large distances, steep viewing angles, and multiple rows of seats. Factors such as ceiling height, projector tilt, and throw ratio play crucial roles in determining how the image will appear on the screen and how viewers experience it.

Properly planning the ceiling mount ensures consistent image quality, prevents shadows or obstructions, and aligns perfectly with the screen regardless of seating arrangements.

Understanding Throw Ratio in Multiplex Installations

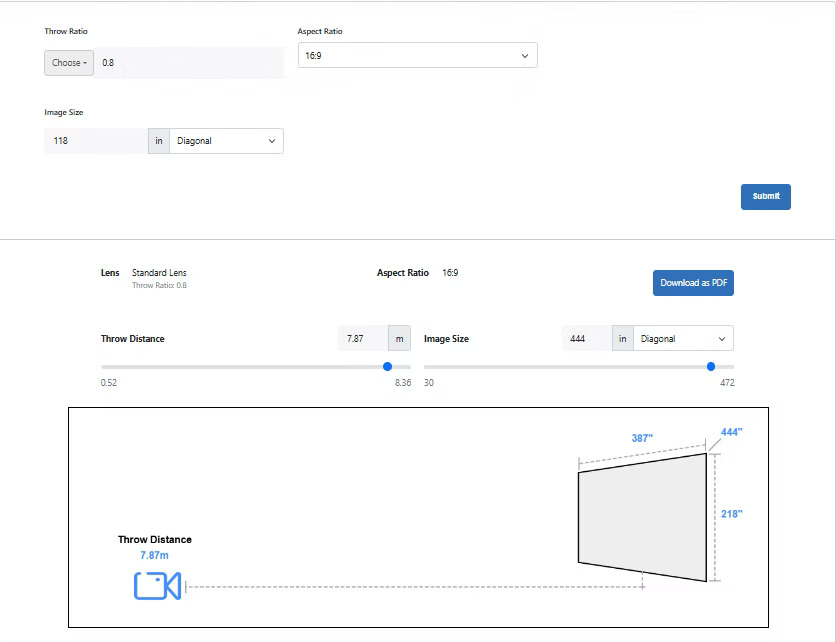

Throw Ratio is one of the key specifications that define how far the projector must be from the screen to produce a desired image width.

Expressed as Distance ÷ Image Width, it helps designers calculate optimal projector placement.
Example: A throw ratio of 2:1 requires the projector to be 2 feet away for every 1 foot of screen width.
Multiplex projectors often have adjustable zoom lenses to fine-tune throw distance and achieve precise alignment with large cinema screens.

Throw ratio impacts both ceiling mount height and angle, because the distance from projector to screen is much greater than in residential setups. Calculating throw ratio ensures that the projector can cover the entire screen without distortion or loss of brightness.

Ceiling Mount Heights

Ceiling height in multiplexes varies depending on theater size, screen dimensions, and seating layout. General guidelines include:

Standard Multiplex Halls: Ceiling heights typically range from 18 to 30 feet above the floor.
High-Capacity Auditoriums: May require heights of 35 feet or more to accommodate large screens and long throw distances.
Projector Clearance: The mount should allow sufficient space for ventilation and maintenance access while avoiding interference with lighting or sound equipment.

Higher ceilings allow projectors to achieve longer throw distances without obstructing the audience. They also provide flexibility for lens adjustments, including zoom and focus, to maintain image quality across all seats.

Ceiling Mount Angles

The angle at which a projector is mounted is equally important:

Vertical Tilt: Projectors must be tilted downward or upward to align the projected image with the screen. Excessive tilt can lead to keystone distortion, which reduces image clarity. Proper calculation of vertical angle ensures that the screen is fully covered.
Horizontal Alignment: The projector should be centered horizontally with the screen to prevent image skew or misalignment.
Tilt Adjustments for Row Elevation: Multiplex seating is usually tiered. Designers account for differences in eye level across rows to optimize viewing angles.

Correct mounting angles reduce the need for digital keystone correction, which can compromise image quality. Using physical tilt and alignment in combination with throw ratio calculations ensures a sharp, evenly illuminated image.

Impact of Throw Ratio on Mount Height and Angle

Throw ratio directly influences where projectors are mounted in multiplexes:

Short Throw Ratio Projectors: Require placement closer to the screen, which may be feasible only in smaller auditoriums. These setups reduce the need for extreme vertical tilt.
Standard Throw Ratio Projectors: Typically mounted mid-ceiling to balance throw distance and audience clearance.
Long Throw Ratio Projectors: Often mounted at high ceilings with downward tilt to cover large screens in auditoriums.

Proper calculation ensures that the projector’s throw ratio aligns with the ceiling height and angle, resulting in uniform brightness, sharp focus, and accurate image geometry.

Practical Considerations for Multiplex Installations

Screen Size and Aspect Ratio: Large screens require careful throw ratio calculation to ensure edge-to-edge coverage. Widescreen formats may require slight horizontal adjustments.
Maintenance Access: Projectors mounted high must allow safe access for lamp changes, cleaning, and focus adjustments.
Vibration and Stability: Ceiling mounts must be rigid to prevent image shake, especially in multiplexes where multiple projectors and equipment operate simultaneously.
Ventilation and Heat Management: High ceilings help dissipate heat, but projector placement must also ensure unobstructed airflow.
Tiered Seating Alignment: Vertical tilt should account for the angle difference between front and back rows, ensuring optimal viewing for all seats.

By factoring these elements, designers can create a professional multiplex setup that maintains image quality while providing safe and unobtrusive projector placement.

Example Multiplex Layout

Screen Width: 40 feet
Desired Projection Distance: 80 feet
Throw Ratio: 2:1
Ceiling Height: 25 feet
Vertical Tilt: 5-10 degrees downward
Horizontal Alignment: Centered with screen

This layout ensures the projected image fits the screen precisely, maintains focus across all rows, and minimizes distortion or shadows. Lens adjustments and minor tilt refinements allow fine-tuning without compromising the image.

Conclusion

Ceiling mount angles and heights in multiplexes are critical to achieving a high-quality cinematic experience. XTEN-AV emphasizes that Throw Ratio is central to planning projector placement, as it determines both distance and screen coverage. Proper consideration of ceiling height, vertical tilt, and horizontal alignment ensures uniform brightness, sharp focus, and minimal distortion across all seating rows.

By integrating throw ratio calculations with careful mount height and angle planning, multiplex designers can create theaters that deliver an immersive and comfortable viewing experience. Whether you are designing a small hall or a large cinema auditorium, understanding these principles ensures the Perfect Projector Layout and a professional, visually stunning setup.
