Understanding Water Column Imaging Nozzles Projection in 3D Digital Fountain Systems

Modern fountain installations increasingly rely on advanced nozzles and digital controls to create dynamic visual sequences. Among these technologies, water column imaging nozzles projection plays a critical role in shaping three-dimensional water forms that react to programmed movements. This guide explores how these nozzles operate, how they interpret digital commands, and how they influence the evolving landscape of Fountain Patterns used in public and commercial spaces. References to a musical fountain manufacturer & supplier are included only for technical context, not for promotion.

1. What Water Column Imaging Nozzles Projection Means in 3D Fountain Systems

The term water column imaging nozzles projection refers to the controlled creation of vertical or angled water columns that respond to real-time digital inputs. Instead of producing a fixed pattern, these nozzles adjust their trajectory, height, and timing based on a programmed sequence.

They form the backbone of 3D digital fountains by enabling:

• Rapid direction changes
• Precise vertical column formation
• Real-time interaction with lighting and sound

Compared to traditional Fountain Patterns, these nozzles allow deeper spatial expression and motion complexity.

2. How the Nozzles Interpret Digital Commands

3D digital fountains operate through a network of controllers that communicate with each nozzle individually. The system assigns instructions such as height, speed, and angle. Each nozzle responds by adjusting internal valves or flow mechanisms.

Key components include:

• Electromechanical actuators for motion
• Pressure modulation units
• Software-driven command pathways

A digital controller maps these outputs, resulting in precise water column imaging nozzles projection aligned with the fountain’s choreography.

3. Hydraulics Behind Image-Like Water Columns

For a water column to appear “imaged” or sculpted, several hydraulic principles must work in unison.

a. Pressure Stability

Fluctuations distort the water column’s geometry. Consistent pressure yields clean vertical lines.

b. Stream Coherence

Internal flow straighteners reduce turbulence, allowing columns to appear solid and uniform.

c. Flow Rate Coordination

In multi-nozzle systems, each water column must behave predictably. This often requires guidance from an experienced musical fountain manufacturer & supplier, especially for balancing flow across many nozzles.

These factors shape how the fountain interprets digital commands into coherent three-dimensional Fountain Patterns.

4. Spatial Design and Pattern Formation

Unlike fixed spray nozzles, imaging nozzles contribute to dynamic spatial compositions.

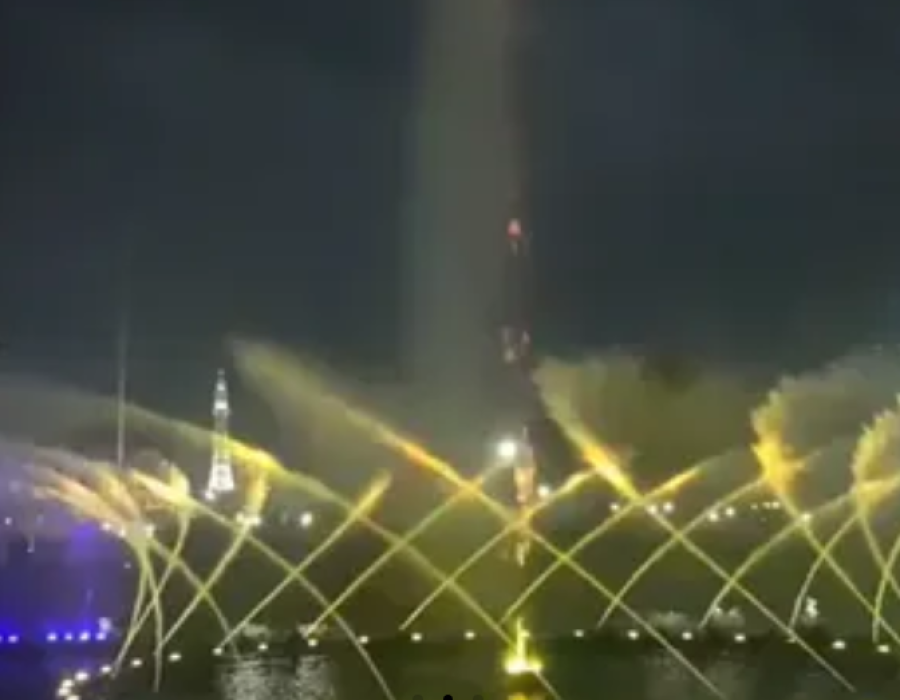

Examples of 3D spatial expressions include:

• Sequential rising columns
• Angular projection resembling geometric shapes
• Layered heights that build temporary water structures
• Wave-like patterns across grouped nozzles

Such formations expand the possibilities of Fountain Patterns beyond static arcs or sprays, making the fountain feel more like a digital installation than a traditional water feature.

5. Material and Durability Considerations

To respond to rapid movement and pressure changes, these nozzles are typically constructed from high-strength metals such as stainless steel. The material must resist:

• Rapid cycling
• Outdoor temperature fluctuations
• Constant mechanical adjustments

Durability ensures that water column imaging nozzles projection remains consistent even under demanding operating schedules.

6. Integration with Light, Sound, and Timing

3D digital fountains often synchronize water motion with soundtracks or lighting sequences. In such systems, the timing of each nozzle’s movement must be accurate to the millisecond.

The projection of water columns becomes more perceptible when paired with:

• Narrow-beam LED lighting
• Dynamic color transitions
• Rhythmic sequences that highlight movement

These integrations support the visual legibility of advanced Fountain Patterns in large public spaces.

Conclusion

The rise of water column imaging nozzles projection has transformed 3D digital fountains into highly adaptive visual systems. Their ability to produce sculpted water forms, respond accurately to digital inputs, and integrate with multimedia elements makes them essential tools for modern fountain designers. When combined with high-quality engineering and insights from a specialized musical fountain manufacturer & supplier, these nozzles help shape the next generation of expressive Fountain Patterns used across architectural environments.
