Before going to get your projects done, a brief knowledge is compulsory for all Silhouette Cameo users. I am writing blogs on different projects, but the first time I thought, why don’t I make a normal beginner’s guide to let them know the machine better? So, we will discuss the machine, like what it is and how you can perform simple tasks. Let’s see how to use Silhouette Cameo 4.

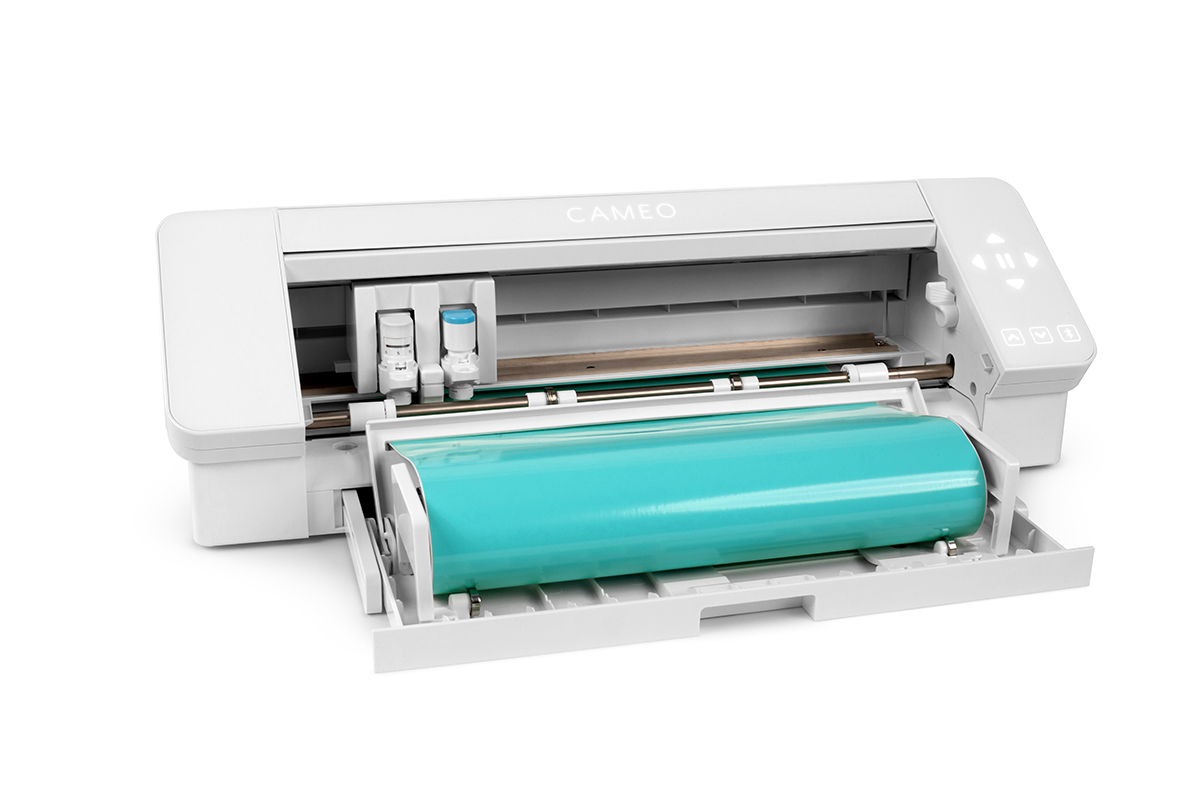

Silhouette Cameo 4 Machine Introduction
This vinyl-cutting machine runs via Silhouette Studio software and can cut a number of materials, including cardstock, balsa wood, felt, and leather. You can cut the materials using the Cameo 4’s smart cutting technology. Also, you can cut directly from a roll through a built-in roll feeder and cross-cutter. It runs with the Silhouette Studio software.
How To Download And Install Silhouette Studio?
Silhouette Studio is software that is used to run Silhouette Cameo machines. With the help of this software, you can perform specific cuts on your materials. To download the Silhouette studio, go to the Silhouette America website. The software is available in three different versions: basic, designer, and business. You can download the desirable version and upgrade it to a higher level if needed.
Compared to Cricut, Silhouette has one additional advantage you can use even without an internet connection because the Silhouette software is not web-based and is good for areas with poor networks.
What Blades Do Silhouette Cameo 4 Use?
Silhouette Cameo uses 4 different types of blades, and each blade can cut a variety of materials. For instance, auto blades came with the machine and were placed in the left carriage.
Here is the brief about Silhouette Cameo blades:
- Auto blades: They are used to cut cardstock, adhesive vinyl, and heat transfer vinyl.
- Kraft blade (3mm): They are used to cut thicker materials like leather, craft foam, and balsa wood.
- Rotatory blades: They are used to cut fabric and papers, e.g., crepe paper.
- Punch tool: It is used to mark the areas of cut design that need to be weeded.
How To Use Silhouette Cameo 4?
The Cameo 4 machine can cut materials up to 12″ wide, and the Cameo 4 pro version can cut up to 24″ wide. The machine has Bluetooth capability, and you can use this to set a wireless connection to your computer. This feature is useful when your machine and computer are on opposite sides. Otherwise, you have the option to connect it via a cord.
To use Silhouette Cameo 4, first, place your material on the cutting mat and fix it with the grid. Then, load the cutting mat into the Silhouette machine by putting it under the white rollers. Now, press the load button, and the machine will pull up the cutting mat.
Then, set up your file in the Silhouette Studio and ensure your lines are ready to cut. Select your material from the drop-down list. Once you select the materials, the blade settings will automatically update. The machine uses an auto blade you have to insert into the left-hand carriage, which will change the blade settings automatically from the drop-down menu.
Now, your design is ready to cut. Press the “Send” button at the bottom, and your design will start to cut. All the users should note always pressing the “Test” button before sending the design.
During the test cut, the Silhouette will cut a small triangle at the upper left corner of your material. Confirm if the test cut has the expected depth. If not, then manually adjust the settings in Silhouette Studio. When your blade starts getting dull, then you can adjust the blade manually in the software. You can alter the current settings and set your own new settings.
After cutting, press the unload button on the machine and release the mat. Now, you have successfully cut your material on the Silhouette Cameo 4 machine.
Conclusion
Silhouette Cameo 4 is an amazing lineup of Silhouette. It works with Silhouette Studio, which helps you to adjust settings to cut different materials. We discussed how to use Silhouette Cameo 4 shortly. But I hope it gave you an idea of using the machine. The best thing about Silhouette Cameo is that it can work without an internet connection and is ideal for areas with poor internet connection. It has four blades for efficiently cutting materials and is a Bluetooth-enabled machine that you can connect wirelessly to your computer.
The blade settings automatically update when you load the material into the machine. Or you can change the blade settings manually if it doesn’t work. Always take a test print before cutting to ensure the depth of cutting.
