Diodes are fundamental components in the field of electronics, known primarily for their ability to allow current to flow in one direction while blocking it in the opposite direction. One of the critical applications of diodes is their use as switches in various electronic circuits. In this article, Electrical Volt explores how diodes function as switches, their types, and practical applications in electronic circuits.
What is a Diode?

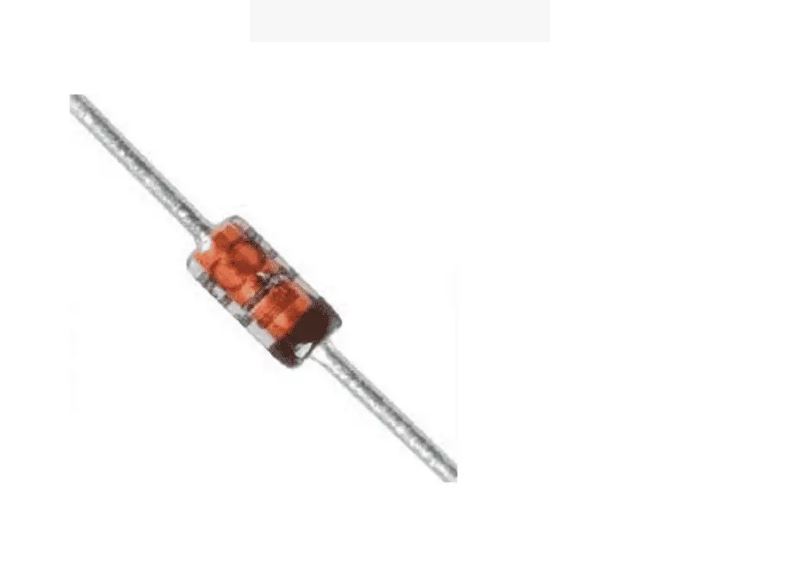

A Diode as a Switch is a semiconductor device that consists of two terminals: an anode and a cathode. It is designed to conduct electric current in one direction (forward bias) and block it in the reverse direction (reverse bias). This unidirectional property makes diodes essential for controlling the flow of current in electronic circuits.
How Does a Diode Function as a Switch?
A diode can function as a switch by exploiting its forward and reverse bias properties. When a diode is forward-biased, it allows current to flow through it, effectively acting as a closed switch. Conversely, when a diode is reverse-biased, it prevents current from flowing, acting as an open switch. This switching behavior can be harnessed in various electronic applications.
Forward Bias (Closed Switch)
When the anode is connected to a positive voltage relative to the cathode, the diode is forward-biased. In this state, the diode's internal resistance is low, allowing current to pass through. This condition is analogous to a closed switch in a circuit, enabling current flow.
Reverse Bias (Open Switch)
When the cathode is connected to a positive voltage relative to the anode, the diode is reverse-biased. In this state, the diode's internal resistance is high, blocking current flow. This condition is analogous to an open switch in a circuit, preventing current flow.
Types of Diodes Used as Switches
1. PN Junction Diodes
The most common type of Diode Switching Time used as a switch is the PN junction diode. It is widely used in basic switching applications due to its simplicity and effectiveness in controlling current flow.
2. Schottky Diodes
Schottky diodes are known for their low forward voltage drop and fast switching speed. These characteristics make them ideal for high-frequency switching applications, such as in power supplies and radio frequency (RF) circuits.
3. Zener Diodes
While Zener diodes are primarily used for voltage regulation, they can also function as switches in certain applications. They are designed to conduct in reverse bias when the voltage exceeds a specific threshold, making them useful in overvoltage protection circuits.
4. Light Emitting Diodes (LEDs)
LEDs can also function as indicators in switching circuits. They emit light when forward-biased, providing a visual indication of the switch's state. This application is common in various electronic devices and signaling systems.
Applications of Diodes as Switches
1. Rectifiers
One of the most common applications of diodes as switches is in rectifier circuits, which convert alternating current (AC) to direct current (DC). Diodes act as switches that only allow the positive or negative half-cycles of the AC signal to pass through, effectively converting it to a pulsating DC signal.
2. Clipping and Clamping Circuits
Diodes are used in clipping and clamping circuits to modify AC signals. In clipping circuits, diodes act as switches to remove portions of the waveform above or below a certain threshold. In clamping circuits, diodes shift the voltage level of the waveform, ensuring it stays within a specific range.
3. Voltage Multipliers
Voltage multiplier circuits, such as doublers and triplers, use diodes as switches to increase the amplitude of an input AC signal. By directing current flow in specific paths during different phases of the AC cycle, diodes help generate higher voltage outputs.
4. Logic Gates
In digital electronics, diodes are used to construct simple logic gates, such as AND, OR, and NOT gates. By acting as switches, diodes control the flow of current based on the input signals, enabling basic logical operations.
5. Signal Modulation and Demodulation
Diodes play a crucial role in signal modulation and demodulation circuits, such as in amplitude modulation (AM) and frequency modulation (FM) systems. By switching on and off in response to the input signal, diodes help encode and decode information for transmission and reception.
Advantages of Using Diodes as Switches
1. Simplicity
Diodes are simple and reliable components that are easy to implement in various circuits. Their straightforward operation makes them ideal for basic switching applications.
2. Low Power Consumption
Diodes generally consume low power, especially in reverse bias, where they effectively block current flow. This characteristic makes them suitable for low-power electronic devices.
3. Fast Switching Speed
Certain types of diodes, such as Schottky diodes, offer fast switching speeds, making them ideal for high-frequency applications. This ensures efficient performance in circuits requiring rapid switching.
4. Compact Size
Diodes are compact components that can be easily integrated into electronic circuits without occupying significant space. This makes them suitable for modern, miniaturized electronic devices.
Conclusion
Diodes play a vital role in electronic circuits by functioning as switches. Their ability to control current flow in one direction while blocking it in the opposite direction makes them indispensable in various applications, from rectifiers and logic gates to signal modulation and voltage multipliers. Understanding the operation and applications of Diode Switching Times can help engineers and hobbyists design more efficient and effective electronic systems. Stay tuned to Electrical Volt for more insights into the fascinating world of electronics.
