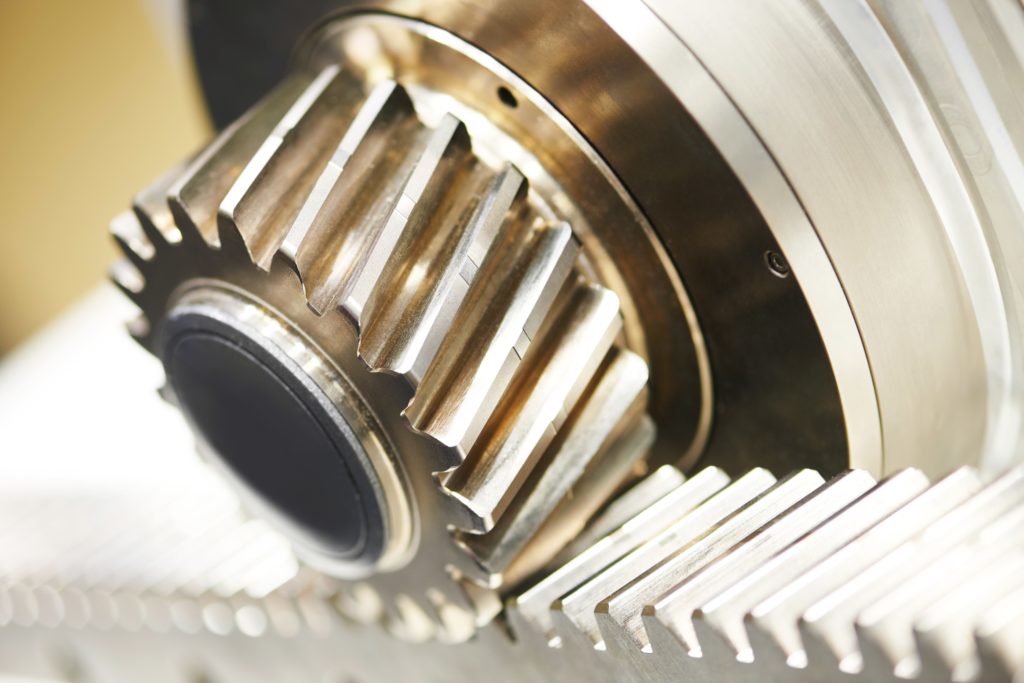

The precision rack and pinion is a mechanical system that converts rotational motion into linear motion. The toothed rack consists of a flat bar with straight teeth and a pinion gear with matching teeth. Gears engage with racks, and when the Precision Spur Gears rotates, the rack moves straight forward.
Uses Of Precision Rack And Pinion
- Rack and pinion systems are used in a wide range of industries due to their accuracy and efficiency. The following are some of the most common uses:
- CNC Machines: Rack and pinion systems are widely used in computer numerical control (CNC) machines for precise positioning and movement. High-quality machining is ensured by accurate and repeatable motion.
- Industrial Automation: Rack and pinion systems are used in automated production lines, conveyor systems, and robotic applications. Manufacturing processes become more efficient and productive with these systems since they allow equipment to move smoothly and precisely.
- Automotive Industry: Automobiles utilize rack-and-pinion steering systems to provide smooth and responsive steering. Moreover, they enhance the overall driving experience by offering precise control.
- Robotics: Precision rack and pinion systems are integral components of robotic arms and other robotic applications. Robots can perform tasks quickly and accurately with their assistance. They provide precise linear motion.
- Medical Equipment: Precision rack and pinion systems are used to control the movement of components in medical devices such as scanning machines. As a result, accurate positioning is ensured for accurate medical imaging or treatment.
FAQs On Precision Rack And Pinion
Q: Can precision rack and pinion systems handle heavy loads?
A: Precision rack and pinion systems are designed to handle heavy loads while maintaining accuracy and reliability. It is easy to transmit power under significant loads because of the toothed engagement between the rack and pinion.
Q: Are precision rack and pinion systems suitable for high-speed applications?
A: High-speed applications can benefit from precision rack and pinion systems. It is also important to consider lubrication, design aspects, and material selection when operating at high speeds.
Rack and pinion systems provide accurate and efficient linear motion in various industries. These systems provide precise positioning and smooth operation in CNC machines, robotics, and automotive steering. Modern machinery relies on precision rack and pinion systems for their compact design, high load capacity, and energy efficiency. Their longevity and reliability are ensured by regular maintenance and proper use, making them indispensable in various industries.
