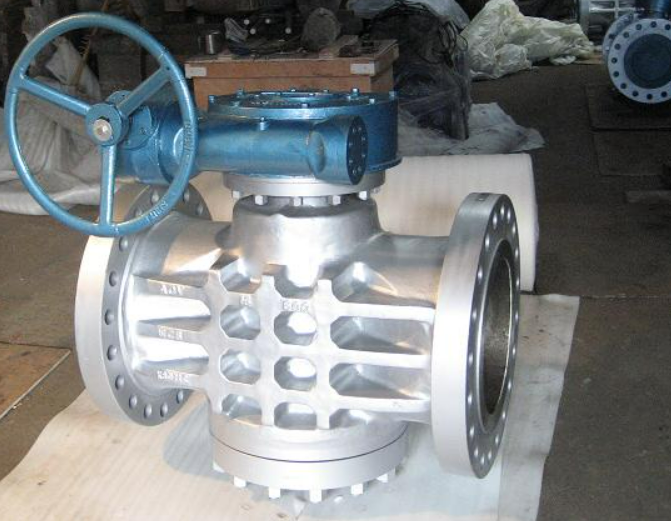

Sleeved plug valve manufacturer in India

SpecialityValve is one of the largest sleeved plug valve manufacturer in India. A plug valve is the type of valve which is made up of conical or cylindrical tapered plugs that can control the flow of the medium by rotating inside the valve. These valves are used for a full flow system that is either fully open or fully closed. A sleeved plug valve is a quarter-turn non lubricated valve.

We serve plug valves in carbon steel, stainless steel, iron, and duplex steel. They all are very reliable for your industry needs. Our plug valve is appropriate for low steam pressure and oil/gas/water media. Our plug valve is a very good solution for any environment.

Plug valves have been employed in a wide range of fluid services. Their efficacy in slurry applications is good. They serve as an on-off stop valve in bubble-tight services. They are employed in a variety of applications, including vacuum to high pressure, food processing, nonabrasive slurry, gaseous & vapour services, natural gas & oil piping systems, and vacuum. They work well for diverting services, on-off valves, and mild throttles. Plug valves were initially intended to take the place of gate valves because, in contrast to a gate valve, they may be opened and closed against flow with a quarter-turn motion.

Typically, lower pressure lines are fitted with these plug valves. The body cavity of these valves has an elastomeric sleeve or body liner inserted. The polished, tapered plug functions as a wedge to force the sleeve against the body. The friction between the plug and the body is therefore lessened by the sleeve.

What is a plug valve?

A quarter-turn rotational motion manual valve is known as a plug valve. It allows or prevents straight-through flow through the body by using a cylindrical or tapered plug (plug-shaped disc). Plug valves provide a straight path through the ports, allowing fluid to flow through the opening plug with the least amount of turbulence possible. The flow can be totally open or fully closed in either direction.

Plug Valve Working Principle:

A plug inserts into a body of a plug valve that has a tapered or parallel seating. The position of the port, which is a part of the plug's construction, determines how much of the valve may open. The apertures in the valve body through which fluid can enter or exit are known as ports. The fluid flow is completely opened or closed by a 90-degree stopper. Ball valves are more effective than plug valves, which can only be fully open or closed.

Flow through the valve resumes when the opening in the plug is parallel to the intake and outlet ports. Through the smaller area of the plug port, there is a pressure drop. The pressure drop is minimal with a full-area cylindrical plug, though.

Plug Valve is used in many industries like:

·     Mining

·     Cement

·     Water treatment

·     Oil refinery

·     Industrial water flow

Types of Plug Valve:

·     Lubricated Plug Valve

·     Non-Lubricated Plug Valve

·     Jacketed Plug Valve

·     Eccentric Plug Valve

·     Twin Seal Plug Valve

·     Lift Plug Valve

·     Orbit Plug Valve

Advantages of Plug Valve:

·     It has few parts and a very simple design.

·     It provides leak-tight service.

·     Quick to open or close.

·     It can be repaired or cleaned without removing the valve body from the system.

Description:

·     Material: Duplex Steel (F51, F53, 4A, 5A), F11, F22, LF2, F304, F304L, F316, F316L.

·     Class: 150 to 2500

·     Size: ½” to 24”

·     Ends: Flanged, Threaded, Buttweld, Socket weld

·     Nominal pressure: PN10 TO PN450

·     Operations: Handwheel operated, Pneumatic Actuator, Electric Actuator, Lever

Visit: https://www.specialityvalve.com/product-category/twin-seal-plug-valve/

Non Lubricated Plug Valve Manufacturer in India

Specialityvalve is the most trusted Non Lubricated Plug Valve Manufacturer in India. Specialityvalve focuses on customer satisfaction and tries to deliver the best quality. Non lubricated plug valve is a valve in which lubrication is not there. These valves are used in low pressure conditions. These valves can corrode easily and can catch dust due to dryness because of the absence of a lubricant. These valves can be manufactured with different types of materials such as ductile iron, cast iron etc.

Plug valve: A plug valve is the type of valve which is made up of conical or cylindrical tapered plugs that can control the flow of the medium by rotating inside the valve. These valves are used for a full flow system that is either fully open or fully closed.

A quarter-turn rotational motion manual valve is known as a plug valve. It allows or prevents straight-through flow through the body by using a cylindrical or tapered plug (plug-shaped disc). Plug valves provide a straight path through the ports, allowing fluid to flow through the opening plug with the least amount of turbulence possible. The flow can be totally open or fully closed in either direction.

Plug Valve Working Principle:

A plug inserts into a body of a plug valve that has a tapered or parallel seating. The position of the port, which is a part of the plug's construction, determines how much of the valve may open. The apertures in the valve body through which fluid can enter or exit are known as ports. The fluid flow is completely opened or closed by a 90-degree stopper. Ball valves are more effective than plug valves, which can only be fully open or closed.

Flow through the valve resumes when the opening in the plug is parallel to the intake and outlet ports. Through the smaller area of the plug port, there is a pressure drop. The pressure drop is minimal with a full-area cylindrical plug, though.

Advantages of Non Lubricated Plug Valve:

·     Requires less maintenance.

·     Has many applications.

·     Has a longer life compared to other valves.

Industries where Non Lubricated Plug Valve is used:

·     Chemical industry

·     Petroleum industry

·     Chemical fertilizer industry

·     Electric industry

Description:

Material: Duplex Steel (F51, F53, 4A, 5A),F11, F22, LF2, F304, F304L, F316, F316L.

Class: 150 to 2500

Pressure: PN10 to PN420

Ends: Flanged, Threaded, Butt weld, Socket weld

Size: ½’’ to 16’’

Operation: Handwheel operated, Pneumatic Actuator, Electric Actuator, Lever

Specialityvalve manufactures its products with the latest technology. You can visit the link below to know more about the product .

Visit : https://www.specialityvalve.com/product-category/non-lubricated-sleeved-plug-valve/
