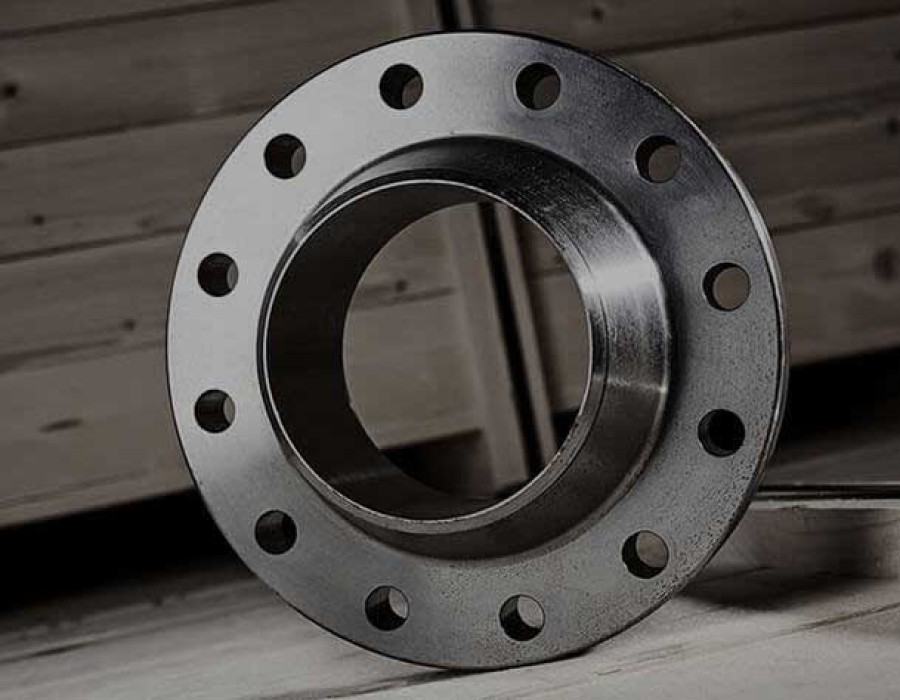

ASTM A105 Carbon Steel Flanges

ASTM A105 is a standard specification for carbon steel forgings used in piping applications. This specification covers forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. Among the components included are flanges, which are crucial in connecting pipes, valves, pumps, and other equipment to form a piping system. ASTM A105 carbon steel flanges are known for their durability, strength, and cost-effectiveness, making them a popular choice in various industries.

Properties and Specifications

ASTM A105 carbon steel flanges are designed to handle high-pressure and high-temperature applications. They are typically manufactured using open die, closed die, and ring rolling methods. Here are some key properties and specifications:

Material Composition:  ASTM A105 carbon steel consists of a mix of iron, carbon (up to 0.35%), manganese (0.60-1.05%), phosphorus (up to 0.035%), sulfur (up to 0.040%), and silicon (0.10-0.35%).

Mechanical Properties:  The steel must have a minimum tensile strength of 70,000 psi (485 MPa) and a minimum yield strength of 36,000 psi (250 MPa). It also has good ductility and toughness.

Heat Treatment:  These flanges can be supplied in a normalized, normalized and tempered, or quenched and tempered condition depending on the required mechanical properties.

Applications ASTM A105 carbon steel :

ASTM A105 carbon steel flanges material are widely used in various industries due to their versatility and reliability. Some common applications include:

Oil and Gas Industry:

For connecting pipes and equipment in drilling operations, refineries, and pipelines.

Petrochemical Industry:

Used in chemical processing plants where durability under high temperatures and pressures is essential.

Power Plants:

Essential in systems that transport steam and water at high temperatures and pressures.

Construction:

In building infrastructure, particularly in plumbing and HVAC systems.

Types of ASTM A105 Carbon Steel Flanges:

There are several types of flanges manufactured under the ASTM A105n specification, each serving different purposes and fitting various design requirements:

Weld Neck Flanges:  These flanges are designed to be welded to the piping system. They have a long neck that provides reinforcement in high-pressure applications.

Slip-On Flanges: These are slipped over the pipe and welded both inside and outside to provide sufficient strength and prevent leakage. They are easier to align and are preferred in low-pressure applications.

Blind Flanges: Used to close the end of a piping system, effectively sealing off a section of pipe.

Socket Weld Flanges: Similar to slip-on flanges, but the pipe is inserted into a socket and then fillet welded. These are used for small-sized high-pressure pipes.

Threaded Flanges: These flanges are screwed onto pipes with external threads, making them ideal for low-pressure and non-critical applications where welding is not feasible.

Benefits astm a105 flange:

Strength and Durability:  ASTM A105 carbon steel flanges can withstand high pressure and temperature, ensuring long-term performance.

Cost-Effective:  Carbon steel is more affordable compared to other materials like stainless steel or alloy steel.

Versatility:  Suitable for a wide range of applications across various industries.

Conclusion

ASTM A105 carbon steel flanges are an essential component in the  infrastructure of many industrial systems. Their mechanical properties, combined with cost-effectiveness and versatility, make them an ideal choice for numerous applications. Understanding the specifications, types, and benefits of these flanges helps in selecting the right component for your specific needs.
