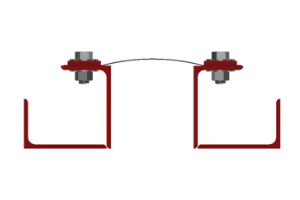

Fabric Expansion Joints utilize a composite fabric material as the flexible element of the expansion joint. They are typically used in low pressure ducting applications to compensate for misalignment, vibration and thermal growth. Fabric expansion joints can be designed with composite fabric with integral insulating layers or separate insulation pillows to handle temperatures in excess of 1000˚F.
Fabric Expansion joints can be used to compensate for thermal growth in ducting and misalignment without the spring loads typically associated with metal expansion joints. Fabric expansion joints can also absorb large lateral movements or misalignments. Additional components, like flow liners, insulation blankets and accumulation barriers can be added to the fabric expansion joint depending on the application and service.
BSI Therma-Joint Flexible Expansion Joints – for high temperature applications like Turbine Exhaust.
Standard Construction: Layered high Temperature fiberglass cloth, stainless foil and stainless steel mesh stitched together to form a unitized insulating expansion joint. Click here to know more : Fabric Expansion Joints
