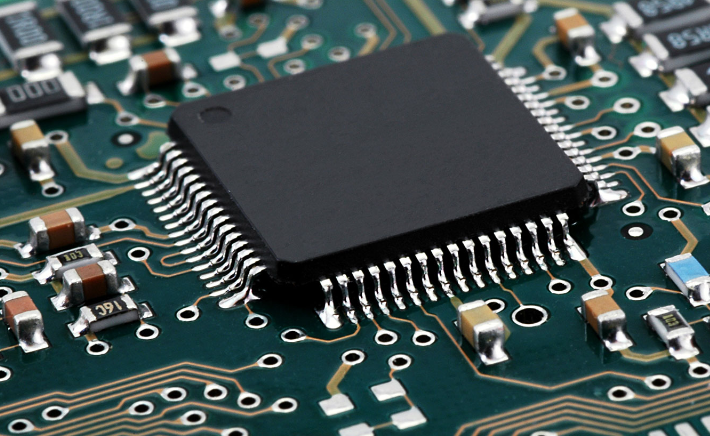

Integrated circuits, or ICs, are the backbone of modern electronics. Found in everything from smartphones to cars and even in kitchen appliances, these tiny semiconductor chips perform a multitude of complex tasks. But how are these intricate micro-devices actually made?
The Foundation: Silicon Wafer Production
Integrated circuits begin their journey in the form of sand, specifically high-purity silicon dioxide. This sand undergoes a refining process to extract silicon, which is then melted and crystallized into large cylinders called ingots. These silicon ingots are sliced into thin, round wafers—commonly 200mm to 300mm in diameter—using precision diamond saws.
Purity and Perfection in Wafers
The wafers must be nearly flawless for IC production. Even the tiniest imperfection can compromise an entire batch. After slicing, each wafer is polished to a mirror-like finish to remove microscopic damage. This flat, spotless surface provides the perfect canvas for building complex circuitry.
Designing the Circuit Blueprint
The next stage is circuit design. Engineers use specialized software to create an intricate blueprint of the IC layout. These designs can involve billions of transistors and require rigorous simulation and testing before moving forward.
Photomasks: Projecting the Design
From the finalized layout, photomasks are created. A photomask is a plate made of glass or quartz with opaque patterns that represent different circuit layers. These masks are used to project the circuit design onto the wafer using light in a process known as photolithography.
Photolithography: Printing at the Nanoscale
Photolithography is the heart of IC fabrication. It allows manufacturers to transfer the complex circuit designs onto the silicon wafer with microscopic precision. A light-sensitive chemical called photoresist is applied to the wafer, and ultraviolet (UV) light is projected through the photomask.
Exposing and Developing the Pattern
The exposed parts of the photoresist undergo a chemical change. Depending on the type of photoresist—positive or negative—the affected areas will either remain or be washed away during development. This creates a patterned photoresist layer that acts like a stencil for subsequent processes.
Etching and Layer Formation
After patterning, the wafer undergoes etching. In dry or plasma etching, a high-energy gas reacts with the exposed silicon, removing it to create tiny grooves or holes. Alternatively, wet etching uses liquid chemicals for the same purpose. These etched patterns form the foundation of various circuit layers.
Layer by Layer: Building the IC Structure
Integrated circuits are built in layers, with each layer adding more complexity to the chip. These layers can consist of different materials—conductors, insulators, and semiconductors—deposited one after the other with extreme precision.
Ion Implantation: Tuning Electrical Properties
Ion implantation is used to alter the electrical characteristics of specific regions on the wafer. High-energy ions are shot into the wafer to change the conductivity of selected areas. This process allows precise control over transistor behavior and other electronic functions.
Deposition Techniques for Layer Building
To add insulating or conductive materials, manufacturers use techniques like Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD). These methods ensure uniform material coating even on the wafer’s tiny features, maintaining electrical integrity.
Metal Interconnects: Wiring the Circuit
Once the transistors and other components are in place, they need to be connected. This is done using metal interconnects, which form the wiring system of the chip. These metal lines, typically made from copper or aluminum, are also built in layers and insulated from one another.
Planarization: Keeping It Flat
After several layers, the wafer surface becomes uneven. Chemical Mechanical Planarization (CMP) is used to polish the surface flat again before additional layers are added. This ensures that each new layer has a smooth, reliable foundation.
Vias and Contacts
To link different layers together, vertical pathways called vias are created. These are tiny holes drilled through insulating layers and filled with metal, allowing electrical signals to pass between layers efficiently.
Testing and Dicing: Separating the Good from the Bad
With all layers completed, the wafer undergoes electrical testing to identify functioning ICs. Automated test systems probe each chip on the wafer to check for defects. Chips that fail the test are marked and discarded.
Dicing the Wafer
The wafer is then cut into individual dies—each die being a separate IC. This process is called dicing and is performed using ultra-fine diamond blades or laser techniques. The goal is to slice cleanly without damaging nearby chips.
Die Attach and Wire Bonding
Each working die is attached to a package base, and fine gold or copper wires connect the chip to the package leads. This step is essential for the chip to interface with external devices or circuit boards.
Packaging: Protecting the Chip
Packaging is more than just a container—it’s a crucial part of the chip’s performance and durability. Packages protect the die from environmental damage, provide a medium for electrical connections, and help dissipate heat.
Types of IC Packages
Depending on the application, ICs can be housed in different package types, from traditional Dual In-line Packages (DIP) to more compact Ball Grid Arrays (BGA). The choice affects size, thermal efficiency, and electrical performance.
Final Testing and Quality Assurance
After packaging, the ICs undergo another round of rigorous testing. This includes temperature and stress tests to ensure long-term reliability. Only after passing all these checks are the chips ready for shipment.
The End of the Line: Distribution and Application
Once tested and packaged, the integrated circuits are ready to be sent out to manufacturers around the world. These chips find their way into computers, cars, medical devices, smartphones, and countless other technologies that define our modern lifestyle.
Scaling and Moore’s Law
The production of ICs continues to evolve with the demand for smaller, faster, and more efficient chips. Moore’s Law, which predicted the doubling of transistors every two years, has driven innovation in lithography and fabrication techniques. While physical limits loom, new materials and 3D stacking methods are keeping the momentum alive.
Conclusion
From grains of sand to high-tech components powering our digital world, the production of integrated circuits is a marvel of modern engineering. It’s a complex symphony of physics, chemistry, and computer science—executed with atomic-level precision to deliver the beating heart of technology. As innovations continue to shrink the scale and enhance capabilities, IC production remains at the forefront of what makes our connected world possible.
