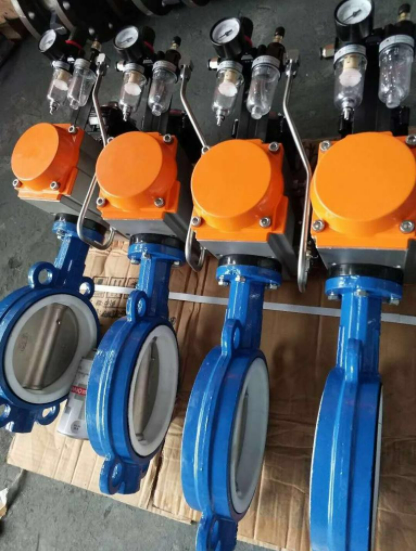

Electric Actuated Butterfly Valve manufacturer in USA

SVR Global is one of the leading Electric Actuated Butterfly Valve manufacturer in USA. This valve is composed of electric actuator and sanitary butterfly valve that’s why known as Electric Actuated Butterfly Valve. With help of electric actuator the development of butterfly valve is rised to the next level. The electric actuator device drives the valve stem, which results in the 90 degree rotation of butterfly plate to achieve the opening and closing of the valve.

The energy source for this valve is electric power. This electric power leads to the operation of valve place to achieve opening and closing of the valve and connecting or shutting-off the fluid. Electric actuator is divided into switch type and regulation type.  The switch type butterfly valve plays the role of switching the flow while regulated type butterfly valve plays the role of regulating the flow. Regulating type valve can accurately regulate the flow of fluid to one thousands degree. The main components of the electric actuated butterfly valve is the body, disc, stem, and seal. The fluid can pass through the valve because of the disc there and the disc is joined to the rod in this valve.

Electric Actuated Butterfly Valve is used in industries like:

·      Oil & gas industry

·      Energy industry

·      Chemical industry

·      LNG & LPG industry

·      Petrochemical industry

Types of Butterfly valve:

·      Zero offset Butterfly Valve

·      Double offset Butterfly Valve

·      Triple offset Butterfly Valve

·      Metal seated Butterfly Valve

Advantages of Electric Actuated Butterfly Valve:

·      It can provide a decent seal when it is depressed which avoid any contact between fluid and valve body

·      It has sturdy and robust manufacturing

·      These are premium quality valves

·      Precision cut, hardened steel gear for longer life

·      The performance is really clever of this valve

Description:

Body Material: Cast iron, Ductile iron, Aluminum stainless steel, CF8, CF8M, CF3M, Stainless steel (CF3M, CF3, CF8M), Nylon coated ductile iron, Aluminum bronze, Double stainless steel, 2507, 1.4529.

Class: 150 to 300

Pressure: PN6 to PN25

Size: 2” to 72”

End: Flanged, Wafer, Lug

Operation: Electric actuated

Electric actuator details-

·      Torque – 3 – 9 nm

·      Operating pressure- 8 Bar

·      Voltage- 220, 230, 240, 380, 400, 440

·      Frequency {50, 60 Hz}

·      Port Connection-NPT1.4”

·       Mounting Base-ISO5211

·      Temperature--20°C - +80°C

Visit: https://svrglobal.net/products/electric-actuated-butterfly-valve/

Pneumatic Actuated Butterfly Valve manufacturer in USA

SVR Global is the most reputed and prominent Pneumatic Actuated Butterfly Valve manufacturer in USA.  Pneumatic actuated butterfly valves are quarter-turn rotational valves and they are used to prevent, control, or start the flow of medium through systems. These valves are ideal for managing huge quantities of fluid or gases at low pressure.

A pneumatic actuated butterfly valve is a device that converts compressed gas energy into mechanical motion. A pneumatic actuated butterfly valve uses pressurized air or gas to convert energy into linear or rotational motion. They are very efficient, cost-effective, and safe. They are especially used to open and shut the valve. They look like a huge circle. This is a type of valve that is used to control or isolate fluid flow.

Working of Pneumatic Actuated Butterfly Valve:

We must first examine the fundamental functionality of a butterfly valve in order to comprehend how this sort of valve functions. A butterfly valve should ideally have a disc in the middle of a stem and pipe. The stem is attached to an actuator or a handle (for manually operated valves) (for automatically actuated valves). In this instance, the valve's stem will be attached to a pneumatic actuator, which uses pressurised air to move a piston or a diaphragm to either close or open the valve.

When the valve is closed, the disc is held firmly by a valve seat and rests perpendicular to the fluid flow. Additionally, the stem is sealed with an O-ring to avoid leaks and provide a snug but flexible fit. The disc moves to a position parallel to the fluid flow when the pneumatic actuator rotates the stem at a 90-degree angle. The flow becomes proportionate or throttled when the stem is partially rotated, and the valve can be used to modulate services.

Pneumatic Actuated Butterfly Valve is used in industries like:

·      Chemical industry

·      Mining industry

·      Petroleum industry

Types of Pneumatic Actuated Butterfly Valve:

·      Wafer-style butterfly valve

·      Lug-style butterfly valve

·      Flanged butterfly valve

Advantages of Pneumatic Actuated Butterfly Valve:

·      They are lightweight and compact

·      They are more secure

·      There starting and closing principle is very simple

·      They have the lower installation cost

Description:

Body Material: Cast iron, Ductile iron, Stainless steel (SS316, SS304, CF8), Carbon steel (WCB, WCC, LCB, LCC, WC6, LF2, WC9), Duplex steel (F51, F53, 5A, 6A).

Class: 150 to 300

Pressure: PN10 to PN40

Size: 2” to 72”

Connection type: Flanged, Lug type, Wafer type

Disc: CF8M, SS316L, CF8, Cast iron, Carbon steel, Ductile iron

Operation: Pneumatic actuated

Pneumatic Actuator details-

·      Torque – 3 – 9000 nm

·      Operating pressure- 8 Bar

·      Port Connection-NPT1.4”

·      Mounting Base-ISO5211

·      Temperature--20°C - +80°C

Visit: https://svrglobal.net/products/pneumatic-actuated-butterfly-valve/
