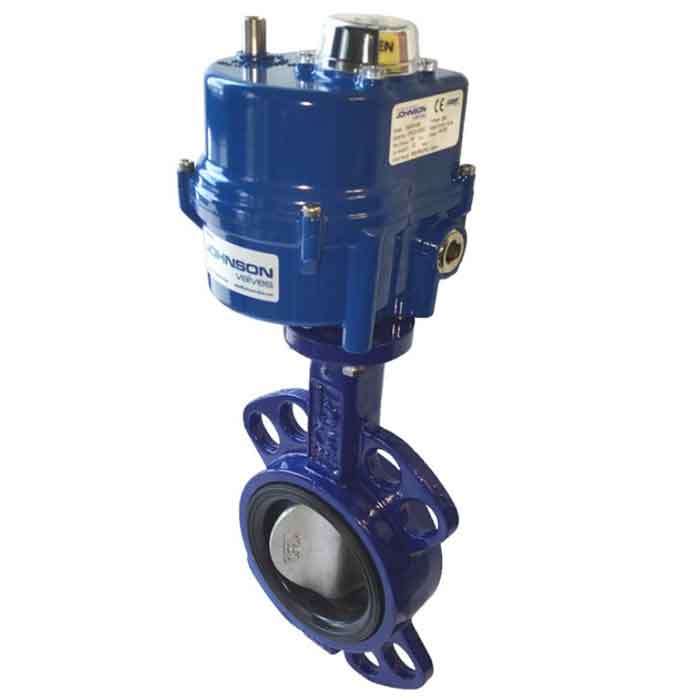

SVR Global is one of the leading Electric Actuated Butterfly Valve manufacturer in USA. This valve is composed of electric actuator and sanitary butterfly valve that’s why known as Electric Actuated Butterfly Valve. With help of electric actuator the development of butterfly valve is rised to the next level. The electric actuator device drives the valve stem, which results in the 90 degree rotation of butterfly plate to achieve the opening and closing of the valve.
The energy source for this valve is electric power. This electric power leads to the operation of valve place to achieve opening and closing of the valve and connecting or shutting-off the fluid. Electric actuator is divided into switch type and regulation type. The switch type butterfly valve plays the role of switching the flow while regulated type butterfly valve plays the role of regulating the flow. Regulating type valve can accurately regulate the flow of fluid to one thousands degree. The main components of the electric actuated butterfly valve is the body, disc, stem, and seal. The fluid can pass through the valve because of the disc there and the disc is joined to the rod in this valve.
Electric Actuated Butterfly Valve is used in industries like:
· Oil & gas industry
· Energy industry
· Chemical industry
· LNG & LPG industry
· Petrochemical industry
Types of Butterfly valve:
· Zero offset Butterfly Valve
· Double offset Butterfly Valve
· Triple offset Butterfly Valve
· Metal seated Butterfly Valve
Advantages of Electric Actuated Butterfly Valve:
· It can provide a decent seal when it is depressed which avoid any contact between fluid and valve body
· It has sturdy and robust manufacturing
· These are premium quality valves
· Precision cut, hardened steel gear for longer life
· The performance is really clever of this valve
Description:
Body Material: Cast iron, Ductile iron, Aluminum stainless steel, CF8, CF8M, CF3M, Stainless steel (CF3M, CF3, CF8M), Nylon coated ductile iron, Aluminum bronze, Double stainless steel, 2507, 1.4529.
Class: 150 to 300
Pressure: PN6 to PN25
Size: 2” to 72”
End: Flanged, Wafer, Lug
Operation: Electric actuated
Electric actuator details-
· Torque – 3 – 9 nm
· Operating pressure- 8 Bar
· Port Connection-NPT1.4”
· Mounting Base-ISO5211
· Temperature--20°C - +80°C
Visit: https://svrglobal.net/products/electric-actuated-butterfly-valve/
