CI/CD for Software Development

Advanced CI/CD for Modern Software Development

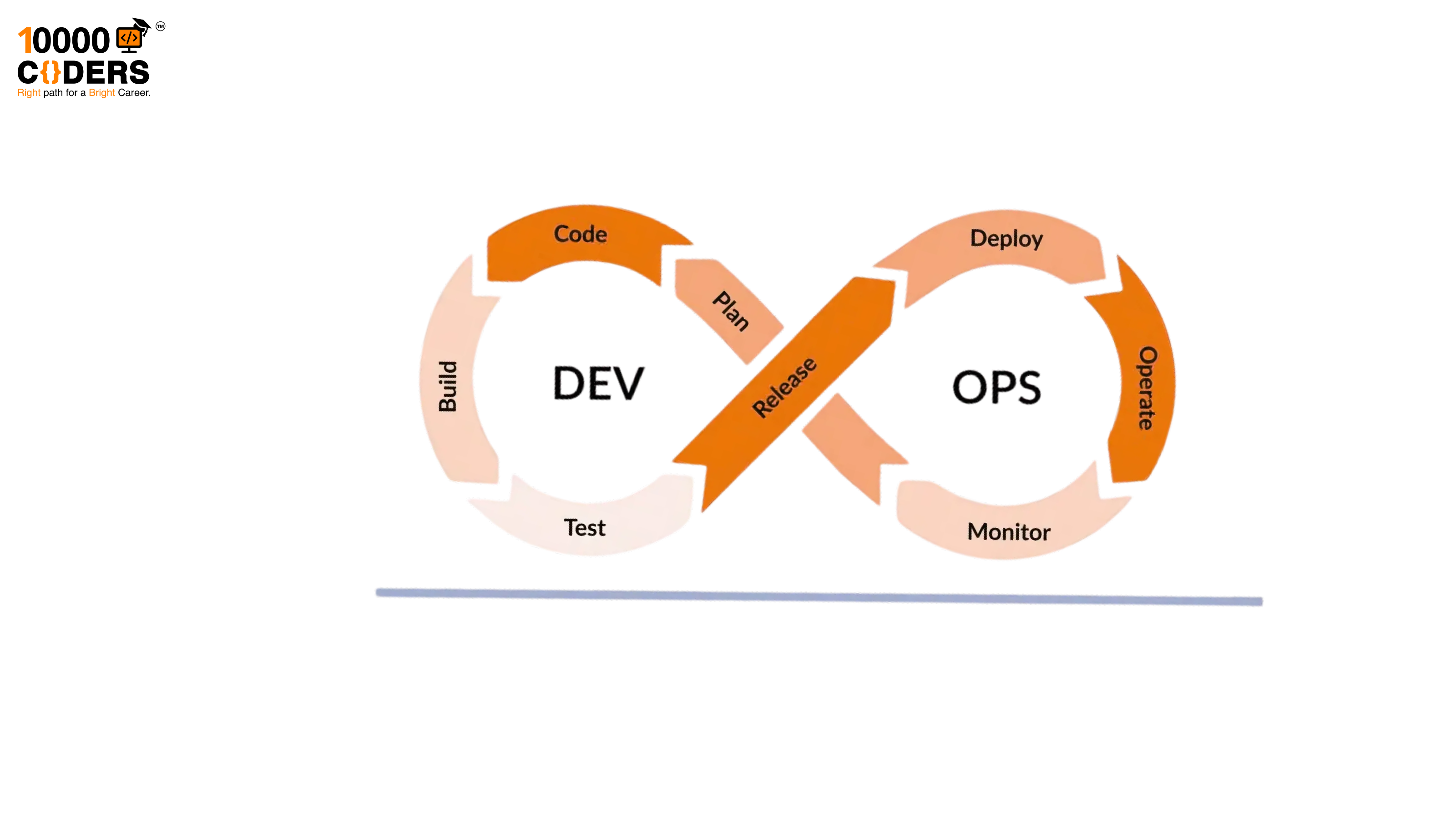

Modern DevOps practices rely on a continuous feedback loop between development and operations. The following diagram illustrates the typical CI/CD lifecycle, showing how code moves from planning to deployment and monitoring in a seamless, automated flow.

Another common representation of the DevOps cycle is shown below, emphasizing the continuous nature of development and operations:

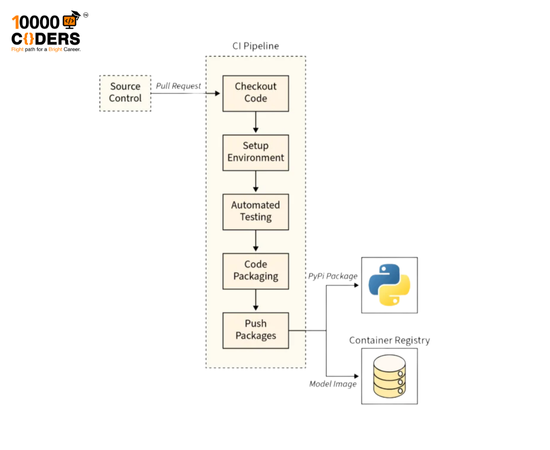

Visualizing a CI Pipeline

Below is a diagram of a typical Continuous Integration (CI) pipeline. It starts with source control and proceeds through code checkout, environment setup, automated testing, packaging, and finally pushing packages to a container registry.

Machine Learning Training Pipeline

This diagram shows a typical ML training pipeline, including data ingestion, feature extraction, model training, evaluation, validation, and artifact storage. It highlights the integration of feature stores, model registries, and metadata stores for robust MLOps.

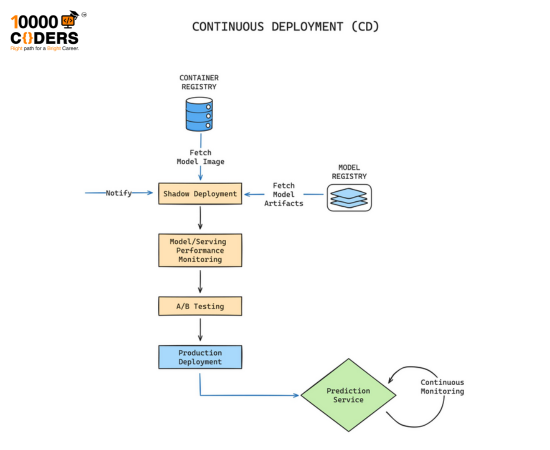

Continuous Deployment (CD) Flow

The following diagram illustrates a typical Continuous Deployment (CD) workflow, including shadow deployment, performance monitoring, A/B testing, and production deployment. This approach ensures that only well-tested and high-performing models or applications reach production, with continuous monitoring for reliability.

MLOps Lifecycle

The MLOps lifecycle encompasses design, model development, and operations. Each phase includes critical tasks such as requirements engineering, data engineering, model validation, deployment, and monitoring.

Understanding CI/CD Pipeline Fundamentals

A CI/CD pipeline is an automated process that helps development teams deliver software changes more frequently and reliably. Let's explore the key components and phases.

Pipeline Phases

Source Phase: This is where code changes are tracked and managed:

Version control (Git)
Code review processes
Branch management strategies

Build Phase: Transforms source code into executable artifacts:

Compilation
Dependency resolution
Artifact creation

Test Phase: After static testing during development, builds undergo dynamic testing including:

Basic functional/unit testing to validate new features
Regression testing to ensure changes don't break existing functionality
Integration, performance, and user acceptance testing

Deploy Phase: Successfully tested builds become candidates for deployment through either:

Continuous delivery: Builds are automatically deployed to test environments but require manual approval for production
Continuous deployment: The pipeline automatically deploys to all environments without manual intervention

Advanced CI/CD Strategies and Techniques

Reusable Components and Automation

Modern CI/CD implementations are transforming how development teams create and manage pipelines with innovations like CI/CD Catalogs-centralized platforms where developers can discover, reuse, and contribute CI/CD components that function as reusable, single-purpose building blocks. This approach simplifies pipeline configuration and standardizes CI/CD components across an organization.

Parallel Builds and Multi-Stage Pipelines

Parallel builds break your build and test tasks into smaller parts that can run simultaneously on different machines or containers, significantly speeding up your pipeline and providing quicker feedback to developers. Meanwhile, multi-stage pipelines simplify the software delivery process by breaking it into clear steps-development, testing, staging, and production-offering better control and flexibility.

Advanced Deployment Strategies

Modern CI/CD pipelines implement sophisticated deployment approaches:

Blue-Green Deployment: Maintains two production environments for near-zero downtime
Canary Releases: Gradually rolls out changes to a subset of users
Rolling Updates: Deploys in incremental batches to reduce disruption
Feature Flags: Controls new features without requiring redeployment

Setting Up an Advanced CI/CD Pipeline

Step 1: Planning Your Pipeline Architecture

Before implementation, define your requirements by identifying:

Deployment environments
Testing strategies
Security needs
Monitoring mechanisms

Choose appropriate tools for:

Version control
CI/CD platforms
Testing frameworks
Containerization
Infrastructure as code

Step 2: Implementing with GitLab CI/CD

Create a .gitlab-ci.yml file in your repository root to define pipeline stages and configure GitLab runners for automation. Here's an example configuration:

stages:

  - build

  - test

  - deploy



build_job:

  stage: build

  script:

    - npm install

    - npm run build

  artifacts:

    paths:

      - dist/



test_job:

  stage: test

  script:

    - npm test



deploy_job:

  stage: deploy

  environment: production

  script:

    - rsync -avz --progress -e "ssh -p 22" dist/ user@$PROD_SERVER:/var/www/

  only:

    - main

Step 3: Implementing with Jenkins

For Jenkins-based pipelines, create a Jenkinsfile that defines your pipeline stages:

pipeline {

  agent any

  stages {

    stage('Build') {

      steps {

        sh 'mvn clean package'

      }

    }

    stage('Test') {

      steps {

        sh 'mvn test'

      }

      post {

        always {

          junit '**/target/surefire-reports/*.xml'

        }

      }

    }

    stage('Deploy') {

      steps {

        sh 'scp target/my-app.jar user@prod-server:/opt/app/'

      }

    }

  }

}

Essential Components of Advanced CI/CD Pipelines

Automated Testing Strategies

Implement comprehensive testing across your pipeline:

Unit Tests: Verify individual components function correctly
Integration Tests: Ensure components work together properly
End-to-End Tests: Validate complete user flows
Performance Tests: Measure system performance under load
Security Scans: Identify vulnerabilities early

Artifact Management

Store build outputs in registries, manage dependencies with tools like Maven or npm, and version artifacts consistently. This ensures reproducibility and traceability across your deployment environments.

AI-Powered Pipeline Optimization

Modern CI/CD pipelines leverage AI for troubleshooting and optimization. For example, GitLab Duo Root Cause Analysis uses AI to determine the root cause for failed CI/CD pipelines and suggest fixes, removing guesswork from the troubleshooting process.

Troubleshooting and Scaling Your Pipeline

Common Issues and Solutions

Pipeline Failures: Check logs in Jenkins or GitLab; add retry logic
Performance Bottlenecks: Optimize caching, parallelization, and resource allocation
Dependency Conflicts: Pin versions in package managers
Environment Inconsistencies: Use Docker to maintain uniformity across environments

Scaling Strategies

As your organization grows, scale your CI/CD pipeline by:

Increasing capacity with additional Jenkins agents or GitLab runners
Load balancing builds for high availability
Integrating advanced observability tools
Implementing containerized pipelines for consistency

Future-Proofing Your CI/CD Implementation

Stay ahead of the curve with emerging CI/CD technologies:

AI/ML Test Optimization: Use tools that predict and prioritize tests
GitOps: Implement declarative infrastructure management
Progressive Delivery: Integrate solutions for controlled feature rollouts
Cloud-Native Deployments: Target managed Kubernetes services for scalability
Serverless CI/CD: Explore serverless options to eliminate server management

Conclusion

Implementing an advanced CI/CD pipeline requires careful planning, the right tools, and a commitment to automation and continuous improvement. By adopting these sophisticated strategies and practices, development teams can achieve unprecedented levels of efficiency, reliability, and quality in their software delivery process. Start by implementing these advanced techniques incrementally, measuring their impact, and continuously refining your approach to build a world-class CI/CD pipeline that meets your organization's unique needs.
