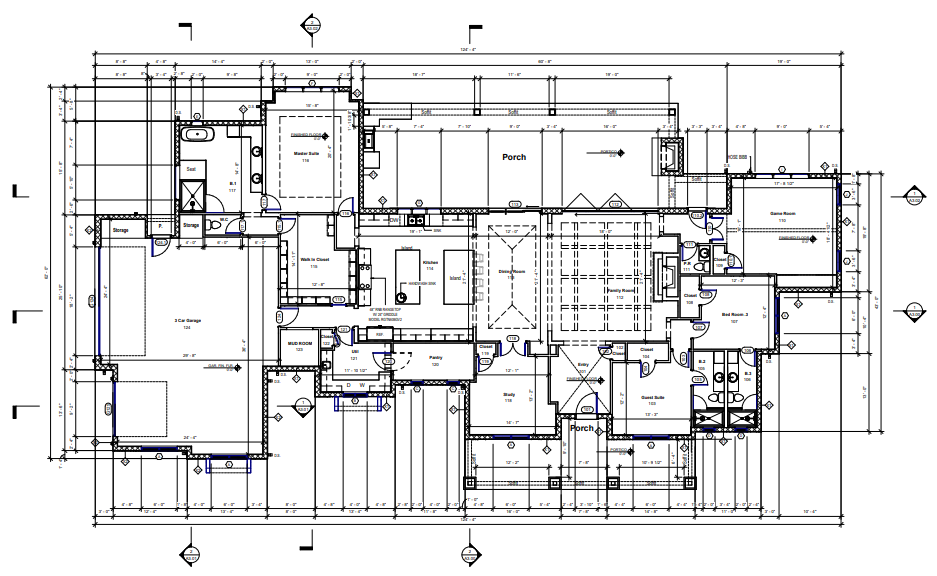

Converting PDFs to AutoCAD files has become essential for architects, engineers, and designers who receive technical drawings in PDF format but need to work with them in AutoCAD. Whether you're revising existing plans, extracting specific elements, or incorporating legacy drawings into new projects, a reliable PDF to AutoCAD converter can save hours of manual redrafting while maintaining precision.
The challenge lies in finding the right conversion method and executing it properly. Poor conversions often result in distorted dimensions, missing elements, or files that require extensive cleanup. However, with the right approach and tools, you can achieve accurate conversions that preserve the integrity of your original drawings.
This guide walks you through the entire process, from selecting the appropriate converter to troubleshooting common issues, ensuring your converted files meet professional drafting standards.
Understanding PDF and AutoCAD Formats
PDFs and AutoCAD files serve different purposes in the design workflow. PDFs are primarily designed for viewing and sharing, storing information as static images or vector graphics. They preserve the visual appearance of drawings but don't maintain the underlying CAD structure, layers, or editable properties that make technical drawings functional.
AutoCAD files, particularly DWG and DXF formats, store drawings as a collection of geometric entities, layers, blocks, and attributes. These elements can be modified, scaled, and manipulated independently, making them ideal for design work and technical drafting.
The conversion process essentially reconstructs CAD entities from the PDF's visual representation. Modern PDF to AutoCAD converters use sophisticated algorithms to identify lines, arcs, text, and other elements, then recreate them as editable CAD objects. The accuracy of this reconstruction depends on both the quality of the original PDF and the converter's capabilities.
Choosing the Right PDF to AutoCAD Converter
Selecting an appropriate converter significantly impacts your conversion results. Several factors should guide your decision.
Accuracy and precision top the priority list. Look for converters that can maintain dimensional accuracy and preserve line weights, text formatting, and geometric relationships. Some tools offer vector-based conversion, which typically produces cleaner results than raster-based methods.
File compatibility ensures the converter works with your specific PDF types and AutoCAD versions. Some PDFs contain complex elements like hatching patterns, dimension lines, or custom fonts that require specialized handling.
Feature set varies considerably between converters. Advanced options might include layer recognition, batch processing capabilities, text editing features, and the ability to handle colored drawings or different line types.
User interface and ease of use matter, especially if you'll be converting files regularly. Some converters integrate directly into AutoCAD, while others operate as standalone applications or online services.
Popular options include AutoDWG PDF to DWG Converter, Able2Extract Professional, and online services like Zamzar or CloudConvert. Each offers different strengths depending on your specific needs and budget.
Step-by-Step Conversion Guide
The conversion process follows a straightforward workflow, though specific steps may vary depending on your chosen converter.
Preparation starts with examining your PDF file. Open it in a PDF viewer to assess the drawing quality, check for any distortions or missing elements, and note any special features like layers or complex text formatting. High-resolution PDFs generally convert more accurately than compressed or low-quality files.
Import and setup involves loading your PDF into the converter. Most tools allow you to preview the file and select specific pages if working with multi-page documents. Configure your output settings, including the target file format (DWG or DXF), AutoCAD version compatibility, and units of measurement.
Conversion settings require attention to detail. Choose vector conversion over raster when possible, as this maintains scalability and editability. Select appropriate options for handling text, dimensions, and line weights. Some converters allow you to specify which elements to convert and which to ignore.
Execute the conversion by running the process. Processing time varies based on file complexity and converter capabilities. Monitor the progress and note any warnings or error messages that appear.
Review and validation complete the basic conversion process. Open the resulting CAD file in AutoCAD to verify accuracy, check dimensions, and ensure all elements converted properly.
Tips for Accurate Conversions
Several best practices can significantly improve your conversion results and reduce the need for post-processing cleanup.
Source file quality plays a crucial role. Start with the highest-resolution PDF available, preferably one created directly from CAD software rather than scanned from paper drawings. Vector-based PDFs convert more accurately than image-based files.
Scale verification should be your first step after conversion. Measure known dimensions in both the original PDF and converted file to ensure accuracy. Some converters may require manual scale adjustment or reference point setting.
Layer management helps organize complex drawings. While not all converters preserve PDF layers, some can separate elements by color, line weight, or other properties into different AutoCAD layers, making subsequent editing easier.
Text handling often requires special attention. Technical drawings contain dimension text, notes, and labels that must remain accurate and editable. Configure your converter to maintain text as editable objects rather than converting them to geometric shapes.
Batch processing can save time when converting multiple files, but test your settings on a single file first to ensure consistent results across your entire batch.
Troubleshooting Common Issues
Even with careful preparation, conversion issues can occur. Understanding common problems and their solutions helps ensure successful results.
Dimension distortion ranks among the most serious issues. If converted drawings don't match original dimensions, check your scale settings, verify the PDF's original scale, and ensure your converter isn't applying automatic scaling. Some PDFs contain multiple scales within a single drawing, requiring manual adjustment.
Missing or distorted elements may indicate the converter couldn't interpret certain PDF features. Complex hatching patterns, custom line types, or specialized symbols might not convert correctly. In these cases, manual recreation or using a different converter may be necessary.
Text problems manifest as missing labels, incorrect fonts, or text converted to geometric shapes. Ensure your converter supports text recognition and that required fonts are installed on your system. Some converters allow you to specify font substitutions for missing typefaces.
File size issues can occur with complex drawings. Large converted files may indicate excessive geometry or inefficient conversion. Try adjusting conversion settings to optimize for file size, or use AutoCAD's cleanup tools to remove redundant elements.
Performance problems in the converted file, such as slow response or display issues, often result from overly complex geometry or numerous small elements. AutoCAD's AUDIT and PURGE commands can help resolve these issues.
Maximizing Your CAD Conversion Success
Converting PDFs to AutoCAD format efficiently requires the right combination of tools, techniques, and attention to detail. Success depends on choosing an appropriate PDF to AutoCAD converter for your specific needs, properly preparing your source files, and following best practices throughout the process.
Remember that conversion is often just the first step in your workflow. Plan to spend time reviewing and refining converted files to meet your project standards. With practice and the right approach, you can streamline this process and integrate PDF conversion seamlessly into your drafting workflow.
Start by testing different converters with sample files from your typical projects to identify which solution works best for your specific requirements.
