A stepper motor is an electro-mechanical device that converts electrical energy into mechanical energy. It uses actuators to split rotational motion into an equal number of steps depending on the application's requirements. The many types of stepper motors, including linear stepper motors and Stepper Motor with Gearbox, are determined by the number of steps per rotation. They move by using actuators. Stepper motors offer accuracy in positioning, repeatability, and control over speed.

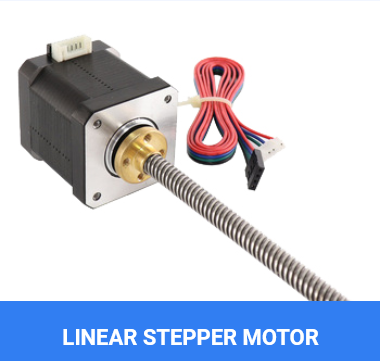

A Linear Stepper Motor is essentially a flattened, radially cut-out variant of the rotary design, as most linear motors do. Linear stepper motors NEMA 24 are similar to their rotary counterparts in operation and performance. They can provide excellent resolution at high speeds and accelerations and are often operated as open-loop systems.
The Linear Stepper Motors are the examples of linear stepper motors:
Open-loop systems with a base and a slider are used in these stepper motors with linear motion. High speeds and resolutions are offered. The sliders, also known as forcers, have motor windings, teeth, and a permanent magnet. Because a magnetic pull is produced between the base and the slider in these motors, bearings are employed to balance the air gap. When the motor's linear motion is internally enabled, linear stepper motors are economical and effective.
Major drawbacks:
The main problem with linear stepper motors is that their speed-force relationships are not very good. This means that while they can generate a lot of force at low speeds, they produce significantly less force as speed increases. However, linear stepper motors offer a solution that is easy to set up and operate and gives good resolution at high speeds for applications suited for open loop operation with low to moderate force requirements.Nema stepper motor | Nema 17 stepper motor | Nema 23 motor | Nema 24 | Nema 34 | Nema 8 | Geared stepper motor | Planetary gear motor | 3d printer motor | Hybrid stepper motor | Micro stepper motor | Closed loop stepper motor | Linear stepper motor
