Introduction

In the realm of industrial automation and process control, China Control valves are vital for regulating the flow of fluids. Among the various types, three-way control valves play a specialized yet indispensable role in systems requiring precise fluid mixing, diverting, or temperature regulation. Found in industries ranging from HVAC to chemical processing, these valves offer operational flexibility, system simplification, and cost efficiency.

This article explores the principles, types, benefits, and selection criteria of 3-way control valves, helping engineers and plant operators make informed choices for optimal system performance.

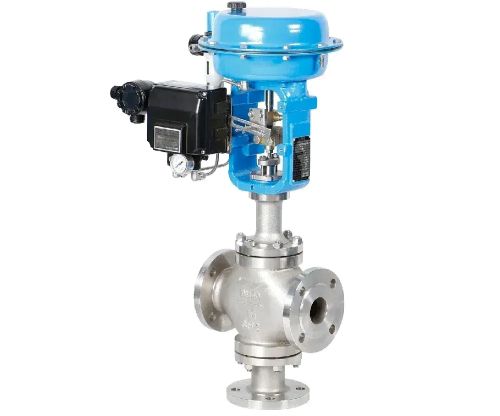

What Is a 3-Way Control Valve?

A three-way control valve is designed with three ports to facilitate either of the following flow functions:

• Mixing Mode: Combines two inlet streams into one outlet.
• Diverting Mode: Splits one inlet flow into two separate outlets.

These valves eliminate the need for multiple two-way valves and associated piping, simplifying system layout while enhancing flow management. Their compact T-shaped (T-port) configuration allows for dynamic flow redirection and modulation in a single device.

Common applications include:

• Heating and cooling circuits
• Chemical blending systems
• Steam and process heating loops
• Temperature and flow balancing in industrial processes

Types of 3-Way Control Valves

1. Balanced 3-Way Control Valve

Designed for precise modulation in both mixing and diverting operations, balanced valves use internal components to offset pressure forces, ensuring stability even in fluctuating flow or pressure conditions.

Key Features:

• Excellent control accuracy under varying loads
• Reduced actuator torque and valve wear
• Long service life in demanding environments

Typical Uses:

• Steam and thermal oil systems
• HVAC mixing loops
• Temperature-critical chemical reactors

2. Unbalanced 3-Way Control Valve

Simpler in construction, these valves are suitable for basic mixing tasks. Though capable of flow diversion, they may struggle with modulation accuracy under pressure variations.

Key Features:

• Economical and easy to maintain
• Ideal for on-off flow switching
• Less suitable for continuous or precision control

Typical Uses:

• Hot/cold water mixing
• Batch chemical processing
• Non-critical utility service

How Do 3-Way Valves Work?

At the core of the valve is a movable plug, disc, or ball that redirects fluid between the three ports. The control mechanism—manual, pneumatic, or electric—determines the position and flow path:

• Mixing Mode: Two inlets are blended into one outlet
• Diverting Mode: A single inlet is routed to one of two outlets

Valve Port Configurations:

• L-Port: Directs flow between two of three ports (on/off switching)
• T-Port: Allows simultaneous or blended flow paths for mixing or partial diversion

When paired with actuators and control systems, these valves enable responsive, automated regulation of process variables.

Benefits of 3-Way Control Valves

• ✅ System Simplification: One valve replaces two, reducing space and cost
• ✅ Compact Design: Ideal for tight or modular installations
• ✅ Lower Maintenance: Fewer components reduce failure points
• ✅ Improved Control Accuracy: Especially with balanced designs
• ✅ Operational Flexibility: Suitable for both mixing and diverting tasks

How to Select the Right 3-Way Control Valve

1. Fluid Characteristics

Consider the chemical compatibility, viscosity, and cleanliness of the medium:

• Use PTFE, stainless steel, or alloy materials for corrosive or abrasive fluids
• Account for solids or particulates that may clog the valve internals

2. Pressure and Temperature Ratings

Match the valve's specifications with system conditions:

• Use balanced valves for high-pressure modulation
• For steam or thermal oil, choose high-temperature-rated materials and packing

3. Valve Sizing and Flow Capacity (Cv)

Correct sizing is critical for efficient and accurate control:

• Undersized valves restrict flow and cause pressure drops
• Oversized valves may result in poor modulation and hunting
• Perform a Cv calculation or consult manufacturer sizing tools

4. Connection Type and Installation Fit

Ensure mechanical compatibility:

• Available in flanged, threaded, or welded end types
• Sizes typically range from DN15 to DN300 (½" to 12")
• Check space availability for actuator clearance

5. Actuation and Control Options

Choose based on the desired control system integration:

• Manual: For infrequent, on-site adjustment
• Pneumatic: For fast response in automated loops
• Electric: For precise modulation and smart system compatibility
• Match actuator torque, control signal type (e.g., 4–20mA), and fail-safe behavior to your process needs

6. Safety and Compliance

Ensure the valve meets regulatory and safety standards:

• Look for API, ASME, CE, or ISO certifications
• Consider adding positioners, limit switches, or feedback systems in critical applications

Common Applications of 3-Way Control Valves

• HVAC Systems: Mixing chilled and hot water to maintain zone temperature
• Chemical Plants: Diverting or blending reactive fluids in reactors
• Power Generation: Steam regulation and turbine bypass systems
• Pharmaceuticals: Precise dosing and clean-in-place (CIP) flow switching
• Food and Beverage: Hygienic mixing of ingredients and process water

Conclusion

Three-way control valves are essential components in modern process control, offering versatile flow management with simplified system design. Whether mixing fluids for temperature regulation or diverting flow in a multi-stream process, they enhance efficiency, reduce component count, and offer precise control in one compact unit.

By understanding the types, configurations, and selection criteria, engineers and operators can confidently choose the right valve to meet the demands of their systems—whether for a mission-critical chemical reactor or a compact HVAC plant.

As industries evolve toward smarter and more efficient operations, the role of 3-way control valves will continue to grow—supporting the next generation of automated, sustainable, and high-performance process systems.
