Pneumatic vs. Self-Operated Control Valves: A Comprehensive Comparison
Introduction
We are a leading China control valve manufacturer , delivering high-quality valves and precision control actuators designed to meet the diverse demands of various industrial applications.
In modern process automation and fluid control, choosing the right type of control valve is essential for ensuring performance, safety, and operational efficiency. Among the most commonly used valves are pneumatic control valves and self-operated control valves—each with unique operating principles, benefits, and application suitability.
This article offers an in-depth comparison between these two valve types, helping engineers, plant designers, and operators make informed decisions based on process requirements and infrastructure constraints.

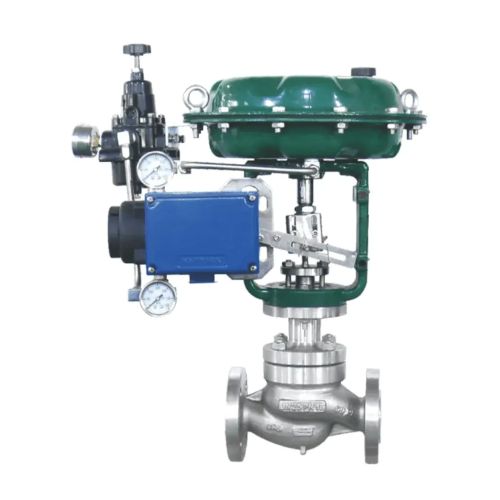

Pneumatic Control Valves: Overview
Pneumatic control valves use compressed air as their driving energy. A typical system includes a valve body and a pneumatic actuator, often equipped with a positioner that receives signals (e.g., 4–20 mA or 0.2–1 bar) from a centralized control system such as a DCS or PLC. These valves dynamically adjust the valve opening to regulate flow, pressure, or temperature in real time.
Key Features:
- Requires compressed air and a control signal
- Enables precise, rapid adjustments
- Supports integration with automation and feedback systems
- Ideal for continuous or variable-process control
Self-Operated Control Valves: Overview
Self-operated control valves function autonomously—without external power or signal inputs. They rely on the energy of the process medium (pressure or temperature) to actuate the valve, using internal components like diaphragms or bellows to respond directly to changes in system conditions.
Key Features:
- Operates independently—no air supply or power needed
- Uses media pressure or temperature to self-adjust
- Best suited for stable, low-variation systems
- Common in utility, pressure-reducing, or remote installations
Use Case Scenarios
✅ When to Choose a Pneumatic Control Valve:
- You need precise control of flow, pressure, or temperature
- The system is automated or centrally monitored
- Frequent adjustments to process variables are required
- The plant already has compressed air infrastructure
- Applications involve complex or critical processes, such as:
- Chemical and petrochemical production
- Boiler and steam control in power plants
- Advanced water treatment and HVAC automation
✅ When to Choose a Self-Operated Control Valve:
- The process operates under steady-state conditions
- No external power or air is available
- The system is located in a remote or hard-to-reach area
- You seek a low-maintenance, cost-effective solution
- Ideal for applications like:
- Pressure-reducing stations
- Steam supply for heating systems
- Gas pipelines in off-grid areas
- Lubrication or cooling water systems
Design and Installation Considerations
- Pneumatic Valves:
- Allow flexible installation in various orientations
- Require infrastructure planning for air and signal routes
- Can integrate smart positioners and feedback devices
- Self-Operated Valves:
- Require specific layouts, especially for sensing
- E.g., steam systems need actuators installed downward with condensate pots
- Gas systems should have pressure taps at the top for vapor phase sensing
- Simple to install but must follow process-specific guidelines
Conclusion
Both pneumatic and self-operated control valves offer valuable capabilities, but their effectiveness depends on how well they align with your process requirements.
- Pneumatic control valves are ideal for dynamic, high-precision control in automated systems.
- Self-operated control valves offer simplicity, autonomy, and reliability in static or infrastructure-limited environments.
By carefully evaluating your system's needs—such as control accuracy, infrastructure availability, and operational conditions—you can select the valve type that maximizes safety, performance, and cost-effectiveness. Know more about Google SEO Directory
