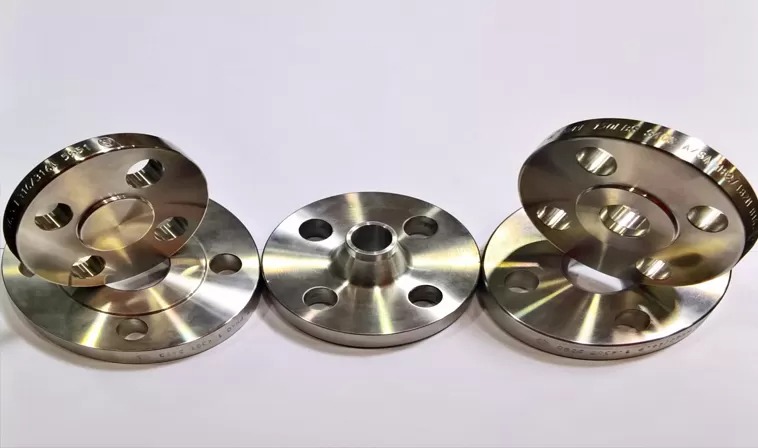

Monel K500 flanges are an essential component in various industries due to their exceptional strength, corrosion resistance, and durability. Made from a nickel-copper alloy (Monel K500), these flanges offer superior mechanical properties, making them ideal for use in harsh environments, such as marine, chemical processing, and oil & gas industries.
Key Characteristics of Monel K500 Flanges:
- Corrosion Resistance: Monel K500 is known for its resistance to a wide range of corrosive conditions, especially in saltwater environments. This makes Monel K500 flanges a preferred choice for marine and offshore applications.
- High Strength: The addition of aluminum and titanium to Monel K500 enhances its strength and hardness, offering better performance in applications where high mechanical strength is critical.
- Low Magnetic Permeability: Monel K500 maintains its non-magnetic properties even when cooled to subzero temperatures, making it useful for applications where magnetic interference must be minimized.
- Resistance to Sour Gas: Monel K500 is resistant to the effects of hydrogen sulfide (H₂S), making it suitable for sour gas environments in the oil and gas sector.
Types of Monel K500 Flanges:
- Weld Neck Flanges: These are used in high-pressure systems and are welded to the pipe to provide a secure and leak-proof connection.
- Slip-On Flanges: Designed to slip over the pipe, they are welded both inside and outside for a tight fit.
- Blind Flanges: Used to close off the end of a piping system, these are essential for systems that need to be opened for maintenance or inspection.
- Socket Weld Flanges: Often used for small-diameter, high-pressure pipes, they provide a smooth flow path inside the pipe system.
Applications of Monel K500 Flanges:
- Marine Industry: Given their excellent resistance to seawater corrosion, these flanges are used in shipbuilding, offshore platforms, and other marine applications.
- Oil & Gas Industry: Their resistance to sour gas and high mechanical strength makes Monel K500 flanges indispensable in oil drilling and refining processes.
- Chemical Processing: Monel K500 flanges are often used in chemical plants where equipment is exposed to harsh chemicals and extreme temperatures.
Compared to steel, Monel is truly challenging to machine as it works rapidly. It should be turned and worked at slow velocities and low feed rates. Monel 400 lines and chambers are seen as being utilized in different application attempts like petrochemical plants, oil treatment working conditions, stool plants, and different others. Technolloy Inc. makes these Monel K500 Line Flanges according to client stray pieces in all over the rules. We offer these UNS N05500 Monel k500 Flanges in 150#, 300#, 600#, 900#, 1500#, and 2500# PN6, PN10, PN16, PN25, PN40, and PN64 in all sorts of line flanges: nipolet, stunt weld, slip-on flanges, chrome-moly pipe flanges, blind flanges, worked with flanges, hung flanges, and so forth.
Monel K500 Flanges Manufacturers in Mumbai, Monel K500 Flanges Suppliers in Mumbai, Monel K500 Flanges Stockists in Mumbai, Monel K500 Flanges Exporters in Mumbai
Equivalent Grades of Monel k500 flanges:
STANDARD
WERKSTOFF NR.
UNS
JIS
AFNOR
BS
GOST
EN
Monel K500
2.4375
N05500
–
–
–
–
–
Specifications of Monel k500 flanges:
Size
1/8″ NB TO 48″NB.
Range
15 NB to 300 NB
Specification
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Standards
ASTM / ASME SB 564 / 160 / 472
Class
150#, 300#, 600#, 900#, 1500#, 2500#. PN6, PN10, PN16, PN25, PN40, PN64 etc.
Grades
Monel 400 (UNS No. N04400), Monel K500 (UNS No. N05500).
Chemical Properties of Monel k500 flanges:
Monel K500
Ni
Fe
C
Mn
Si
Cu
Al
Ti
S
63.0 min
05 – 2
0.25 max
1.5 max
0.5 max
27.0 – 33.0
2.3 – 3.15
0.35 – 0.85
0.010 max
Mechanical & Physical Properties of Monel k500 flanges:
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
8.44 g/cm3
1350 °C (2460 °F)
Psi – 1,60,000 , MPa – 1100
Psi – 1,15,000 , MPa – 790
20 %
