Comprehensive Guide to Control Valve Sizing

Introduction

We are a leading control valve manufacturer in China, delivering high-quality valves and control actuators designed to meet a wide range of industrial applications.

Selecting the correct control valve size is critical to the efficiency, safety, and longevity of any industrial fluid system. An improperly sized valve can lead to operational instability, excessive maintenance, or even catastrophic failure. This guide outlines the key considerations and steps involved in control valve sizing, helping engineers and plant operators make informed decisions for optimal system performance.

Understanding Control Valve Sizing

Control valve sizing is the process of determining the most appropriate valve size to regulate flow effectively under defined process conditions. The goal is to ensure the valve operates within its most efficient control range—neither oversized nor undersized.

Key Factors Influencing Valve Sizing

1. Flow Rate (Q)
2. The required flow rate—expressed in units like m³/h, GPM, or kg/h—is the starting point for sizing. It's important to know both maximum and minimum flow conditions to ensure controllability across the entire operating range.
3. Pressure Drop (ΔP)
4. The difference in pressure between the valve inlet and outlet affects flow regulation.

• Too much ΔP leads to energy loss, cavitation, or erosion.
• Too little ΔP can cause poor controllability.

1. Fluid Characteristics
2. Fluid type—liquid, gas, or steam—and properties such as:

• Viscosity
• Density or specific gravity
• Temperature and vapor pressure

1. These affect how the fluid flows and how the valve performs.
2. Valve Type

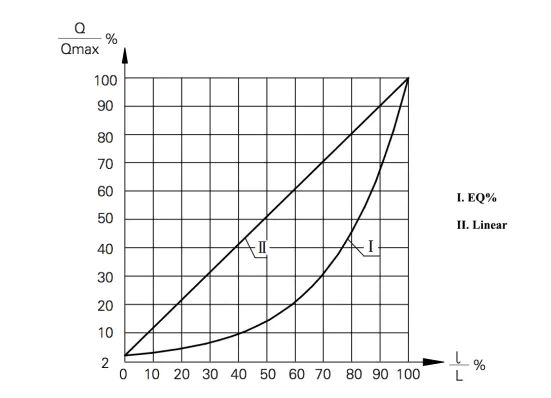

3. Each valve type has distinct flow characteristics:

• Globe valves: Excellent throttling control
• Butterfly valves: Compact, good for large volumes
• Ball valves: Fast acting, less suitable for modulation

1. System Dynamics
2. Consider interaction with other components: pumps, heat exchangers, pressure regulators, etc. Sizing must reflect both static and dynamic conditions, including transients and load variations.

Step-by-Step Valve Sizing Procedure

1. Define Process Parameters

Gather accurate data:

• Flow range (max/min/normal)
• Inlet and outlet pressures
• Operating temperature
• Fluid properties (density, specific gravity, viscosity)

This step forms the basis of all sizing calculations.

2. Calculate Flow Coefficient (Cv or Kv)

Flow Coefficient (Cv) represents the valve’s capacity to pass flow.

For liquids, the basic formula is:

Cv=QΔP/GCv = \frac{Q}{\sqrt{\Delta P / G}}Cv=ΔP/G​Q​Where:

• Q = flow rate (GPM)
• ΔP = pressure drop (psi)
• G = specific gravity of the fluid

For gases and steam, adjustments are made to account for compressibility and temperature. Specialized formulas and correction factors apply.

3. Select Valve Type and Nominal Size

Use the calculated Cv to consult manufacturer Cv charts for different valve models and sizes. Choose a valve that:

• Operates between 20% to 80% open at normal flow
• Provides enough rangeability to handle both low and high flow

4. Validate Valve Performance

Ensure the selected valve can:

• Handle maximum and minimum flow without losing control accuracy
• Avoid conditions like choked flow, cavitation, or flashing
• Maintain acceptable noise and vibration levels

5. Consider Safety and Maintenance

A correctly sized valve should:

• Minimize wear and extend service intervals
• Resist common issues like seal erosion and leakage
• Reduce the risk of system failure due to improper throttling

6. Simulate System Behavior

Use sizing software or process simulation tools to model valve behavior under various scenarios. This helps predict real-world performance, revealing:

• Control loop stability
• Valve positioning trends
• Potential bottlenecks or surges

Common Sizing Mistakes to Avoid

1. Oversizing

• Causes the valve to operate at low openings, reducing control sensitivity
• Leads to hunting, noise, and shorter actuator life

2. Undersizing

• Increases pressure drop and limits maximum flow
• May result in choked flow and system bottlenecks

3. Ignoring Fluid Properties

• Overlooking temperature-induced density changes or viscous drag can skew sizing
• Always include real operating conditions in calculations

Conclusion

Accurate control valve sizing is essential for maintaining efficient, stable, and safe operations across all process industries. By understanding flow requirements, pressure conditions, fluid dynamics, and valve characteristics, engineers can ensure optimal valve performance and avoid costly system inefficiencies.

Utilizing a structured sizing approach, combined with manufacturer data and simulation tools, minimizes risks and supports smarter, longer-lasting valve selection—ultimately driving better plant productivity and reliability. Know more about Google SEO Directory
