Understanding 3-Way Globe Control Valves: Precision Flow Solutions for Industrial Systems
In industries ranging from power generation and chemical processing to HVAC and water treatment, precise fluid control is essential. Among the many control valve options available, the 3-way globe control valve stands out for its versatility and efficiency. Designed to manage flow with high accuracy, these valves are ideal for systems requiring fluid mixing or diversion within a compact and reliable configuration.
This article provides a comprehensive overview of 3-way globe control valves, examining their design, configurations, working principles, actuation methods, benefits, and industrial applications.
What Is a 3-Way Globe Control Valve?
A 3-way globe control valve features three connection ports and is designed to either:
- Mix two incoming fluid streams into one, or
- Divert one fluid stream into two separate paths.
At the heart of the valve is a movable plug or disc that regulates flow by modulating its position relative to a stationary seat. Controlled by a manual or automated actuator, this mechanism enables precise fluid control, making it suitable for demanding process environments.
Key Valve Configurations: Mixing, Diverting, and Universal
The function of a 3-way globe valve depends on its internal design. There are three primary configurations:
1. Mixing Configuration
Two fluid streams (ports A and B) enter the valve and are mixed within the valve body. The mixed stream exits through a single outlet (port AB or M).
Typical applications:
- HVAC systems (mixing hot and cold water)
- Process temperature regulation
- Chemical or gas blending
2. Diverting Configuration
One fluid stream enters through a single inlet (port A) and is directed to one of two outlets (ports B and AB), depending on the plug position.
Typical applications:
- Flow switching between equipment or processing lines
- Coolant or lubricant routing
- System maintenance or cleaning cycles
3. Universal Configuration
In this multifunctional design, any two ports can act as inlets or outlets, allowing for both mixing and diverting capabilities in a single valve.
Typical applications:
- Complex thermal management systems
- Variable-flow HVAC loops
- Chemical dilution and dosing systems
Working Principles of 3-Way Globe Control Valves
The valve operates by adjusting the position of a plug inside the valve body. The actuator—manual, pneumatic, electric, or hydraulic—moves the stem, which shifts the plug to modulate flow paths.
Operation Modes:
- Mixing Mode: Two inlets → combined into one outlet
- Diverting Mode: One inlet → directed to one of two outlets
- Universal Mode: Any two ports function as inlets/outlets with advanced control logic
The plug’s position determines flow rate and direction, enabling precise control in real-time, especially when integrated with a process automation system.

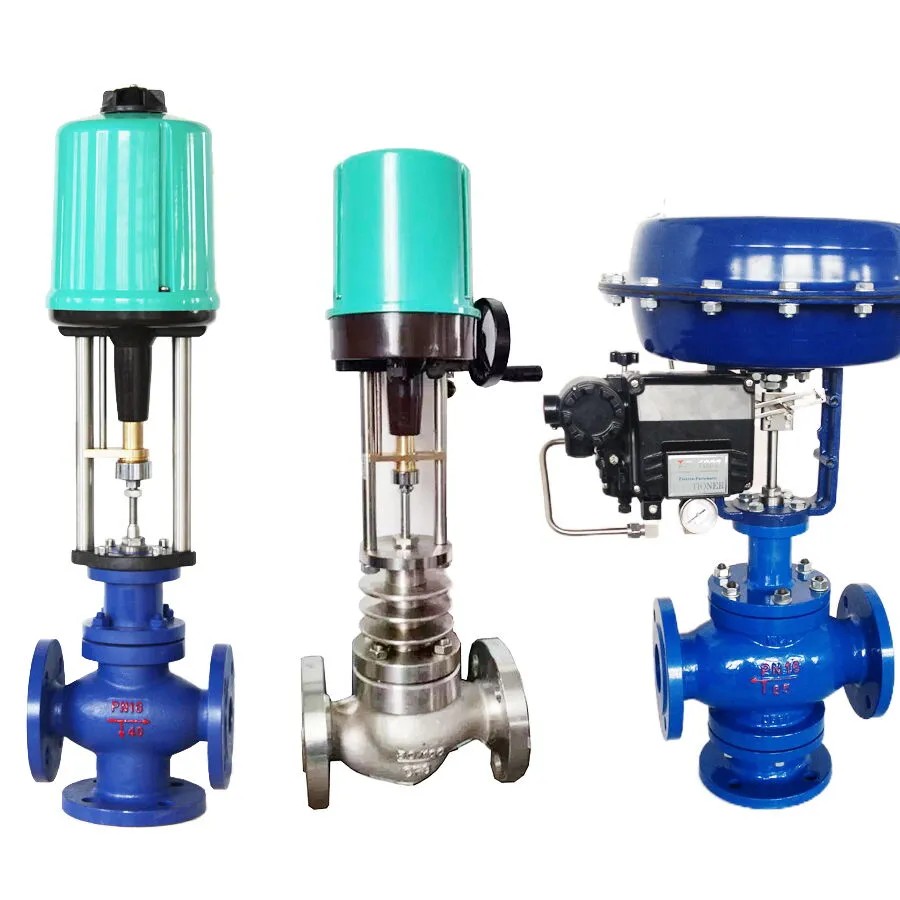

Types of Actuation
To meet the needs of diverse applications, 3-way globe control valves are available with various actuation options:
- Manual Actuators – Handwheels or levers for simple, low-frequency adjustments
- Pneumatic Actuators – Air-driven for fast, responsive control in industrial environments
- Electric Actuators – Ideal for integration with PLCs or digital control systems
- Hydraulic Actuators – Designed for high-force requirements in heavy-duty applications
These actuators can be equipped with positioners, sensors, and smart controllers for enhanced automation and diagnostics.
Benefits of 3-Way Globe Control Valves
- Multifunctional Control: Combines mixing and diverting operations in one device
- Compact Design: Replaces two separate 2-way valves, saving space and simplifying installations
- High Precision: Linear plug movement provides accurate modulation and throttling
- Robust Performance: Built to endure high pressures, temperatures, and demanding media
- Simplified Maintenance: Modular components allow easy servicing and replacement
Industrial Applications
3-way globe valves are used extensively across industries:
- HVAC: Regulate mixed water temperature or redirect chilled water between zones
- Chemical Processing: Blend reactants or control flow between tanks
- Power Plants: Control steam, condensate, or boiler feedwater systems
- Food & Beverage: Manage CIP cycles and batch ingredient mixing
- Pharmaceuticals: Ensure precise dosing and sanitary flow control
- Oil & Gas: Divert or mix process fluids in blending and separation systems
Material and Design Considerations
When selecting a valve, consider the following:
- Body Material: Choose corrosion-resistant alloys (e.g., stainless steel CF8M) for aggressive media
- Plug and Seat Design: V-port and contoured trims offer better throttling precision
- Cv Rating: Indicates flow capacity at a given pressure drop
- Pressure & Temperature Ratings: Must match process conditions
- Actuation & Control Interface: Should align with automation levels and system integration
Maintenance Best Practices
Regular maintenance extends the life and efficiency of 3-way globe control valves. Recommended practices include:
- Inspect for wear, leaks, or corrosion
- Lubricate mechanical components if applicable
- Calibrate actuators for optimal responsiveness
- Clean internal components, especially in mixing applications
Common issues: Plug erosion, stem sticking, actuator failure—most preventable with routine checks and preventive measures.
Conclusion
The 3-Way Globe Control Valve is a reliable and efficient solution for systems requiring flexible flow control—whether mixing, diverting, or both. Its compact design, precise modulation, and durable construction make it indispensable in many industries.
By selecting the right configuration and materials, and by maintaining the valve properly, engineers and operators can optimize performance, reduce system complexity, and improve overall process efficiency.
As industries increasingly move toward automation and smarter systems, the importance of multifunctional and adaptive components like the 3-way globe control valve will only continue to grow. Know more about Google SEO Directory
