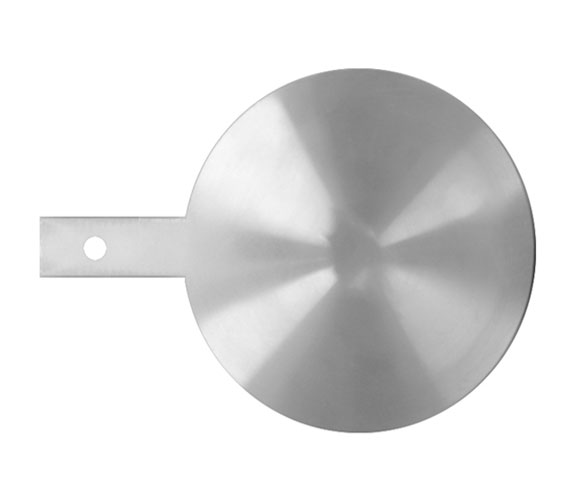

As they are intended to facilitate maintenance operations, Spade Blind Flanges, spades, and gaps are frequently seen in pipes or piping in most industries. To clean, inspect, and generally take care of particular equipment or portion of the pipe, they can be utilized to isolate it. It is utilized as a long-term or semi-permanent isolation device and is thought to be a very safe way to do so. As they are intended to facilitate maintenance operations, Spade Blind Flanges, spades, and gaps are frequently seen in pipes or piping in most industries. To clean, inspect, and generally take care of particular equipment or portion of the pipe, they can be utilized to Spade Blind Flanges it. It is utilized as a long-term or semi-permanent isolation device and is thought to be a very safe way to do so. Valve replacements that are less expensive and more reliable include spectacle blinders, spades, and spaces. They may also be referred to as paddle blinds, Spade Blind Flanges, line blinds, spacers, and blanks.
To adjust the position of a Spade Blind Flanges, loosen the pipe system's surrounding nuts, rotate the plate, swap out any gaskets, and then put everything back together and tighten the bolts.
Unifit Metalloys are frequently seen on a variety of face types, including:
• Upright Face (for high-pressure applications)
• Face is flat (for low-pressure applications)
• Blank Ring-Joints (used in conjunction with ring joint gaskets)
Unifit Metalloys provide the same purpose as Spade Blind Flanges, in essence, they serve as a straightforward valve. They are fastened into place after being placed in a pipeline between two flanges. In some situations, they are preferred to Spade Blind Flanges because the latter might be bulky. When the line needs to be opened, a spacer (a ring-shaped plate) is utilized; when the line needs to be blocked or closed, a spade (a solid circular-shaped plate) is installed. Half of the surrounding bolts must be removed in order to switch the Spade or Spacer from one to the other. The bolts can then be tightened and inserted again. Engineers or maintenance staff can tell whether a Spade Blind Flanges is inserted in the pipeline by looking at the handle of each one, which is designed in a specific way. It is typical for smaller spacers and spades to have a hole in the handle of the spacer but no hole in the Spade Blind Flanges.
Spade Blind Flanges, spacers, and spectacle blinders can be produced in a range of sizes, materials, and pressure ratings. They should be fabricated using plates or forgings that have the same chemical make-up as the piping and mating flanges in question and are permitted for use by ASME B31.3. The thickness from the pressure class of a flange and the flange size determines the diameter of the spectacle blinders, Spade Blind Flanges, and spacers. The sealing surface that follows is often chosen in accordance with the flange's face finish.
