Conventional leaf springs have long been an essential component of automotive and heavy-duty vehicle suspension systems. Known for their simplicity, durability, and load-bearing capacity, these springs play a pivotal role in supporting a vehicle’s weight and maintaining road contact. A deeper understanding of stress distribution and load management in leaf springs is crucial for optimizing vehicle performance, enhancing safety, and extending component lifespan.
This article delves into the mechanics behind stress distribution in conventional leaf springs, their load management capabilities, design factors that influence stress behavior, and how engineering solutions are applied to improve performance.
Conventional Leaf Springs

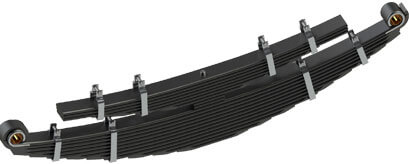

Conventional leaf springs consist of multiple layers of metal strips, commonly made from high-grade spring steel, stacked upon each other in a semi-elliptical shape. These layers are held together by a center bolt and sometimes with rebound clips. The spring is mounted to the vehicle chassis at both ends and attached to the axle at the center.
The primary purpose of the leaf spring is to:
- Support the weight of the vehicle
- Absorb road shocks
- Maintain tire contact with the road
- Distribute load across the chassis evenly
2. Types of Loads on Leaf Springs
Before exploring stress distribution, it is important to understand the types of loads acting on a leaf spring:
- Static Load: The weight of the vehicle and cargo when stationary.
- Dynamic Load: The variable load caused by motion, bumps, and road irregularities.
- Impact Load: Sudden forces due to potholes, speed bumps, or harsh terrain.
- Lateral and Longitudinal Forces: These result from cornering, braking, and acceleration.
Each of these loads contributes to stress concentrations within the spring, affecting both its performance and lifespan.
3. Stress Distribution in Conventional Leaf Springs
Stress in leaf springs arises due to bending when the spring flexes under load. The distribution of this stress is not uniform, and several factors influence where and how stress accumulates.
Bending Stress
The most significant type of stress is bending stress, calculated using:
σ=M⋅yI\sigma = \frac{M \cdot y}{I}
Where:
- σ\sigma = Bending stress
- MM = Bending moment
- yy = Distance from the neutral axis
- II = Moment of inertia of the leaf cross-section
The maximum stress typically occurs at the center of the spring (near the axle), where the bending moment is highest.
Contact Stress
Between the individual leaves, contact stress exists due to friction. While friction provides damping, excessive contact stress can cause wear and reduce flexibility.
Shear Stress
Shear stress is most prominent at the fixed ends (spring eyes or shackles) where the spring is attached to the chassis. This stress can lead to fatigue failure if not managed.
Residual Stress
Manufacturing processes such as shot peening or heat treatment induce residual stresses, which can help counteract applied stresses and improve fatigue resistance.
Load Management Principles
Efficient load management ensures the spring maintains its shape and function under varying weights and forces. This involves distributing the load uniformly across the leaves and through the chassis.
Role of Multiple Leaves
In conventional designs, shorter leaves are placed beneath the master leaf. When a load is applied:
- The top leaf (longest) bends the most.
- The lower leaves progressively support more of the load as deflection increases.
- This progressive engagement helps prevent sudden overloading of any single leaf.
Load Path
The load from the vehicle travels through:
- The chassis to the spring eyes and shackles.
- Along the length of the leaf spring.
- To the center bolt and axle, then to the wheels.
Proper alignment and leaf fitment ensure this load path is smooth and stress concentrations are minimized.
Design Considerations for Optimal Stress Distribution
Engineers take several factors into account to ensure even stress distribution and effective load management
Leaf Thickness and Width
- Thicker and wider leaves can handle more load but reduce flexibility.
- A tapering design allows a smoother stress gradient and reduces abrupt transitions in stress levels.
Number of Leaves
- More leaves increase strength but add weight.
- Fewer leaves reduce weight but may concentrate stress on fewer points.
Pre-Stressing and Nipping
- Leaves are pre-stressed (cambered) and nipped (clamped tighter at ends) to ensure uniform load distribution during initial loading.
- This also delays the full engagement of shorter leaves, creating a progressive spring rate.
Clamping and Center Bolt
- The center bolt ensures axial alignment.
- Rebound clips prevent the leaves from fanning out and maintain contact, reducing contact stress.
Failure Modes Due to Poor Stress Management
Improper design or wear can lead to uneven stress distribution, causing:
Fatigue Cracks
- Usually initiate at the edges or holes due to stress concentrations.
Leaf Breakage
- Occurs when the bending stress exceeds material strength.
Eye Failure
- Cracks around the spring eye or bushing due to high shear stress.
Interleaf Wear
- Excessive friction and stress between leaves lead to pitting or fretting corrosion.
Regular inspection and maintenance, such as lubrication and torque checks, are vital in preventing these issues.
Enhancements and Modern Techniques
With advances in materials and design tools, leaf spring performance can be significantly improved:
Finite Element Analysis (FEA)
- Enables visualization of stress concentration points.
- Assists in optimizing leaf geometry before manufacturing.
Shot Peening
- Introduces beneficial compressive residual stress.
- Increases fatigue strength by 30–50%.
Parabolic Leaf Springs
- Although not “conventional,” this design improves stress distribution by varying thickness along the leaf length.
- Reduces weight and enhances ride quality.
Material Advances
Traditional leaf springs are made from EN45, 55Si7, or SUP9 steel. New materials and treatments include:
- High-strength low-alloy (HSLA) steel: Offers better strength-to-weight ratio.
- Composite materials: Used in some modern vehicles, these reduce weight and eliminate interleaf friction, although they are costlier.
Real-World Application: Trucks and Buses
In commercial vehicles, proper stress and load management is critical:
- Overloading can lead to spring sagging or breakage.
- Drivers report changes in handling when stress distribution is poor.
- Fleet operators use data from load sensors to monitor suspension performance.
Government regulations often require leaf springs to be rated and tested for specific Gross Vehicle Weight Ratings (GVWR).
Conventional leaf spring remain an integral part of vehicle suspension systems due to their robustness and load-handling capabilities. Understanding stress distribution and managing load paths within the spring structure is vital for maximizing durability and ensuring safe, comfortable operation.
As technology evolves, improvements in design analysis, materials, and manufacturing methods continue to enhance the performance of these tried-and-tested components. A well-designed conventional leaf spring doesn’t just carry weight—it does so intelligently, spreading stress and adapting to changing loads with every turn of the wheel.
