Power and Precision: The Role of 12V Electric Winches for 4x4 Vehicles in Australia

When the conversation turns to off-road recovery gear, there’s one tool that sparks both fascination and debate among 4WD enthusiasts: the winch. More specifically, 12v electric winches for 4x4 vehicles have become the most common recovery solution, balancing practicality, affordability, and sheer pulling power. But what makes them the standard choice over hydraulic or PTO winches? And how do they actually function under the hood?

This technical deep dive explores the mechanics, performance factors, and real-world advantages of 12v electric winches, with a special focus on how Carbon Off Road designs them for Australian conditions.

Understanding the Basics: Why 12V?

Most modern 4WDs are equipped with 12V electrical systems, making compatibility straightforward. A 12V winch ties directly into the vehicle’s battery and alternator system. This eliminates the need for complex setups or external power units, unlike hydraulic or PTO winches which rely on engine-driven systems.

The benefits are clear:

• Ease of installation : bolt it to your bull bar or winch plate, connect wiring, and you’re good to go.
• Universality : works with nearly all consumer 4WDs.
• Cost efficiency : fewer moving parts compared to hydraulic systems.

The Core Components of a 12V Winch

A winch isn’t just a spool of rope. It’s a finely engineered machine designed to transform electrical energy into mechanical force. Here’s a closer look at the guts of a typical 12V electric winch:

-Electric Motor

• Usually a series-wound motor, capable of producing high torque at low speeds.
• Series-wound designs excel at short bursts of heavy load perfect for pulling a bogged 4WD out of sand or mud.

-Gear Train

• Most winches use a three-stage planetary gear system.
• This setup multiplies torque while maintaining compact size and efficiency.

-Drum

• The rotating cylinder that stores the winch rope.
• Designed with precision machining to avoid uneven spooling and reduce rope wear.

-Brake System

• Automatic load-holding brakes prevent rollback when the motor stops.
• Essential for safety, especially on steep inclines.

-Control Solenoid & Remote

• Solenoids handle high-current switching safely.
• Modern winches include both wired and wireless remotes for convenience.

Rope: Synthetic vs Steel in Technical Terms

• Synthetic rope (often UHMWPE fibres) has a high strength-to-weight ratio, floats on water, and is safer if it snaps since it doesn’t store as much kinetic energy.
• Steel cable remains popular for abrasive environments but is heavy and more dangerous under tension.

Carbon Off Road predominantly recommends synthetic rope due to ease of handling, weight savings, and reduced strain on the winch motor.

Power Demands and Electrical Considerations

A 12V winch can draw anywhere from 200 to 500 amps under load. This has serious implications:

• Battery capacity : A dual-battery setup is strongly advised for frequent winch use.
• Alternator output : Stock alternators may struggle; upgrading ensures better recharge cycles.
• Wiring gauge : Undersized cables create heat and voltage drop, reducing winch performance.

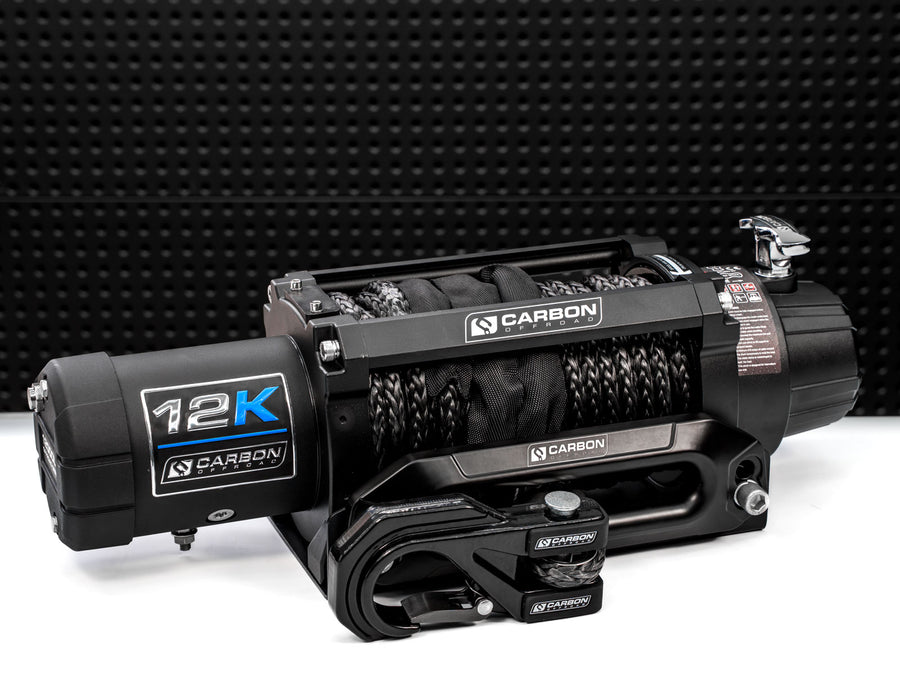

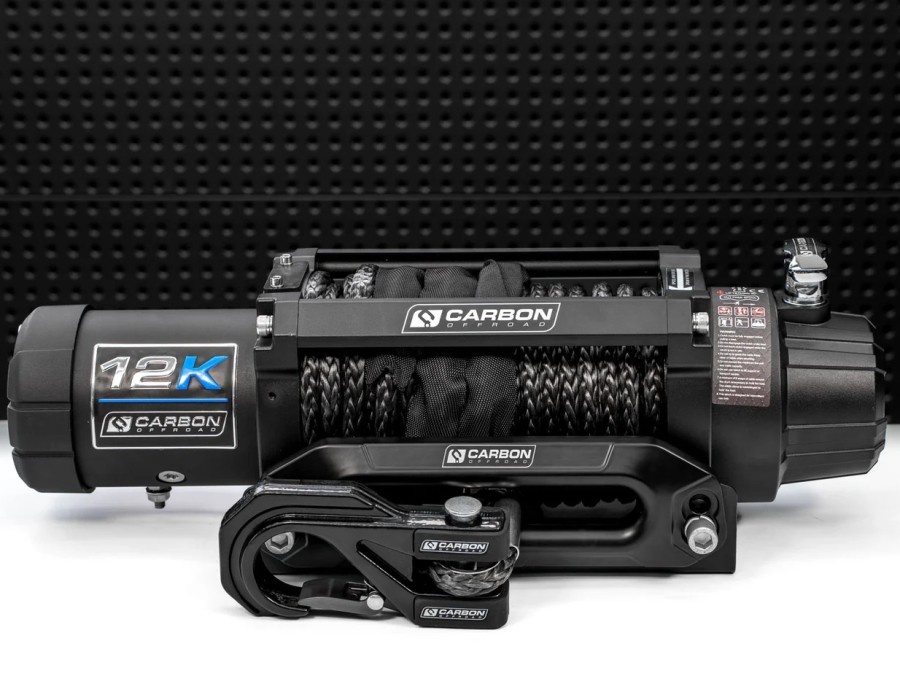

For example, Carbon Off Road’s 12K winch is engineered with heavy-duty cabling and sealed solenoids to handle these high electrical stresses reliably.

Performance Metrics That Matter

When evaluating winches, enthusiasts should move beyond marketing claims and focus on measurable performance indicators:

-Line Pull Rating

• Expressed in pounds (lb) or kilograms (kg).
• Must exceed 1.5x your vehicle’s GVM (gross vehicle mass).

-Line Speed

• The rate at which the winch retrieves rope under load.
• Faster speeds = quicker recoveries, but can stress motors.

-Duty Cycle

• Refers to how long a winch can operate before overheating.
• Quality 12V winches balance cooling design with efficient gearing.

-Ingress Protection (IP) Rating

• IP68 means total dust protection and submersion resistance essential for creek crossings and muddy tracks.

Advantages of 12V Electric Winches in the Field

• Self-sufficiency : Recover without relying on others.
• Precision : Control line pull speed with finesse.
• Versatility : Suitable for sand, mud, snow, or rocky climbs.
• Cost-effectiveness : Lower initial investment than hydraulic winches.
• Aftermarket support : Easy access to spares, upgrades, and accessories.

Why Carbon Off Road Excels in 12V Winches

While many brands manufacture 12V winches, Carbon Off Road adds refinements specifically for Australian conditions:

• Sealed solenoids to protect against water ingress.
• Synthetic rope kits for lighter, safer recoveries.
• Compact housings that fit popular bull bars without modification.
• Balanced gearing for both speed and pulling strength.
• Customer support & warranty backed by an Australian-owned company.

Case Study: A Recovery in the Victorian High Country

Imagine a LandCruiser 200 bogged axle-deep in a clay track after heavy rain. With a 12V electric winch rated at 12,000 lbs:

1. The operator anchors to a nearby tree with a protector strap.
2. The synthetic rope is fed through a snatch block, doubling pulling power.
3. At 300 amps draw, the winch steadily reels in rope at ~2m/min under load.
4. Automatic braking holds the vehicle steady when pausing for repositioning.

In under 15 minutes, the Cruiser is free with no risk to passengers or damage to equipment.

Pairing Accessories for Maximum Efficiency

To get the most out of a 12V electric winch, pair it with:

• Snatch blocks to increase pulling capacity.
• Rated shackles/soft shackles for secure connections.
• Tree trunk protectors to preserve anchor points.
• Winch dampers for rope safety.

Carbon Off Road recovery kits conveniently bundle these essentials.

The Future of 12V Winches

Emerging technologies are improving winches every year:

• Wireless smart remotes with load sensors.
• Brushless motors offering cooler, more efficient operation.
• Lighter synthetic ropes with higher tensile strength.

Carbon Off Road is already adopting many of these upgrades, keeping their gear at the cutting edge.

Final Thoughts

For most Australian off-roaders, 12v electric winches for 4x4 vehicles strike the perfect balance of practicality, affordability, and raw pulling power. They’re engineered to integrate seamlessly with everyday 4WD setups while delivering the performance needed to tackle serious recoveries.

And when those winches carry the Carbon Off Road name, you’re not just buying hardware you’re investing in reliability tested against some of the harshest conditions in the world.

If you’re planning your next outback trip or coastal run, make sure your 4WD is equipped with a quality 12V electric winch. It’s the one upgrade that guarantees you’ll always have an escape plan.
