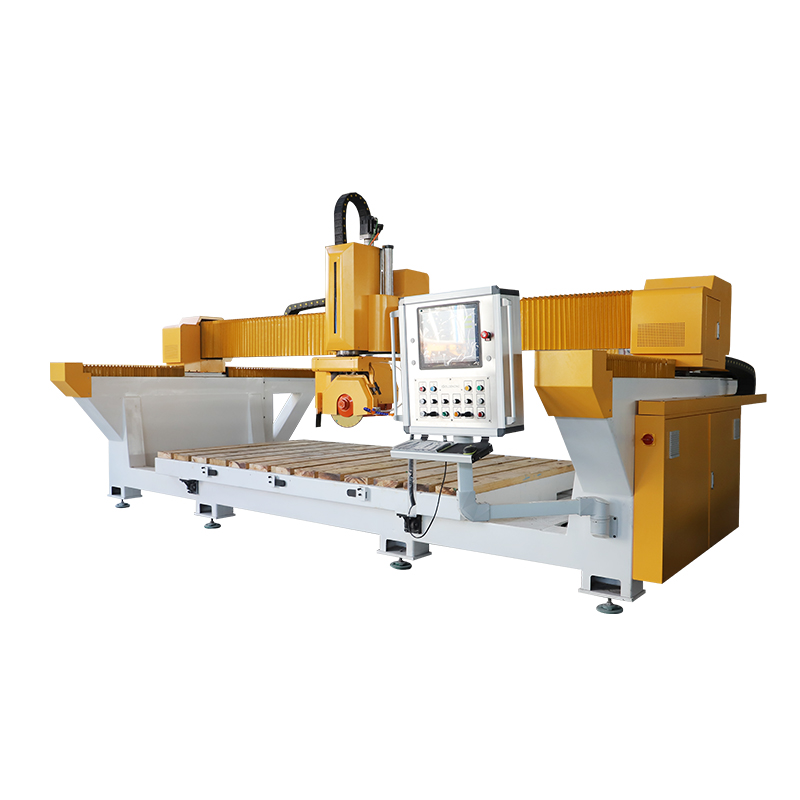

5 Axis Bridge Saw IGS-B(Pro)
Intelligent five-axis bridge saw is a comprehensive five-axis processing equipment. It has the function of taking photos, positioning and typesetting, automatic measurement of plate thickness and tool size, and the head can rotate 360 degrees. Cutting, edging, chamfering, digging and other multi-functional intelligent operating system, simple and easy to learn; High quality motor, high precision, fast speed; Transverse, longitudinal, arc, circular, arbitrary Angle, shape cutting. The machine head can move and rotate freely. Besides cutting modeling, it can also open material for large plate, 45 degree chamfering, open basin hole, stove hole, and slash line cutting.
Suitable for quartzite, rock plate, artificial stone, granite, marble all kinds of large and small stone decoration engineering stone processing machinery. Save plate save time save worry save effort!
Saw blade motor
The machine head automatically flips ±360 degrees,7.5kw/11kw / 15kw/18.5kw。
Laser positioning
Laser positioning function, more accurate standard, improve the accuracy.
Photo layout function(opention)
After taking photos through the camera, it can be automatically typeset, saving time and effort, more accurate and efficient.
Automatic touch screen cutcam system
Professional CNC system, easy to set and machining, touch control, simple operation.
Suction cup displacement(opention)
Using suction cup to move the plate, more convenient and labor saving, prevent over cutting.
Automatic reproduction
Standard automatic copy function, the maximum can be turned over 80 degrees, convenient automatic loading and unloading.
CNC Stone Cutting Machine Application
This five-axis stone bridge saw is good at cutting, milling, chamferingm, and edging various stone materials. It can realize table cutting, Roman column cutting, circular arc cutting, irregular edge cutting, etc. And it can be used to process sanitary ware, stone furniture, interior decoration, etc. For example, it can be used to make washbasin, bathroom countertop, stone table, dining table, kitchen table, kitchen cabinet basin, background wall, Roman edge stone decoration, etc.
5 Axis Bridge Saw Cutting Machine Advantage
- 1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
- 2. It is equipped with a high-precision on-board camera, which brings higher-definition images and can provide high-precision stone processing. Moreover, it can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.
- 3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.
- 4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting, 45 miter cutting, drilling, external edge polishing, etc.
- 5. The robotic system has a lift capacity of 75 kgs for stone slab moving.
- 6. The 5-axis cutting head can miter and interpolate in any direction.
Bridge Saw for Marble, Granite and Stone
5 axis CNC stone cutting bridge saw adopts an automatic computer control system, which can realize manual programming or CNC programming and other programming methods to automatically complete cutting operations. It can conveniently perform horizontal cutting, longitudinal cutting, arc cutting, elliptical cutting, round cutting, arbitrary angle cutting, concave-convex edging, shaped cutting, special-shaped processing and more occasions with powerful functions.
5 Axis Bridge Saw
5 axis CNC bridge saw is an automatic stone machining equipment that can complete the processing of pentahedron special-shaped curved surfaces at one time through five-axis linkage control, that is, three linear moving axes and two rotating axes.
It is a type of Automatic CNC Machine tailor-made for the majority of stone fabricators by IGOLDENCNC in order to meet the cutting plans of stone machining manufacturers. It has various processing modes of cutting, milling, engraving, and drilling. The bridge saw features with multiple functions, small footprint, simple operation, precise cutting, quick and convenient conversion of different functions.
5 Axis CNC Marble Stone Bridge Saw Machine Assembly Line
5 Axis CNC Bridge Saw Machine Quartz Slab Production Line for Stone Cutting and Polishing
What Can 5 Axis CNC Cutting Bridge Saw Do?
The 5 axis CNC bridge saw can cut any shape of stone lines, arc edges, duckbill edges, straight edges, beveled edges, non-slip grooves, dry hanging grooves, sink processing, and special-shaped edge forming.
- 1. Countertop cut: blank slab cutting, rear gear cutting, reverse buckle cutting, hanging material, L-shaped table to length, corner cutting reserved, 45-degree chamfered front mouth, pot hole, stove hole, Diagonal line cutting, cutting at any angle of the wall crenel.
- 2. Automatic cut: Realize the import of CAD drawings, cutting completely according to the drawing style, no need to enter complex data.
- 3. Bridge cut: It has all the functions of bridge cutting equipment on the market.
- 4. Roman column cut: Cut the square Roman column main board and both sides at one time, and simultaneously chamfer 45 degrees on both sides to complete the Roman column hole cutting.
- 5. Arc-shaped line cut: Install the line grinding head to complete the arc-shaped line shape, and cut into a rough arc-shaped line as a whole, which requires manual polishing.
- 6. Concave-convex cut: According to the arc, grind out the desired convex or concave plate. It is mainly used for grinding and making curved plates of special-shaped background walls or special-shaped decorative panels.
- 7. Abnormity cut: To solve the problem of uneven walls, cut out asymmetric quadrilaterals or isosceles trapezoids.
Bridge Stone Saw Application
The 5 axis CNC stone bridge saw is good at cutting, milling, chamfering and edging quartz, marble, artificial stone and slabs in regular and irregular shapes. It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling. The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.
Features of 5 Axis CNC Stone Cutting Bridge Saw for Countertop with Granite, Marble, Quartz
Through the optimization of the process parameters by the numerical control system, the product data files can be stored in modules and called manually. The ideal effect of extremely coordinated movement of each precision component is realized. The process of machine cutting stone slabs can realize automatic and intelligent cutting of stone materials through the pre-setting of the cutting coding program and the automatic operation of the cutting process, so as to achieve the mass production of stone slabs.
1. The integrated design gives the machine more advantages, such as occupying small space, easy installation and debugging, high precision, stable performance, easy operation and so on.
2. Bridge, sliding rails and blade holder are built in strong and stiff cast iron for stability, durability and low resonance.
3. Cutting head rotate 90°, tilting 45° suitable for chamfering cutting.
4. 0° to 360° cutting head rotation and 0° to 90° cutting head tilting.
5. The worktable installs independently, the hydraulic console panel level 0, 45°, 90° turns. Worktable tilting vertical turn 85°, easier and safe loading raw materials.
6. The CNC bridge saw is made up of main motor, longitudinal slicing part, worktable assembly, electric control system, hydraulic system and so on.
7. The CNC bridge saw is equipped with infrared tool setting gauge, to accurately adjust the cutting size.
8. Once all the parameters are well setting, it is not necessary to have workers watching on machine. It will automatically stop once it finishes the cutting. It is an ideal automation equipment of stone slab cutting machine.
