Inconel 601 flanges are highly versatile components used in industries requiring exceptional resistance to heat and corrosion. These flanges, manufactured from a nickel-chromium alloy, exhibit superior mechanical strength and oxidation resistance, making them ideal for applications in harsh environments. This article delves into the features, types, and applications of Inconel 601 flanges, emphasizing their significance in modern industrial processes.

Key Features of Inconel 601 Flanges

1. Corrosion Resistance: Inconel 601 flanges offer excellent resistance to oxidation and corrosion, even in high-temperature environments.
2. High-Temperature Strength: These flanges maintain their mechanical properties at elevated temperatures, making them suitable for extreme heat conditions.
3. Oxidation and Carburization Resistance: The material’s composition prevents scaling and carburization, even under cyclic heating and cooling conditions.
4. Durability: With a balanced combination of strength and toughness, these flanges withstand mechanical stress and thermal cycling effectively.
5. Ease of Fabrication: Inconel 601 is readily weldable and machinable, ensuring ease of manufacturing and installation.

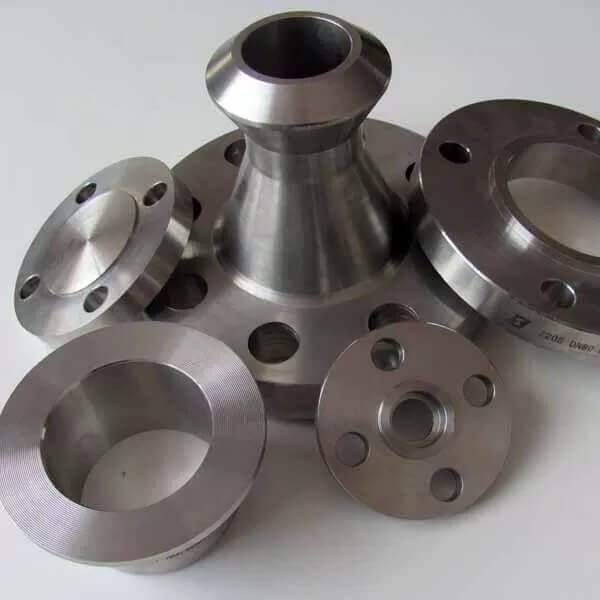

Types of Inconel 601 Flanges

1. Slip-On Raised Flanges: Easy to install and align, suitable for low-pressure applications.
2. Weld Neck Raised Flanges: Designed for high-pressure and high-temperature environments, providing a seamless connection.
3. Hung Flanges: Used in applications requiring enhanced flexibility and movement.
4. Outwardly Weakened Flanges: Suitable for specialized applications demanding reduced flange thickness.
5. Connection Weld Flanges: Provide robust and reliable joint integrity for critical applications.
6. Ring Joint Sort Flanges: Ideal for high-pressure environments, ensuring leak-proof connections.
7. Presentation Blind Flanges: Used to seal off piping systems or vessels, preventing flow.
8. Long Weld Neck Flanges: Extend support for pipes and equipment in high-pressure systems.
9. Nipo Flanges: A combination of flanges and pipes for specialized connections.

Production Techniques

Inconel 601 flanges are produced using advanced forging and machining techniques to ensure precise dimensions and optimal performance. Stringent quality control measures are applied during each production stage, including heat treatment and finishing processes.

Testing and Quality Assurance

To ensure reliability, Inconel 601 flanges undergo rigorous testing, including:

• Non-Destructive Testing (NDT): For detecting surface and subsurface defects.
• Hydrostatic Testing: To verify pressure-retaining capabilities.
• Chemical Composition Analysis: Ensuring compliance with material standards.
• Dimensional Inspection: To maintain precise specifications.

Applications of Inconel 601 Flanges

1. Aerospace: Used in jet engine igniters and turbine components.
2. Power Generation: Ideal for heat exchangers, boilers, and gas turbines.
3. Pollution Control: Employed in catalytic converters and exhaust systems.
4. Petrochemical Industry: Suitable for high-temperature chemical processing.
5. Nuclear Reactors: Provide durability and resistance to corrosive environments.

Standards and Compliance

Inconel 601 flanges comply with international standards, including:

• ASTM B564: Standard specification for nickel alloy forgings.
• ASME B16.5: Dimensions for flanges and flanged fittings.
• ASME B16.47: Standards for large-diameter steel flanges.

Conclusion

Inconel 601 flanges stand out as a reliable choice for applications requiring exceptional resistance to heat and corrosion. Their versatility and performance ensure their relevance across industries, including aerospace, power generation, and petrochemical sectors. By adhering to stringent production and testing standards, these flanges deliver unmatched reliability and efficiency in demanding environments.
