Inconel 601 flanges are high-performance components crafted from a nickel-chromium alloy known for its exceptional resistance to heat, oxidation, and corrosion. These flanges are widely used in industries such as aerospace, chemical processing, power generation, and marine applications, where mechanical strength and thermal stability are crucial. The unique properties of Inconel 601 make it an ideal choice for flange manufacturing under extreme service conditions.
What is Inconel 601?
Inconel 601 is a nickel-based alloy that contains significant amounts of chromium and iron, offering outstanding resistance to high-temperature oxidation and carburization. It also retains good mechanical properties even after prolonged exposure to high heat. The alloy’s composition typically includes:
- Nickel (Ni): ~58%
- Chromium (Cr): ~21-25%
- Iron (Fe): Balance
- Aluminum (Al): ~1-1.7%
This alloy is specifically engineered to resist spalling even under severe thermal cycling and high-temperature conditions, making it ideal for applications involving continuous exposure to heat.

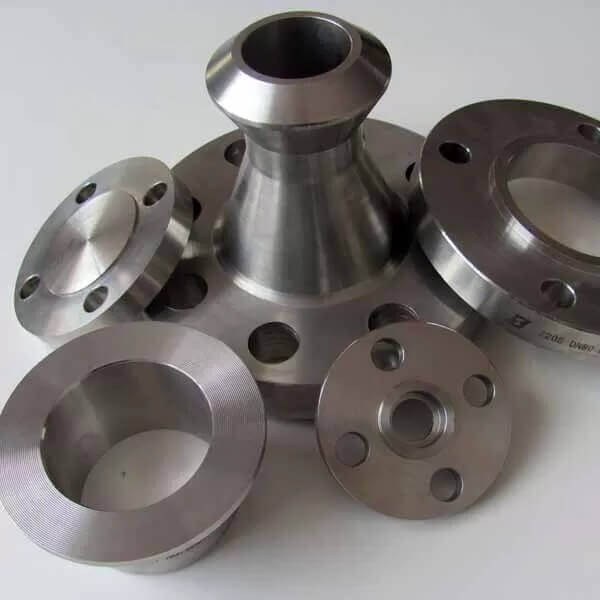

Types of Inconel 601 Flanges
Inconel 601 flanges are manufactured in various types to suit different connection needs and industrial environments:
- Slip-On Raised Face (SORF) Flanges
- Easy to install and align
- Ideal for low-pressure, non-critical applications
- Weld Neck Flanges
- Provide excellent stress distribution
- Used in high-pressure and high-temperature environments
- Blind Flanges
- Used to seal off pipe ends or pressure vessel openings
- Suitable for high-pressure systems
- Socket Weld Flanges
- Ideal for small pipe diameters
- Provide a smooth bore and better fluid flow
- Lap Joint Flanges
- Used in systems requiring frequent disassembly
- Paired with a stub end fitting
- Threaded Flanges
- Suitable for piping systems without welding
- Best for low-pressure and low-temperature conditions
- Ring-Type Joint (RTJ) Flanges
- Ensure leak-proof sealing in high-pressure systems
- Typically used in oil & gas industries
Key Properties of Inconel 601 Flanges
- Excellent High-Temperature Resistance: Maintains strength and oxidation resistance up to 1200°C (2200°F).
- Superior Oxidation Resistance: Forms a tightly adherent oxide layer that resists spalling.
- Corrosion Resistance: Resists various acids, marine environments, and aggressive chemicals.
- Good Mechanical Strength: Retains tensile strength and toughness in elevated temperatures.
- Workability: Readily fabricated by conventional machining, welding, and forming methods.
Applications of Inconel 601 Flanges
Due to their exceptional durability and resistance properties, Inconel 601 flanges are used in:
- Heat treating equipment (furnace fixtures, muffles, retorts)
- Gas turbine components and aerospace heat shields
- Petrochemical and chemical processing plants
- Power generation (boilers, superheaters, recuperators)
- Pollution control systems (incinerators, scrubbers)
- Marine and offshore engineering components
Standards and Specifications
Inconel 601 flanges are manufactured according to various international standards to ensure quality, safety, and compatibility:
- ASTM B564 / ASME SB564 – For forged flanges
- ASME B16.5 – Pipe flanges and flanged fittings
- ASME B16.47 Series A & B – Large diameter flanges
- DIN, EN, JIS, BS Standards – For global applications
Conclusion
Inconel 601 flanges provide a high-performance, long-lasting solution for challenging industrial environments that demand heat resistance, mechanical strength, and corrosion protection. Their versatility across industries such as aerospace, chemical processing, and power generation makes them an essential component in critical systems. When reliability under extreme conditions is non-negotiable, Inconel 601 flanges are a trusted choice.
