In material testing, understanding how a material behaves under sudden impact is critical for product safety, durability, and performance. Whether it’s plastics, metals, composites, or polymers, manufacturers rely on Izod Charpy Impact Testers to measure toughness and resistance to fracture.
What is an Izod Charpy Impact Tester?

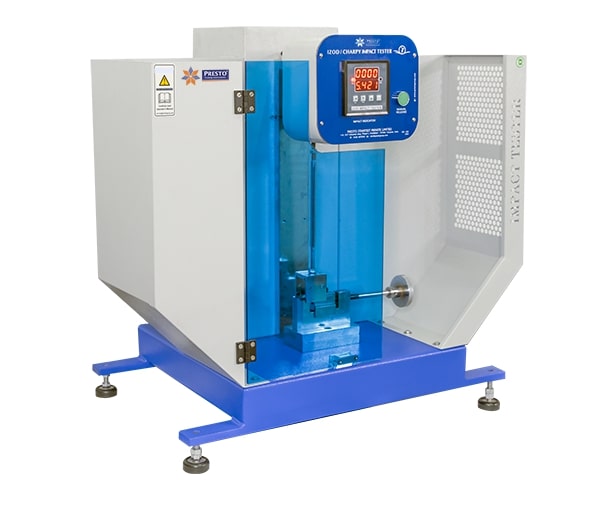

An Izod Charpy Impact Tester is a precision instrument designed to measure the amount of energy a material absorbs during a sudden impact. This test helps determine the material’s impact strength, which is essential for structural applications where brittleness or sudden failure could be catastrophic.
The device operates by swinging a pendulum to strike a notched test specimen, recording the energy absorbed to break the material. The results provide valuable data for design engineers, quality control teams, and research laboratories.
Understanding the Izod Impact Test
The Izod Impact Test is a standardized method for evaluating a material’s resistance to sudden shocks. The process involves:
- Specimen Preparation: A test sample with a standard notch is prepared, as the notch amplifies stress concentration.
- Mounting: The specimen is clamped vertically in the testing machine.
- Impact: A pendulum strikes the specimen at a controlled height.
- Energy Measurement: The instrument measures the energy absorbed by the material to fracture.
The results are typically expressed in joules (J) or foot-pounds (ft-lb) and indicate how brittle or tough a material is under sudden impact conditions.
Difference Between Izod and Charpy Tests
While both Izod test and Charpy test measure impact resistance, they differ in specimen orientation and method:
- Izod Test: The specimen is clamped vertically, and the pendulum strikes the upper part of the notch.
- Charpy Test: The specimen is supported horizontally as a simply supported beam, and the pendulum strikes the notch in the middle.
Both tests provide complementary data and are widely used in material selection, quality control, and compliance testing.
Applications of the Izod Impact Test
The Izod Impact Tester is used across industries for a variety of applications:
- Metals: Evaluating toughness for automotive components, pipelines, and structural materials.
- Plastics and Polymers: Testing materials used in consumer products, electronics, and packaging.
- Composites: Ensuring materials used in aerospace, sports equipment, and high-performance applications are safe and durable.
- Quality Control: Verifying batch-to-batch consistency in production processes.
Importance of an Izod Impact Test Lab Report
A detailed Izod impact test lab report is critical for documenting results, ensuring compliance, and guiding design decisions. A typical lab report includes:
- Test specimen details (dimensions, material type, notch configuration)
- Testing conditions (temperature, pendulum height, and calibration data)
- Energy absorbed by the specimen (impact strength)
- Observations about fracture characteristics
- Comparison with standard material specifications
These reports are often required by clients, regulatory authorities, and certification agencies to demonstrate that materials meet required performance standards.
Factors Affecting Izod Test Results
Several variables can influence the outcome of an Izod impact test, including:
- Material Type: Different metals, plastics, and composites absorb energy differently.
- Temperature: Materials often become more brittle at lower temperatures, affecting impact strength.
- Notch Type and Size: The geometry of the notch significantly impacts stress concentration.
- Specimen Dimensions: Consistent sample dimensions are crucial for accurate testing.
- Machine Calibration: Properly calibrated machines ensure reliable and reproducible results.
Benefits of Using an Izod Impact Tester
- Accurate Material Assessment: Determines toughness and fracture behavior reliably.
- Quality Assurance: Ensures products meet required mechanical performance.
- Research and Development: Guides material selection for new products.
- Compliance: Helps meet international standards like ASTM D256, ISO 180, and IS 1757.
- Cost-Effective: Identifies potential material failures early, reducing recalls and maintenance costs.
Final Thoughts
An Izod Charpy Impact Tester is an essential tool for engineers, manufacturers, and quality control labs focused on material safety and durability. By performing an Izod impact test and generating a comprehensive Izod impact test lab report, companies can make informed decisions about material selection, product design, and safety compliance.
Investing in a reliable Izod impact tester not only ensures accurate testing but also strengthens your product’s performance, reduces risk, and builds trust with customers and clients. For industries where toughness and resilience matter, the Izod test is an indispensable part of material evaluation.
Ensure your materials meet the highest impact resistance standards with our Izod Charpy Impact Testers. Conduct precise Izod impact tests and generate detailed Izod impact test lab reports with ease. Contact us today at +91 9210 903 903 or [email protected] for expert guidance and pricing.
