Marine plumbing systems are complex networks that demand durability, reliability, and corrosion resistance. Boats and ships are constantly exposed to harsh environmental conditions, including saltwater, humidity, temperature fluctuations, and mechanical stress. The plumbing system in a marine environment must function flawlessly, as failure could lead to catastrophic consequences such as flooding, system malfunctions, or contamination of drinking water.
Among the various components that constitute a marine plumbing system,brass fittings play a critical role. These are the connectors, joints, adapters, and couplers that bring the entire system together. Of the many materials used in marine fittings, stands out as a traditional favorite. It has been employed for decades due to its favorable properties, such as excellent machinability, corrosion resistance (particularly in freshwater systems), and ease of installation.
This article explores in depth the use of brass fittings in marine plumbing systems. It covers their composition, benefits, limitations, applications, compatibility with other materials, and a comparison with alternative materials like bronze and plastic.
Understanding Brass: Composition and Characteristics
Brass is a metal alloy primarily composed of copper and zinc. The ratio of these elements can vary, resulting in different types of brass with unique properties. Other elements, such as lead, tin, or aluminum, may also be added in small amounts to enhance specific characteristics like machinability or corrosion resistance.
Typical brass compositions used in plumbing fittings include:
- Free-machining brass (e.g., C36000): High lead content, excellent machinability
- Naval brass (e.g., C46400): Contains about 60% copper, 39% zinc, and 1% tin for enhanced corrosion resistance in marine environments
Key Properties of Brass:
- Corrosion Resistance: Brass performs well in many environments, especially freshwater. In seawater, however, standard brass may be prone to dezincification, a type of corrosion where zinc is leached from the alloy, leaving behind a porous, weakened copper structure.
- Malleability and Machinability: Brass is easy to form, cut, and shape, making it ideal for precision fittings.
- Thermal Conductivity: Brass conducts heat well, which can be beneficial in some marine systems, like cooling loops.
- Aesthetic Appeal: Brass has a golden sheen that is visually appealing and often used in decorative marine applications.

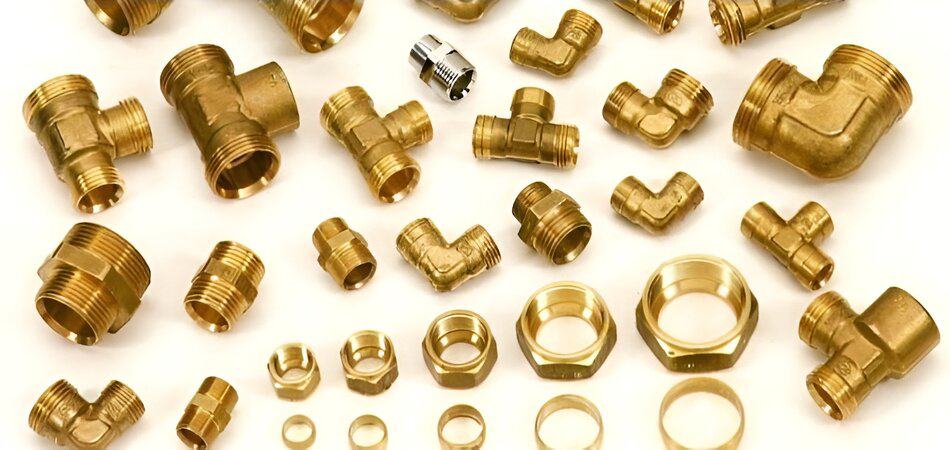

Types of Brass Fittings Used in Marine Plumbing
Brass fittings in marine plumbing come in various forms and serve different purposes. Here are some of the most commonly used types:
1. Elbows
- Used to change the direction of the piping, typically by 45 or 90 degrees.
- Commonly found in tight engine compartments or below-deck plumbing.
2. Tees
- Allow for the division or combining of water flow.
- Useful in complex distribution systems where water needs to be supplied to multiple outlets.
3. Adapters
- Used to connect dissimilar pipe types or diameters.
- Often employed when transitioning between plastic and metal piping.
4. Couplings and Unions
- Connect two pieces of pipe in a straight line.
- Unions are especially helpful for sections of pipe that may need disassembly for maintenance.
5. Valves (Ball, Gate, Check)
- Brass ball valves are common in marine systems due to their reliability and ease of operation.
- Valves control water flow and prevent backflow (especially important in bilge and engine cooling systems).
6. Hose Barb Fittings
- Designed for flexible hose connections.
- Hose barbs are ribbed to ensure a secure grip on the hose, typically used with hose clamps.
Applications of Brass Fittings in Marine Plumbing
Brass fittings are used in numerous applications within marine plumbing systems. Their placement depends on the water type (fresh vs. salt), system pressure, and compatibility with other materials.
1. Freshwater Systems
- Brass is an excellent choice for freshwater applications such as potable water lines, sinks, showers, and toilets.
- Corrosion resistance in these systems is usually not a major concern, and brass’s long service life makes it a favorable option.
2. Fuel Systems
- Brass is compatible with many types of fuel and is often used in fuel line connections, filters, and shut-off valves.
- Important: Marine-grade brass should always be verified for fuel compatibility to prevent deterioration or fire hazards.
3. Cooling Systems
- Engine cooling loops that use raw water or heat exchangers often employ brass fittings, especially in areas that are not in constant contact with seawater.
- Care must be taken if saltwater is used; marine-grade brass or bronze may be required.
4. Bilge and Drainage Systems
- Used in low-pressure drainage and bilge pump connections.
- May include check valves to prevent backflow and overflow.
5. Instrumentation and Sensors
- Brass is often used to house temperature sensors, pressure gauges, and other measurement devices in the plumbing system.
Advantages of Brass Fittings in Marine Use
Brass fittings offer several compelling benefits that make them popular in marine applications, especially in systems not exposed directly to seawater:
1. Ease of Installation
- Brass fittings can be threaded, soldered, or compression-fitted, making installation relatively straightforward.
2. Cost-Effective
- Brass is less expensive than bronze while still offering adequate performance in many situations.
3. Versatile Compatibility
- Can be used with copper, PEX, and other types of piping materials.
4. Good Pressure Tolerance
- Brass fittings can handle relatively high pressures, suitable for many marine system requirements.
5. Readily Available
- Standardized fittings make sourcing and replacement easy, even during emergency repairs at sea.
Limitations and Concerns of Brass in Marine Environments
Despite its advantages, brass is not without drawbacks, especially in the demanding marine environment.
1. Dezincification
- As noted earlier, zinc can leach out of standard brass in the presence of saltwater, especially under warm, high-flow conditions.
- This results in weakened fittings, which can become brittle and fail without visible warning.
2. Electrolytic Corrosion (Galvanic Corrosion)
- When brass fittings are used with dissimilar metals (e.g., stainless steel or aluminum), galvanic corrosion can occur.
- Saltwater acts as an electrolyte, accelerating the corrosion process if not properly managed with dielectric fittings or bonding systems.
3. Limited Lifespan in Seawater
- Even "marine-grade" brass fittings may degrade over time if constantly exposed to seawater.
- For below-waterline or seawater systems, bronze or stainless steel may be preferred.
4. Not All Brass is the Same
- Inferior quality brass, particularly those not certified for marine use, may fail quickly.
- Always look for ABYC-certified or marine-grade components.
Brass vs. Other Materials in Marine Plumbing
To better understand the role of brass fittings, it's essential to compare them with alternative materials commonly used in marine plumbing.
Brass vs. Bronze
PropertyBrassBronzeCompositionCopper + ZincCopper + Tin (and other metals)Corrosion ResistanceModerateExcellentCostLowerHigherDezincification RiskYesNoCommon UseFreshwater systemsSeawater systems, below-waterline applications
Bronze is superior in terms of seawater corrosion resistance and is the preferred material for through-hull fittings, seacocks, and other critical underwater hardware. However, brass remains more economical for non-critical or interior plumbing uses.
Brass vs. Stainless Steel
PropertyBrassStainless SteelCorrosion ResistanceGoodExcellentStrengthModerateHighCostModerateHighMachinabilityEasyDifficultGalvanic PotentialModerateLower (316L is better)
Stainless steel is often chosen for high-pressure or structural applications. However, its hardness makes it harder to work with, and it's more expensive than brass.
Brass vs. Plastic (PVC, PEX, Nylon)
PropertyBrassPlasticDurabilityHighModerate to HighCorrosion ResistanceModerateExcellentFlexibilityLowHigh (PEX)CostModerateLowUV ResistanceHighVariable
Plastic fittings are lightweight, corrosion-proof, and increasingly popular. However, they may not have the mechanical strength or temperature tolerance of brass and are more prone to damage from overtightening or impact.
Best Practices for Using Brass Fittings in Marine Systems
To ensure brass fittings perform well and last long in marine plumbing, adhere to the following best practices:
- Use Certified Marine-Grade Brass
- Look for fittings labeled for marine use, or consult specifications such as ASTM B124 or ABYC standards.
- Avoid Use in Seawater-Exposed Systems
- Reserve brass for freshwater systems, interior applications, and above-waterline plumbing.
- Install Dielectric Unions
- Prevent galvanic corrosion when joining dissimilar metals by using dielectric unions or isolation fittings.
- Regular Inspections
- Monitor for signs of dezincification: pinkish discoloration, pitting, or crumbling metal.
- Apply Proper Sealants
- Use marine-grade thread sealants or PTFE tape approved for brass fittings.
- Bonding and Grounding
- Ensure fittings are properly bonded in the vessel’s electrical system to prevent electrolysis damage.
Conclusion
Brass fittings have long been a staple in marine plumbing systems, valued for their ease of use, availability, and reasonable corrosion resistance. While they are not suitable for every application—particularly those involving continuous exposure to saltwater—brass remains a viable, cost-effective option for many marine plumbing needs, especially in freshwater or internal systems.
The key to successful use lies in selecting the right type of brass, understanding its limitations, and implementing best practices in installation and maintenance. When used appropriately, brass fittings can provide years of dependable service on the water.
For critical applications or when working in particularly aggressive marine environments, alternatives such as bronze, stainless steel, or high-grade plastics may offer better long-term performance. Ultimately, choosing the right fitting material is not just about cost or availability—it’s about ensuring the safety, efficiency, and longevity of your marine plumbing system.
