Arc flash incidents represent one of the most severe and unpredictable electrical hazards in industrial environments. When an arc fault occurs, the electrical discharge between conductors or to ground can reach temperatures exceeding 35,000°F (19,400°C)—hotter than the surface of the sun. This intense thermal event releases a blast of energy that includes molten metal, pressure waves, ultraviolet and infrared radiation, and deafening noise levels.
To shield workers from these life-threatening exposures, arc flash kits are engineered as a complete system of protective garments and equipment designed to resist both thermal and electrical hazards. Unlike standard flame-resistant (FR) workwear, these kits are scientifically developed using advanced materials, multi-layer systems, and rigorous testing to meet or exceed global safety standards.
This article explores the engineering principles behind arc flash kits—how they achieve thermal insulation, electrical resistance, comfort, and durability—while maintaining the highest levels of protection in demanding conditions.
Understanding the Hazard: Incident Energy and Arc Behavior
An arc flash produces a concentrated burst of thermal energy known as incident energy, measured in calories per square centimeter (cal/cm²). This value determines how much heat is transferred to a surface located a certain distance from the arc. The higher the incident energy, the greater the risk of skin burns, molten metal exposure, and clothing ignition.
Protective clothing must therefore withstand this radiant and convective energy without transmitting enough heat to cause second-degree burns. Engineering an effective arc flash kit starts with understanding the relationship between incident energy, arc duration, distance, and available fault current.
Modern safety standards, such as NFPA 70E and IEC 61482, classify protection levels based on this incident energy exposure. Arc flash kits are designed to correspond to these energy thresholds—commonly rated at 8, 12, 25, 40, or even 100 cal/cm².
Arc Rating, ATPV, and EBT Explained
The primary performance indicators for arc flash clothing are:
- Arc Thermal Performance Value (ATPV): The incident energy level at which there is a 50% chance of causing a second-degree burn.
- Energy Break-Open Threshold (EBT): The incident energy at which the fabric breaks open or tears.
- Arc Rating: The official protective value of the fabric or garment, which is the lower of the ATPV or EBT.
For example, if a fabric has an ATPV of 42 cal/cm² and an EBT of 38 cal/cm², its arc rating will be 38 cal/cm².
This conservative approach ensures the material will not fail before it reaches its rated protection threshold.
Material Engineering: The Foundation of Protection
1. Inherent Flame-Resistant Fibers
The foundation of any arc flash kit lies in its material composition. Fabrics are constructed using inherently flame-resistant fibers, such as:
- Aramids (e.g., Nomex®, Kevlar®) – exceptional thermal stability and mechanical strength.
- Modacrylics – self-extinguishing synthetic fibers that resist ignition.
- FR-treated cotton blends – provide comfort while maintaining flame resistance through chemical treatment.
These fibers are chosen not only for their ability to resist ignition and melting, but also for their thermal stability under intense energy exposure. The key engineering challenge is balancing protection with comfort—achieving high arc ratings without excessive weight or stiffness.
2. Multi-Layer Fabric Systems
Arc flash protection relies on multi-layer garment construction, where each layer serves a specific purpose:
- Inner layer: Moisture-wicking and insulating base for comfort.
- Middle layer: Additional thermal barrier and air-trapping insulation.
- Outer shell: Primary defense against radiant and convective heat.
Air gaps between layers significantly enhance protection by slowing heat transfer. The cumulative protection often exceeds the simple sum of individual layer ratings due to the insulating effect of trapped air.
Thermal Protection Mechanisms
Arc flash kits are engineered to manage heat transfer through several mechanisms:
- Thermal Insulation: Multiple fabric layers reduce conductive and convective heat flow to the skin.
- Radiant Heat Reflection: Certain fabrics and coatings reflect infrared energy, reducing absorption.
- Char Formation: FR materials form a protective char layer that resists further burning.
- Self-Extinguishing Behavior: The fabric stops burning when the heat source is removed, preventing secondary fires.
- Molten Metal Resistance: The outer surface repels or resists adhesion of molten copper or aluminum particles ejected during an arc event.
This thermal engineering ensures that even in high-energy arcs, the worker experiences limited skin temperature rise—below the burn injury threshold.
Electrical Protection and Shock Resistance
While thermal hazards dominate in an arc flash, electrical insulation remains critical. Arc flash kits are designed to:
- Avoid conductive components such as metal zippers, buttons, or rivets.
- Include non-conductive fasteners made of FR-rated plastic or composite materials.
- Use antistatic fabrics to prevent charge accumulation and spark discharge.
- Pair with insulating gloves and boots to protect against direct shock hazards.
The full system must function as an electrically safe envelope, isolating the worker from conductive paths and molten metal bridging.
Design and Construction Engineering
Every seam, closure, and panel is engineered for maximum reliability under arc exposure:
- Seams: Reinforced with flame-resistant threads to prevent seam failure.
- Closures: Secured using FR-rated zippers and hook-and-loop systems covered by storm flaps.
- Cuffs and Collars: Adjustable closures to seal openings and prevent heat ingress.
- Hoods and Face Shields: Engineered to protect the head, neck, and face using arc-rated visors tested to withstand high incident energies.
The ergonomic design of arc flash kits also plays a major role. Engineers aim for unrestricted movement through articulated knees, elbows, and gusseted shoulders—enhancing comfort and compliance without compromising coverage.
Testing, Standards, and Certification
Engineering arc flash kits involves compliance with rigorous international testing protocols to ensure consistent protection levels:
- ASTM F1506: Specifies performance requirements for textiles used in electrical protective clothing.
- ASTM F1959: Determines the arc rating (ATPV/EBT) of fabrics.
- IEC 61482-1-1 (Open Arc Test): Measures performance under open-air arc conditions.
- IEC 61482-1-2 (Box Test): Simulates a confined arc environment to evaluate garment integrity.
- NFPA 70E: Establishes PPE category requirements based on calculated incident energy exposure.
Each component—from the fabric to the final assembled garment—is subjected to controlled arc exposure tests, ensuring its performance aligns with the rated protection category. Only after meeting all criteria can it be certified and labeled with its arc rating (cal/cm²).
System Integration: Head-to-Toe Protection
A complete arc flash kit includes several integrated components designed to work as a unified protection system:
Component
Function
Arc-rated hood & face shield
Protects head, neck, and face from radiant heat, molten metal, and pressure waves

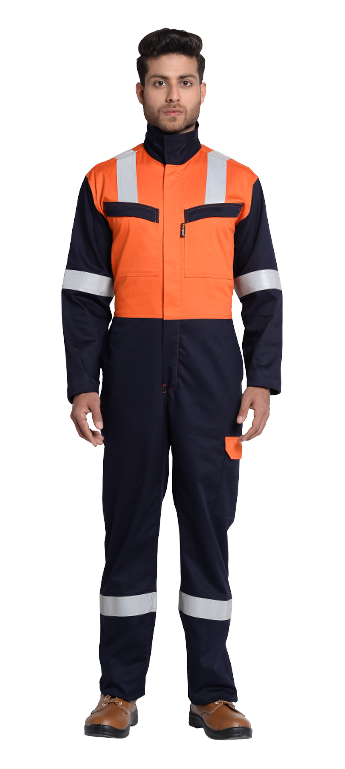

Coverall or jacket-trouser set
Provides full-body protection with overlapping design to eliminate gaps
Arc-rated gloves
Defend hands from thermal and electrical exposure
Insulated boots
Prevent conduction through the ground path
Balaclava
Protects facial gaps not covered by the visor
Storage bag
Prevents contamination that can reduce arc resistance
For high-energy tasks, the system may include ventilated hoods, cooling vests, and double-layer balaclavas to maintain comfort without reducing performance.
Durability and Maintenance Engineering
Arc flash kits are designed not just for protection but for longevity under real-world conditions. Engineering considerations include:
- Laundering Resistance: Inherent FR fabrics retain protection even after dozens of wash cycles.
- Abrasion Resistance: Reinforced knee, elbow, and shoulder panels extend garment life.
- Contamination Control: Oils and flammable residues can compromise protection; hence, kits must be stored and cleaned per manufacturer instructions.
- Label Durability: Arc rating and certification labels are made from heat-resistant materials to remain legible over time.
Manufacturers also define inspection intervals and end-of-life criteria, ensuring the gear remains effective throughout its service period.
Engineering Challenges and Innovations
- Weight vs. Protection:
- Higher protection ratings often mean thicker, heavier garments. Modern material science focuses on lightweight, high-strength fibers that provide the same protection at lower weights, improving worker mobility and comfort.
- Heat Stress Management:
- Prolonged use of heavy arc flash kits in hot environments can lead to heat stress. Engineers now incorporate breathable weaves, moisture management layers, and cooling systems into kit designs.
- Visibility and Ergonomics:
- Reflective trims are essential for low-light environments but must also be arc-rated. Engineers use non-conductive reflective materials to maintain both visibility and safety.
- Sustainability:
- Advanced manufacturing practices aim to produce recyclable or lower-impact FR fabrics, extending product life and reducing waste.
Best Practices for Manufacturers
Manufacturing a high-performance arc flash kit requires adherence to strict engineering discipline:
- Define target incident energy rating based on hazard analysis.
- Select inherently FR, non-conductive materials that meet or exceed those ratings.
- Engineer multi-layer systems with tested air gap insulation.
- Design for full-body coverage with ergonomic fit and mobility.
- Validate through third-party arc testing under recognized standards.
- Implement batch-level quality assurance and traceability.
- Provide clear labeling, care instructions, and user training to ensure proper use and maintenance.
The Engineering Balance: Safety, Comfort, and Performance
The effectiveness of an arc flash kit depends on how well it balances three core elements:
- Safety: Maximum resistance to thermal and electrical hazards.
- Comfort: Lightweight, breathable, and ergonomically designed for mobility.
- Durability: Consistent performance throughout its lifespan, even after repeated use.
An overprotective but uncomfortable kit can reduce compliance, while a lighter but under-rated kit can result in severe injury. The engineering objective is to find the optimal equilibrium between protection level and practical usability.
Arc flash kits represent the pinnacle of engineering in personal protective equipment. Behind every certified garment lies a combination of material science, heat transfer modeling, electrical insulation design, and ergonomic innovation.
Each element—fiber selection, layering technique, seam design, and certification testing—plays a crucial role in ensuring that when an arc flash occurs, the worker has the best possible defense against catastrophic injury.
In modern industrial safety, these kits embody the perfect intersection of science and protection, transforming raw engineering principles into life-saving equipment. When properly designed, worn, and maintained, an arc flash kit not only meets standards—it defines them.
