Reliable communication is essential for safe and efficient air travel. A good airband antenna on your aircraft helps with clear voice transmission and improved signal reception. To maximize your aerial communication capabilities, it is important to follow key principles. These principles apply to both civilian and military operations, whether domestic or international

Choosing the right aviation antenna is the first step in upgrading your aircraft’s communication system. Multiple factors determine the selection of an optimal model. These factors include operational needs and the airplane itself. Seeking improved safety? Extended range? Advanced inflight entertainment? Follow these tips for informed aircraft band antenna buying.

Understand Relevant Frequencies

Civilian planes primarily use VHF antenna frequencies between 118–137 MHz for navigation and transmission to ground stations. Commercial jets integrate UHF from 225–400 MHz for onboard wifi and connectivity. And GPS navigation relies on signals at 1575 MHz.

So first, identify what band(s) an antenna must cover for interfacing with your avionics equipment. Aviation antennas specified for Airband or VHF mobile provide the essentials. Combine models if both civil and military-grade communication abilities border on 400 MHz are needed.Choose Directional vs Omnidirectional

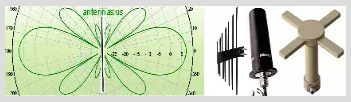

Omnidirectional antennas radiate and receive evenly across 360 degrees. This versatile coverage works well for both transmission and reception without needing precise aiming.

S-Band Directional Antenna focuses the signal into a tighter beam. It extends the range in specific directions. High-gain directional aircraft antennas help strengthen inflight communication with distant ground towers or satellites.

Consider Antenna Gain

An aviation antenna’s “gain” indicates signal power — higher gain means farther reach. But note directionals with 7–9 dBi gain have very focused beams requiring precise pointing.

2–4 dBi gains are usually good for general aviation. They don’t require narrow tuning.

Use Quality Cabling

The connecting coaxial cable carries radio signals between an antenna and the interior transceiver. RG-400 cables efficiently handle high-power transmissions without signal loss. Or invest in durable Teflon jacketing for cables exposed on external antenna mounts.

Ensure Durability

Aircraft antennas endure substantial mechanical stress from vibration, wind, and temperature extremes. Certified models have rugged internal construction. They also have weatherproof housings. These housings are made of sealed aluminum alloy or reinforced composites. They can survive airborne conditions.

Perform Ground Testing

Before the first flight, use an SWR meter to tune the newly mounted antenna for optimal impedance against the transceiver frequency. This “standing wave ratio” check confirms everything is integrated properly for safe operation. Consider ordering a spare antenna as a backup.

Explore Custom-Engineering Options

A fully customized antenna design remains the most reliable route for specialized avionics requirements. Aviation Band Preamplifier allows the development of a solution tuned precisely to your plane model. It also considers equipment specs, operating frequencies, and directional needs. This is for peak inflight performance.

Work closely with an aviation integration expert. Plan custom antenna specs. Do 3D modeling. Prototype the system. Conduct rigorous real-world testing. Then, manufacture your optimized system.

Trust the Antenna Experts

Upgrading flight communication is smoother when partnering with avionics specialists. They combine deep RF engineering expertise with a passion for aviation.

Antennas.us has been trusted for over 65 years. They create tailored antenna solutions and advise on ideal setups. This helps maximize inflight safety and efficiency. They rely on their full-service custom design, manufacturing, and installation capabilities. These capabilities support private through commercial aircraft worldwide.

Choosing the Right Airband Antenna

Civilian aviation uses the 118-137MHz spectrum for navigation and communication. Frequencies are assigned in 25kHz or 8.33kHz channel spacing. So your aircraft VHF antenna needs tuning to one or both bandwidths.

For domestic U.S. flights, a single 25kHz VHF band antenna usually works fine. International travel may require an additional 8.33kHz antenna to interface with other countries’ systems.

Directional vs Omnidirectional

Omnidirectional antennas send/receive signals equally all around. Directional ones focus into a specific bearing for longer-distance transmission/reception to ground towers when flying broader routes.

Gain

An antenna's gain indicates signal strength – higher gain means clearer audio for both transmitting and receiving. But higher gain directional antennas have a narrower focus, so consider the operational context.

Rugged and Aerodynamic Construction

Aircraft antennas must withstand vibration, moisture, UV rays, and wind speeds exceeding 168mph. Durability starts with the interior coil and joint mechanisms. Exterior radomes streamline airflow while protecting inner electronics.

Installation Considerations

Proper placement and installation preserve antenna effectiveness. Keep away from metal fuselage or other equipment emitting electromagnetic interference. Choose a height that allows 360° contact with ground stations for omnidirectional models. Employ experienced technicians for drilling and mounting.

Adding a Quality Preamplifier

Aviation band preamplifiers strengthen signals the transceiver receives for boosted range and clearer sound. They also clarify transmission signals sent from onboard mics.

Key Preamp Benefits:

• Compensates cable losses between antenna and radio
• Filter noise from line interference
• Adjustable gain dial fine-tunes signal clarity
• Easy in-line installation

Just take care not to overamplify to distortion levels. An integrated LED indicator on some models displays relative signal strength for quick adjustments in light.

Custom-Engineering Solutions

Off-the-shelf antennas and preamps don’t always meet an aircraft’s specialized needs. Custom engineering allows matching specific frequency, gain, and radiation patterns for any flight purpose and plane model. It requires partnering with an expert design team to:

• Evaluate operational parameters
• Model options via simulation software
• Rapid prototype candidates
• Physically test and revise
• Production finalized equipment

This process ensures that your antenna is built to be highly efficient for your specific aviation needs. You can get custom antenna design services. They can make modular or mobile systems for you. This is helpful when your needs change.

The Future of Connected Flight

Emerging antenna technology continues expanding aerial communication capabilities in exciting ways:

• Multi-band models combining civil, military, and satellite frequencies in one unit
• Conformal antennas integrating directly into aircraft hull materials
• “Smart antenna” software for adjusting radiation patterns and tuning inflight
• Antennas with embedded cybersecurity protocols
• High-throughput models for inflight WiFi/entertainment

With aviation antennas now pivotal for navigation, pushing the boundaries of speed, bandwidth, distance, flexibility and security remains essential.

Reach New Heights in Aerial Communication

Equipping your aircraft correctly is important for passenger safety and operational efficiency. It ensures smooth voice and data transmission during the flight. Antennas.us can help with off-the-shelf or custom-engineered systems for aviation. They have expertise in the radio frequency domain. Reach out today to evaluate options for upgrading your airborne comms to the next level.
