Carbon SA 516 Grade 60 HIC Steel Plate,Manfacturs,Suppliers,Stocklist,Exporters

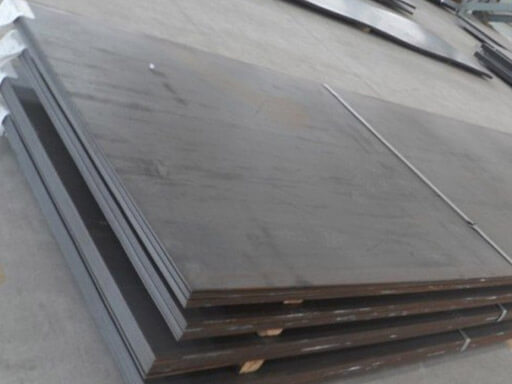

Introduction:- Carbon SA 516 Grade 60 HIC Steel Plate
Carbon SA 516 Grade 60 HIC steel plate is a type of carbon steel known for its strength, toughness, and resistance to hydrogen-induced cracking (HIC). It is primarily used in the manufacturing of pressure vessels and boilers due to its ability to withstand high-pressure environments and corrosive conditions.
SA 516 Grade 60 is an American Society for Testing and Materials (ASTM) specification for pressure vessel plates. It contains carbon, manganese, and other elements in carefully controlled quantities to achieve desired mechanical properties and resistance to various forms of stress.
The HIC (Hydrogen Induced Cracking) specification ensures that the steel plate can withstand environments where hydrogen-induced cracking is a concern, making it suitable for applications in the oil and gas industry and other sectors where exposure to hydrogen sulfide and other corrosive substances is common.
This grade of steel provides good weldability and notch toughness, offering a balance between strength and ductility. It typically has a yield strength of around 38,000 psi (260 MPa) and a tensile strength of 60,000 psi (415 MPa), though these values can vary slightly depending on the manufacturer and specific heat treatment.
Product Overview :-
Chiranjiv Steel Centre is known for manufacturing, supplying, and exporting high-quality plates made from different alloys. We are proud to offer top-notch SA 516 GR.60N WITH NACE + HIC PLATES to the market. These plates meet both international and national standards and are well-regarded for their quality.
At our company, we take great pride in our ASME SA 516 GR.60N WITH NACE HIC PLATES BOILER PLATE. These plates are made from top-notch carbon steel, with added manganese, sulphur, and other key elements. They are built to last through fluctuating temperatures, making them a perfect choice for sectors such as petrochemicals.
Specifications:-
Specification Of Carbon SA 516 Grade 60 HIC Steel Plate
Grade
ASME SA 516 GR.60N Boiler and Pressure Vessel Steel Plates
Width
1000mm-4500mm
Thickness
5mm-150mm
Length
3000mm-18000mm
Supply Condition
As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested
-52° C
Tempering
Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications
Used for Boilers and Pressure Vessels Application.
Process of Manufacturing
Hot-Rolled (HR)
Benefits:-
These plates are specially designed for use in boiler pressure vessels and are known for their outstanding flexibility, ease of welding, and strength. Their unique combination of mechanical and chemical properties guarantees a long-lasting and dependable performance in both moderate and lower temperature settings. Whether you're a manufacturer, supplier, stockist, or exporter, we have a variety of plate options available in various thicknesses, sizes, and specifications to meet a wide range of industrial requirements.
Our SA 516 GR.60N NACE HIC PLATES are used in various industries such as heat exchangers, chemical, offshore, pulp and paper, marine, and oil and gas. These plates demonstrate our commitment to quality and innovation with their corrosion resistance, pitting, and crevice resistance, as well as abrasion resistance.
Conclusions:-
Here at Chiranjiv Steel Centre, our main focus is making sure our customers are happy with our products. We work hard to go above and beyond their expectations. We are known for our high quality products and we always follow strict standards to maintain our reputation as leaders in the industry. As manufacturers, suppliers, stockists, and exporters, we are proud of our track record of providing top-notch products that cater to the various needs of our clients.
