How to Perform Peel Testing on Various Materials with Different Peel Tester Machines

Peel testing is a method of measuring the peel strength or peel resistance of various materials, such as adhesives, tapes, labels, coatings, films, and laminates. Peel testing can help to evaluate the quality and performance of these materials, as well as their suitability for different applications and environments. Peel testing can also help to optimize the design and selection of these materials, as well as their processing and curing conditions.

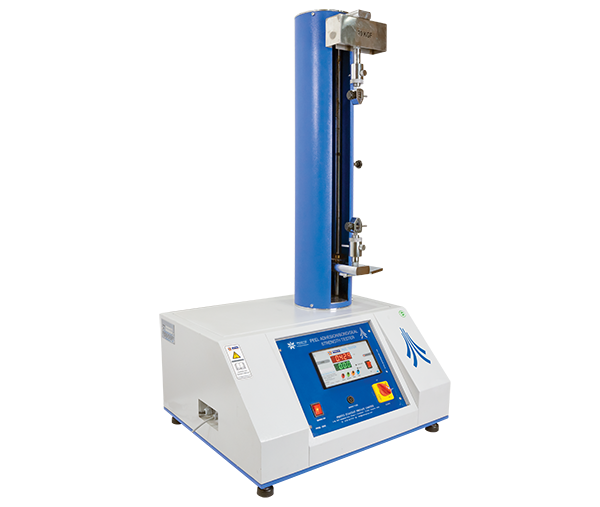

To perform peel testing, you need a peel tester machine, which is a device that can apply a controlled peeling force to a material specimen and measure the resulting peel strength or peel resistance. A peel tester machine typically consists of the following components:

• A load cell that can detect and measure the peeling force applied to or by the material specimen. The load cell can have different capacities and resolutions, depending on the expected range and accuracy of the peeling force.

• A display unit that can show the peel strength or peel resistance value in various units, such as newtons, pounds, or grams. The display unit can also store and export the peel data to a computer, printer, or other devices.

• A moving platform that can move the material specimen at a constant or variable speed, depending on the test method and standard. The moving platform can have different travel lengths and speeds, depending on the expected range and accuracy of the peel displacement.

• A grip that can hold the material specimen securely and prevent it from slipping or tearing during the test. The grip can have different types and sizes, depending on the shape and thickness of the material specimen.

it is important to choose the right type of peel tester machine for your peel testing needs, based on the following factors:

• The type and properties of the material: Different materials have different peel properties and behaviors, and may require different test angles and speeds. For example, materials that have a rigid backing may have a higher peel strength or peel resistance at a 90 degree angle than at a 180 degree angle, while materials that have a flexible backing may have a lower peel strength or peel resistance at a 90 degree angle than at a 180 degree angle. Similarly, materials that have a high elasticity or viscosity may require a higher test speed than materials that

have a low elasticity or viscosity.

• The purpose and scope of the test: Depending on the purpose and scope of the test, you may need different levels of accuracy, repeatability, and functionality from your peel tester machine. For example, if you are testing for basic quality control, you may only need a simple and economical peel tester machine that can perform a single test with a single parameter. However, if you are testing for advanced research and development, you may need a sophisticated and expensive peel tester machine that can perform multiple tests with different parameters, and provide more data and analysis.

• The test standards and specifications: Depending on the industry and application, you may need to follow certain test standards and specifications that prescribe the type and configuration of the peel tester machine, as well as the test procedure and data interpretation. For example, if you are testing tapes, you may need to follow ASTM D3330, ISO 29862, or other tape testing standards. If you are testing coatings, you may need to follow ASTM D903, ISO 8510, or other coating testing standards.

Choosing the right type of peel tester machine for your peel testing needs is not an easy task, but it is a crucial one. By considering the factors mentioned above, you can make an informed decision that will help you to measure the peel strength or peel resistance of your materials accurately and reliably, and improve the quality and performance of your products. To know more about the Peel Strenght Tester offered by Presto Group, you can visit their website or contact them at +91 9210 903 903. You can also download their latest product catalogue cum company profile from their website.
