How to Interpret CCTV Drain Survey Reports

CCTV drain survey have become an essential tool in the field of civil engineering and drainage management. They allow for a detailed inspection of drainage systems, providing insights that are crucial for maintenance and repairs. Understanding how to interpret the results of these surveys is vital for engineers, property owners, and maintenance teams alike. This article will delve into the methodology behind CCTV drain surveys, the components of the reports generated, and how to extract meaningful information from them, ultimately enhancing the management of drainage systems.

Understanding CCTV Drain Surveys

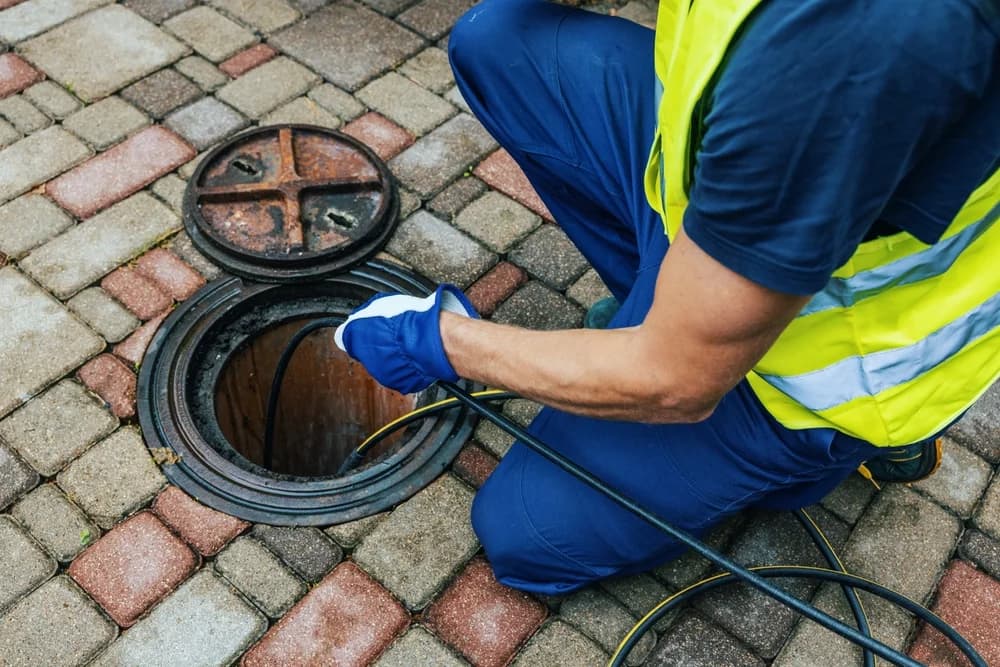

A CCTV drain survey involves using a high-resolution camera mounted on a flexible rod that is inserted into drainage pipes. This technology allows for real-time video footage of the internal condition of the drainage system. It can effectively identify issues such as blockages, leaks, structural damage, and root intrusions. The ability to conduct a thorough inspection without excavation makes CCTV surveys both cost-effective and less invasive.

The data collected during the survey is analyzed, and a report is generated, detailing the condition of the drainage system. This report serves as a crucial document for decision-making regarding repairs, maintenance, and future inspections. However, interpreting the findings requires a certain level of understanding of the terminology, grading systems, and common issues that may be identified during the survey.

Components of a CCTV Drain Survey Report

To interpret a CCTV drain survey report effectively, one must first familiarize themselves with its key components. While reports may vary in format depending on the service provider, there are several elements that are typically included:

1. Executive Summary

The executive summary provides a brief overview of the findings from the CCTV drain survey. This section usually highlights the main issues identified, the condition of the drainage system, and any recommendations for further action. It is essential to read this section first, as it sets the tone for the detailed findings that follow.

2. Survey Methodology

This section outlines the techniques used during the survey, including details about the equipment, the length of the surveyed drains, and the specific areas inspected. Understanding the methodology is crucial, as it provides context for the findings and ensures that the survey was conducted using industry-standard practices.

3. Condition Grading

Most CCTV drain survey reports employ a grading system to assess the condition of the drains. Common grading scales range from 1 to 5, where a grade of 1 indicates excellent condition with no defects, while a grade of 5 indicates severe structural failure or blockage. Familiarizing oneself with the grading system used in the report is essential for interpreting the severity of the issues identified.

4. Detailed Findings

This section provides a detailed account of the condition of each surveyed section of the drainage system. It may include specific observations regarding blockages, cracks, misalignments, and other defects. Each finding is typically accompanied by a video reference, allowing the reader to review the footage for a more comprehensive understanding.

5. Recommendations

Based on the findings, the report will usually offer recommendations for repairs or further investigations. These recommendations can range from routine maintenance to urgent repairs, depending on the severity of the identified issues.

Interpreting the Findings

Now that we have a clear understanding of the components of a CCTV drain survey report, let's explore how to interpret the findings effectively.

Recognizing Common Issues

When reviewing the detailed findings section of the report, it is vital to recognize common issues that may be highlighted:

• Blockages: Blockages may be caused by debris, grease buildup, or tree roots intruding into the pipes. A blocked drain can lead to significant issues, including flooding and structural damage. It is essential to determine the cause of the blockage and take immediate action if it is severe.
• Cracks and Fractures: Cracks in drainage pipes can result from ground movement, corrosion, or external pressure. Depending on the severity, these issues may require repair or replacement of affected sections of the pipe.
• Misalignment: Pipes may become misaligned due to ground movement or improper installation. Misalignment can lead to reduced flow and increased risk of blockages. Understanding the extent of misalignment is crucial for determining the need for corrective measures.
• Tree Root Intrusions: Roots can infiltrate drainage systems, leading to blockages and damage. Identifying the presence of roots and determining their extent is essential for planning effective removal and preventing future intrusions.

Understanding Grading System Implications

The condition grading system used in the report is a vital tool for prioritizing repairs and maintenance. For example:

• Grade 1: Indicates no action is required. Routine maintenance is sufficient.
• Grade 2: Suggests minor defects that may require monitoring but not immediate action. Regular inspections should be scheduled to ensure the situation does not worsen.
• Grade 3: Indicates moderate defects that should be addressed within a specific timeframe to prevent escalation.
• Grade 4: Suggests severe defects that require urgent attention. Repairs should be prioritized to avoid further damage.
• Grade 5: Indicates critical failure. Immediate action is necessary to prevent catastrophic failure of the drainage system.

Understanding the implications of the grading system allows for informed decision-making regarding repair priorities and budgeting for maintenance.

Utilizing Video Footage

One of the unique advantages of CCTV drain surveys is the ability to review video footage alongside the report. This visual evidence offers an unparalleled opportunity to understand the condition of the drainage system firsthand. By referencing the video footage linked to specific findings, stakeholders can gain a clearer picture of the issues and assess the urgency of the required actions.

The Importance of Professional Expertise

While interpreting CCTV drain survey reports can be relatively straightforward, it is essential to recognize the value of professional expertise. Engaging qualified drainage engineers or consultants ensures that the findings are interpreted accurately and that appropriate actions are taken. These professionals have the experience and knowledge to assess the condition of the drainage systems comprehensively and recommend effective solutions.

Moreover, they can provide context regarding local regulations and best practices, ensuring that any necessary repairs or maintenance align with industry standards. Their insights can also help in developing a long-term maintenance plan, reducing the risk of future drainage issues.

Conclusion

In conclusion, interpreting CCTV drain survey reports is a critical skill for anyone involved in the management and maintenance of drainage systems. By understanding the components of the report, recognizing common issues, and utilizing professional expertise, stakeholders can make informed decisions that enhance the effectiveness and longevity of their drainage systems.

As urban environments continue to grow and evolve, the importance of effective drainage management will only increase. Engaging with experts in the field can streamline the process of interpreting survey results and implementing necessary actions. If you are looking to ensure the health of your drainage systems, consider reaching out to Onn Point Civil Engineering. Our experienced team is ready to assist you in understanding your CCTV drain survey results and developing effective maintenance strategies. Contact us today for a consultation to safeguard your drainage infrastructure!
