Eccentric plug valves are an advanced type of rotary control valve widely used to regulate fluid flow in demanding industrial environments. Featuring an offset, or “eccentric,” plug that rotates to control fluid passage, these China Control Valves offer significant advantages over traditional plug valves — including improved sealing, reduced friction, and longer service life. Their robust design makes them ideal for handling erosive, viscous, and otherwise challenging fluids in industries such as mining, petroleum refining, power generation, and pulp and paper.

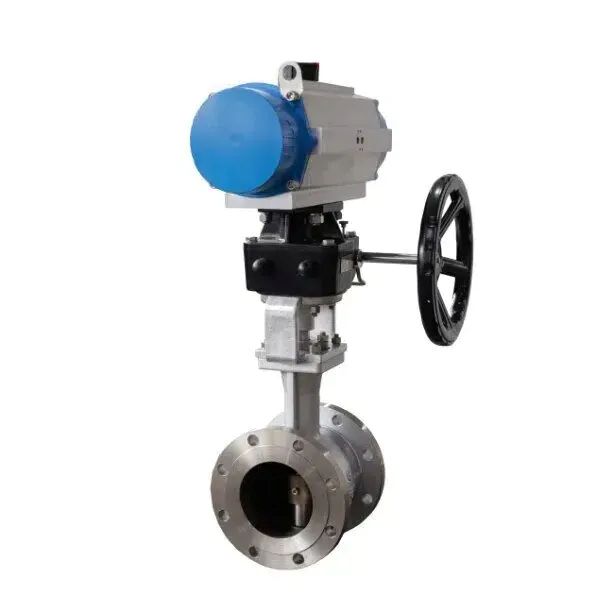

What Are Eccentric Plug Valves?
Unlike conventional plug valves with a centrally aligned plug, eccentric plug valves position the plug off-center, creating a cam-like rotation during operation. This design minimizes direct contact between the plug and seat, reducing friction and wear. Typically constructed from stainless steel or high-performance alloys, eccentric plug valves are built for tough environments where abrasive or viscous fluids like slurries are common.
These valves provide both throttling and on/off control and feature flanged connections for easy integration into piping systems. Their durability and precise control capabilities make them essential in critical applications requiring reliable fluid management.
How Do Eccentric Plug Valves Work?
The eccentric plug rotates away from the valve seat in a cam-like motion when opened, progressively opening the flow path with minimal friction. When closing, the plug re-aligns tightly against the seat to create a secure seal. This gradual seating action prevents sudden pressure spikes and leakage, enhancing valve longevity and system safety.
Importance of Flow Direction in Eccentric Plug Valves
Correct flow direction is vital for optimal valve performance. Manufacturers mark eccentric plug valves with a preferred flow orientation to guide installation.
Why flow direction matters:
- Effective Sealing: Proper flow alignment ensures the plug seats correctly to prevent leakage.
- Reduced Wear: Correct orientation minimizes friction and extends valve life.
- Lower Pressure Drop: Proper flow reduces resistance, improving system efficiency.
Consequences of misalignment include:
- Increased maintenance and replacement costs due to accelerated wear.
- Potential system failures caused by improper sealing.
- Decreased operational efficiency from higher pressure losses.
Industrial Applications of Eccentric Plug Valves
Eccentric plug valves excel in industries that require tough, reliable flow control of difficult fluids:
- Slurry Handling: Ideal for mining operations where abrasive particle-laden fluids flow.
- Petroleum Refining: Used to regulate heavy hydrocarbons and crude oil streams.
- Power Generation: Control steam, water, and other fluids under high pressure and temperature.
- Pulp and Paper: Manage chemicals and liquids in bleaching and pulping processes.
- Food and Beverage: Handle viscous fluids and maintain sanitary conditions.
Advantages of Eccentric Plug Valves
- Reduced Friction: Offset plug reduces contact with seat, minimizing wear.
- Precise Flow Control: Smooth cam-like operation enables fine regulation.
- High Durability: Resistant to erosive and corrosive media.
- Low Maintenance: Less wear translates to fewer repairs and longer service intervals.
- Versatility: Suitable for a broad spectrum of challenging fluid control applications.
Conclusion
Eccentric plug valves offer a robust, efficient solution for industrial flow control, providing precise regulation and extended service life. Ensuring the correct flow direction during installation is critical for maximizing performance, reducing maintenance costs, and maintaining system safety. With their unique design and durability, eccentric plug valves are a dependable choice across diverse industries handling challenging fluids. Know more about Google SEO Directory
