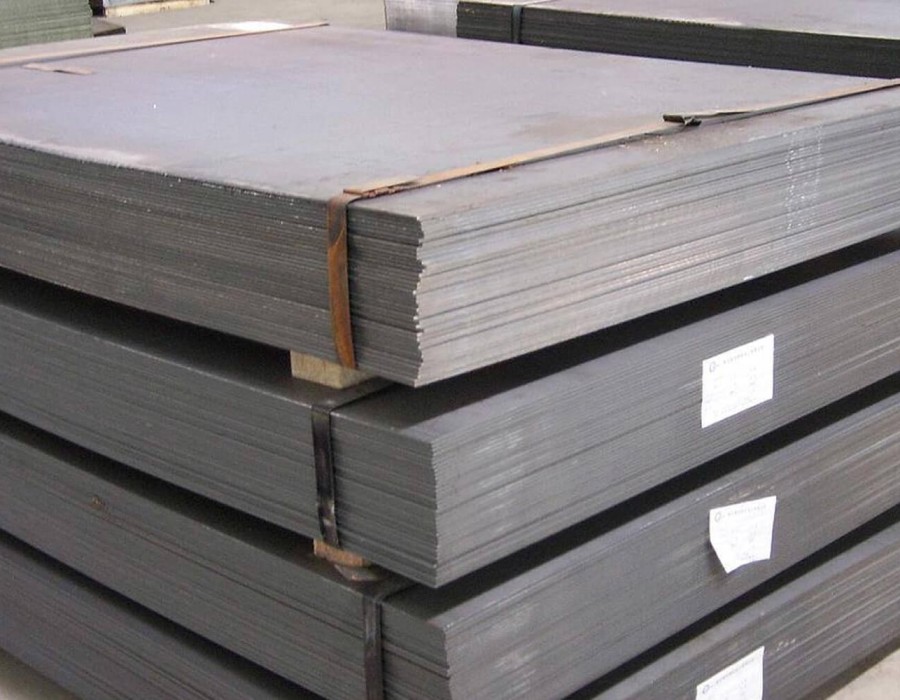

A516 steel plates are widely recognized for their exceptional strength, durability, and versatility in various industrial applications. In this blog, we'll delve into the fundamental aspects of A516 steel plate, including their composition, grades, and specifications, to comprehensively understand this essential material in engineering and manufacturing.
Composition of A516 Steel Plates:
A516 steel plates are primarily carbon and low-alloy steel, with specific chemical compositions tailored to achieve desired mechanical properties. The typical composition of A516 steel includes the following:
- Carbon (C): 0.25-0.31%
- Manganese (Mn): 0.79-1.60%
- Phosphorus (P): 0.035% (maximum)
- Sulfur (S): 0.035% (maximum)
- Silicon (Si): 0.13-0.45%
- Nickel (Ni): 0.55-0.98%
- Chromium (Cr): 0.15-0.40%
- Molybdenum (Mo): 0.08-0.30%
These alloying elements contribute to the strength, toughness, and weldability of A516 steel plates, making them suitable for various applications in various industries.
Grades of A516 Steel Plates:
A516 steel plates are available in different grades, each designed to meet specific pressure vessel and boiler application requirements. The most common grades of A516 steel plates include:
1. A516 Grade 55: Designed for moderate to lower temperature applications with excellent notch toughness.
2. A516 Grade 60: Widely used for boiler and pressure vessel applications with moderate to lower temperature service conditions.
3. A516 Grade 65: Suitable for elevated temperature applications where improved notch toughness is required.
4. A516 Grade 70: The most commonly used grade for pressure vessel and boiler applications, offering excellent strength, toughness, and weldability.
Specifications of A516 Steel Plates:
A516 steel plates are manufactured and tested according to various specifications and standards to ensure quality and performance consistency. The most commonly referenced specifications for A516 steel plates include:
- ASTM A516/A516M: Standard specification for pressure vessel plates, carbon steel, for moderate- and lower-temperature service.
- ASME SA516/SA516M: Specification for pressure vessel plates, carbon steel, for moderate- and lower-temperature service, adopted by the American Society of Mechanical Engineers (ASME).
These specifications outline the requirements for chemical composition, mechanical properties, heat treatment, testing, and dimensional tolerances of A516 steel plate, providing guidelines for manufacturers, engineers, and end-users.
Conclusion:
A516 steel plates play a critical role in various industries, offering exceptional strength, toughness, and weldability for pressure vessel and boiler applications. By understanding the composition, grades, and specifications of A516 steel plates, manufacturers and engineers can make informed decisions regarding material selection, fabrication processes, and compliance with industry standards. Whether in oil and gas, power generation, or manufacturing, A516 steel plates ensure safety, reliability, and performance in critical applications.
