Introduction

We are a Leading Control Valve Manufacturer in China, Delivering High-Quality Valves and Precision Control Actuators Engineered for a Wide Range of Industrial Applications.

In industrial automation, achieving high efficiency, reliability, and cost-effectiveness is essential. Pneumatic quarter-turn actuators have emerged as a vital solution for automating ball and butterfly valves, enabling remote operation via compressed air. Designed to optimize system automation—especially for larger valves—these actuators combine robust performance with economical investment. Their compatibility with ISO 5211 F07 valve mounting flanges and durable construction make pneumatic quarter-turn actuators a preferred choice across numerous industries seeking operational excellence.

This article provides a comprehensive overview of pneumatic quarter-turn actuators, covering their functionality, key features, benefits, and common applications. Whether you’re an engineer, plant manager, or automation specialist, understanding these actuators will empower you to make informed system design and maintenance decisions.

What Are Pneumatic Quarter-Turn Actuators?

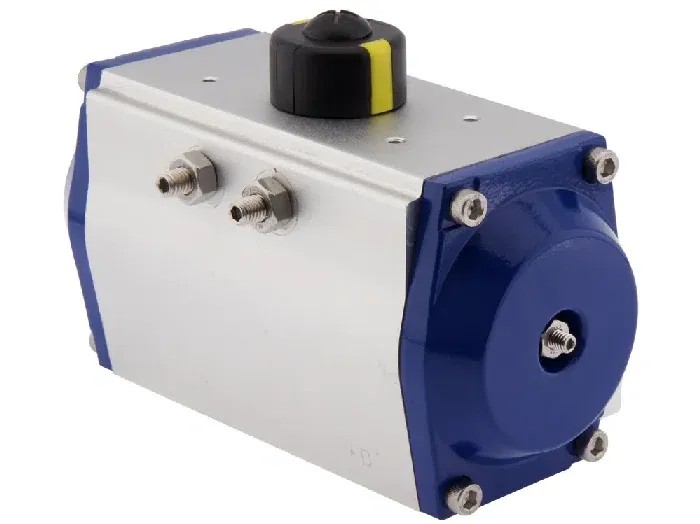

Pneumatic quarter-turn actuators are mechanical devices that convert compressed air energy into rotational motion, typically operating valves that require a 90-degree turn—such as ball or butterfly valves. By automating valve control, they offer precise, reliable, and remote operation critical in modern industrial systems.

These actuators integrate seamlessly with valves featuring ISO 5211 mounting flanges, ensuring easy installation. Equipped with a 17 mm star-shaped drive connection for square shafts, and adaptable to different shaft sizes through various adapters, they provide broad compatibility across valve types and sizes.

Key Features and Specifications

1. Torque Output and Control Pressure
2. Delivers up to 74 Nm torque at 6 bar, with an adjustable control pressure range from 6 to 10 bar, enabling tailored valve actuation forces.
3. Double-Acting Design
4. Uses compressed air for both opening and closing strokes, offering enhanced control, faster response, and increased reliability over single-acting types.
5. Durable Construction
6. Constructed from anodized aluminum housing and cover for corrosion resistance and long service life. Internal rack-and-pinion components are also aluminum, ensuring smooth and robust rotation.
7. Temperature Range
8. Operates reliably between -20°C and 80°C with standard NBR seals. Optional FKM seals extend operational limits for high-temperature environments.
9. Air Supply and Ports
10. Equipped with G 1/4 inch air supply and return ports. A 1/4 inch Namur solenoid valve can be mounted directly, streamlining installation and reducing potential leak points.
11. Position Control and Limit Switches
12. Supports VDI/VDE 3845-standardized mounting for position control or limit switch boxes, allowing precise valve status monitoring.
13. ATEX Certification
14. Certified EX II 2GD c for use in explosive atmospheres, making it ideal for hazardous environments such as oil & gas or chemical processing.

Advantages of Pneumatic Quarter-Turn Actuators

• Enhanced Control: Double-acting design ensures precise and balanced valve movement.
• Wide Compatibility: Fits most ISO 5211 F07 quarter-turn valves.
• Simplified Installation: Direct Namur solenoid valve mounting reduces plumbing complexity.
• High-Speed Operation: Enables rapid valve actuation, improving process efficiency.
• Mechanical Position Indicator: Visual feedback aids maintenance and troubleshooting.
• Explosion-Proof Safety: ATEX certification ensures safe use in hazardous areas.

Considerations and Limitations

• Compressed Air Consumption: Double-acting actuators use more air than single-acting variants, potentially increasing operational costs.
• Air System Dependency: Requires a reliable compressed air supply and solenoid valves.
• Energy Efficiency: Pneumatic actuators generally consume more energy compared to electric alternatives.

Applications

• Oil and Gas: Controls valves on pipelines, refineries, and offshore platforms, especially where ATEX certification is mandatory.
• Chemical Processing: Withstands corrosive and high-temperature environments.
• Water and Wastewater Treatment: Automates flow control valves for efficient plant operation.
• Food and Beverage: Ensures hygienic and automated valve operation.
• Pharmaceuticals: Delivers precise and clean automation in sensitive manufacturing.

Installation and Maintenance Tips

• Verify Compatibility: Confirm flange and shaft sizes before installation.
• Use Throttle Valves: Install throttle valves downstream of solenoid valves to adjust actuator speed.
• Routine Inspection: Regularly check for wear, air leaks, and seal integrity.
• Lubricate Moving Parts: Maintain lubrication to minimize wear and extend service life.
• Maintain Clean Air Supply: Prevent contamination that can impair actuator performance.

Conclusion

Pneumatic quarter-turn actuators offer a reliable, efficient, and cost-effective method for automating ball and butterfly valves across diverse industries. Their robust construction, ease of integration, and ATEX certification make them especially valuable in demanding and hazardous environments.

Though higher compressed air consumption and dependency on air infrastructure are considerations, the benefits of precise control, quick response, and operational safety often outweigh these factors. Understanding these actuators’ features and applications enables you to optimize your automation systems and enhance process efficiency.
