Introduction
Topper Company, a leading professional EV charger manufacturer in China, provides dependable electric vehicle charging stations and comprehensive total solutions.
As electric vehicles (EVs) gain popularity, the demand for efficient and high-speed charging infrastructure is growing just as rapidly. EV charging is typically divided into three categories—Level 1, Level 2, and Level 3—each offering different speeds and capabilities. Among these, Level 3 charging stations stand out as the fastest and most powerful option currently available for public and commercial use.
Often referred to as DC Fast Charging (DCFC), Level 3 chargers are designed for speed and efficiency, capable of delivering between 50 kilowatts (kW) and over 500 kW. However, it's important to note that the actual charging rate is determined by the EV’s maximum input capacity. For instance, if an EV supports a maximum of 50 kW, plugging into a 350 kW charger won’t make it charge faster—it will simply operate at the vehicle’s top speed.
This article explores the technology behind Level 3 chargers, how they differ from Level 1 and Level 2 stations, and what they mean for EV drivers, property owners, and fleet operators.

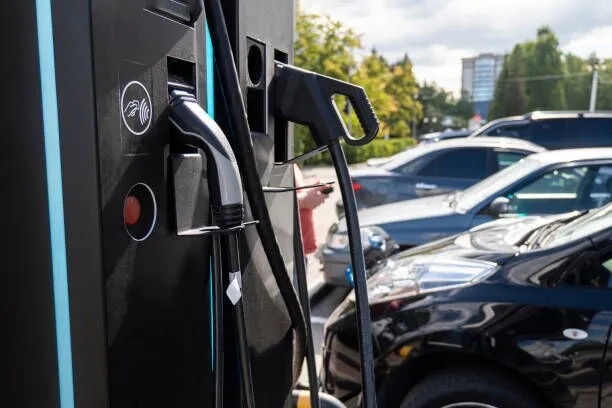

Understanding Level 3 Charging Stations
How Level 3 Charging Works
AC vs. DC Power: Why It Matters
To understand Level 3 charging, it's essential to grasp the difference between alternating current (AC) and direct current (DC):
- AC power is what flows through the electrical grid to homes and businesses.
- DC power is what’s stored in batteries—including EV batteries.
EVs can only store DC power, so AC electricity from the grid must be converted to DC before it charges the battery. The key distinction among charging levels is where and how quickly this AC-to-DC conversion occurs.
Level 1 and Level 2 Charging
In Level 1 and Level 2 charging, this conversion happens inside the EV via the onboard charger, which limits how quickly energy can be delivered.
- Level 1 Charging:
- Uses a standard 120V household outlet.
- Slowest option—adds 2 to 5 miles of range per hour.
- Level 2 Charging:
- Uses a 240V outlet, similar to appliances like ovens or dryers.
- Delivers 10 to 60 miles of range per hour.
- Suitable for homes, workplaces, and commercial settings.
Level 3 Charging: Fast and Efficient
With Level 3 chargers, the AC-to-DC conversion occurs outside the vehicle, within the charger itself. This allows the charger to bypass the vehicle's onboard limitations and feed high-power DC electricity directly into the battery.
- Power output: Typically ranges from 50 kW to 350 kW, with ultra-fast chargers reaching up to 500 kW.
- Charging time: Most EVs can charge from 20% to 80% in 15–45 minutes, depending on vehicle specs and battery size.
Technical Specifications of Level 3 Charging Stations
Power Requirements
Level 3 chargers have far greater energy demands compared to Level 1 and 2.
- Level 2: Operates on a 240V single-phase circuit.
- Level 3: Requires a 480V three-phase power supply, typically available in industrial or commercial locations.
Due to these power requirements, Level 3 chargers are not suited for residential use and are generally installed in public charging hubs, fleet depots, and commercial facilities.
Physical Characteristics
Level 3 chargers are larger, heavier, and more complex than Level 2 units. Many weigh over 500 pounds, necessitating robust mounting and advanced cooling systems to manage the heat generated by rapid charging.
Connector Types:
- Level 2: J1772 (standard for North America).
- Level 3:
- CCS (Combined Charging System): Most widely adopted in North America and Europe.
- CHAdeMO: Common in Asian EV models.
- Tesla Supercharger: Proprietary to Tesla, though adapters are available for broader compatibility.
Charging Times: Level 2 vs. Level 3
Charging LevelVoltagePower OutputCharging TimeRange Added (30 mins)Level 2240V3.3–19.2 kW4–8 hours (full)10–30 milesLevel 3 (DCFC)480V+50–500 kW15–45 mins (20–80%)60–200+ miles
Charging speed varies based on factors like battery capacity, ambient temperature, and state of charge.
When and Where to Use Level 3 Charging
Level 3 charging is ideal for situations where time is critical:
- Public Fast-Charging Stations: Found along highways and in cities to enable long-distance travel and reduce range anxiety.
- Fleet Depots: Used for commercial fleets like delivery vans, taxis, and buses that require minimal downtime.
- Commercial Properties: Shopping malls, hotels, and service stations install them to attract customers and add convenience.
Most EV owners who charge at home or work may rarely need Level 3 chargers—but for road trips or time-sensitive operations, they are invaluable.
Challenges of Level 3 Charging Stations
High Installation Costs
Installing Level 3 chargers can cost $30,000 to over $100,000, depending on site conditions and utility upgrades. Key cost factors include:
- Utility service upgrades
- Site preparation and permitting
- Cooling and housing equipment
- Network and maintenance fees
EV Compatibility
Not all vehicles can utilize Level 3 speeds. Older or lower-cost EVs may be restricted to Level 2 charging rates—even when connected to a Level 3 station.
Grid Impact
Rapid charging draws a heavy load on the power grid. Simultaneous high-speed charging may:
- Trigger demand charges from utilities
- Require coordination with grid operators
- Necessitate energy management systems or battery storage solutions
Limited Availability
Level 3 stations are less common than Level 2 due to cost and complexity. However, public and private investments are accelerating their deployment, especially with support from government grants, rebates, and green infrastructure programs.
Benefits of Level 3 Charging for Commercial Use
Despite the challenges, Level 3 charging offers several commercial advantages:
- Rapid Turnaround: Ideal for fleets that need fast, reliable charging to minimize idle time.
- Customer Attraction: Businesses offering fast charging draw in EV owners, increasing foot traffic and customer satisfaction.
- Sustainability Initiatives: Supports carbon-reduction goals and may help companies earn green building certifications or government incentives.
- Future-Proofing: As EV battery capacities and charging speeds improve, Level 3 infrastructure ensures long-term relevance and scalability.
Conclusion: Powering the Future of EV Mobility
Level 3 charging stations are transforming the EV ecosystem by significantly reducing charging times and enabling more flexible, long-range travel. While installation costs and energy demands remain high, the long-term benefits—economic, environmental, and operational—are compelling.
For fleet managers, property developers, and forward-thinking businesses, investing in Level 3 charging now lays the groundwork for leadership in a cleaner, electrified transportation future.
As battery technology advances and EV adoption accelerates, Level 3 chargers will be a cornerstone of modern mobility infrastructure—fueling not just vehicles, but the next era of sustainable progress. Know more about Google SEO Directory
