Flange connections are one of the most commonly used connection methods in industrial settings. They are widely applied in pipelines, valves, and various equipment, ensuring the safe transmission of fluids through coordinated action among bolts, flanges, and gaskets. Understanding the sealing principles, factors affecting performance, and proper maintenance of flange connections is crucial for achieving reliable and long-lasting operation.

Sealing Principle of Flange Connections

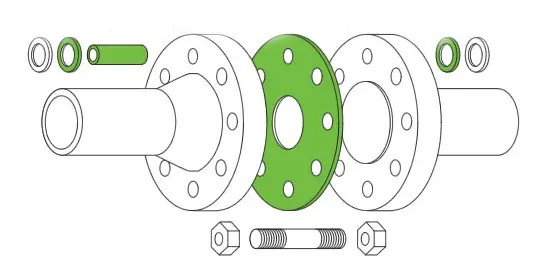

The core of a flange connection lies in its sealing performance, which is primarily achieved through the interaction of bolts, flanges, and gaskets. The gasket is the key component that ensures sealing. When bolts are pre-tensioned, they generate sufficient pressure between the gasket and flange sealing surface. This pressure causes the gasket to deform, filling microscopic irregularities on the flange surface and forming a tight seal.

To maintain effective sealing, the gasket must withstand a minimum clamping force, known as the specific pressure. During operation, the internal pressure of the pipeline applies axial force to the flange, which may reduce the clamping force of the bolts. The gasket must still maintain sealing at this reduced force. If the clamping force falls below the effective clamping force, leakage may occur, and the gasket could even be displaced.

Initially, the gasket relies on plastic deformation to seal the flange. In the operating state, its elastic recovery ensures continued sealing despite flange separation or movement.

Types and Characteristics of Flange Connections

Flange connections come in various types, each suited for specific applications and pressure conditions:

1. Flat Face Flange

• Simple structure and easy to manufacture.
• Requires high bolt pre-tension and robust flanges, as the contact area is large.
• Sealing performance is relatively low; typically used for pressures ≤ 2.5 MPa.
• Not suitable for toxic, flammable, or explosive media.

1. Raised Face Flange

• Easier to align and prevents gasket extrusion.
• More resistant to medium corrosion and erosion.
• Suitable for high-pressure applications but less convenient for gasket replacement.

1. Tongue and Groove Flange

• Features a tongue and groove design to secure the gasket and prevent extrusion.
• Requires less bolt force due to narrow sealing surfaces.
• Ideal for high-pressure or hazardous media applications (flammable, explosive, or toxic).
• Complex structure makes gasket replacement challenging; careful handling during transport is required.

1. Ring Joint Flange

• Commonly used with necked butt-weld or integral flanges.
• Provides excellent sealing under high-pressure and high-temperature conditions.
• Requires precise machining of the sealing surface.

Factors Affecting Flange Sealing

Leakage in flange connections usually occurs at the interface between the gasket and flange. While modern gasket materials have largely eliminated leakage through the gasket itself, external factors can compromise sealing:

1. Operating Conditions

• Pressure, temperature, and medium properties all influence sealing.
• Combined effects of pressure and temperature fluctuations increase the risk of leakage.

1. Gasket Factor and Specific Pressure

• Gasket width, pre-tension force, medium properties, and flange surface roughness all impact sealing.
• Selection must be tailored to specific operating conditions.

1. Bolt Pre-tension Force

• Proper pre-tensioning improves gasket sealing.
• Over-tightening can crush the gasket or damage the flange, reducing elasticity and sealing performance.

1. Gasket Material

• Material properties directly affect gasket deformation (elastic and plastic) and overall sealing reliability.

1. Flange Stiffness

• Inadequate stiffness can cause warping, leading to leakage.
• Flatness and perpendicularity of the flange sealing surface are critical for uniform clamping.
• Thermal expansion and pipeline forces must be considered during design.

Leakage Paths and Mitigation

Flange leakage occurs mainly through:

1. Gasket permeation – largely resolved with modern materials.
2. Gaps between the gasket and flange surface – still the primary cause of leakage.

To minimize leakage, flanges must meet both strength and stiffness requirements. Proper bolt tightening sequences (e.g., crosswise equidistant) are critical to ensure uniform clamping and prevent leakage.

Maintenance and Inspection

Regular maintenance is essential for long-term sealing performance:

1. Bolt Tightening

• Inspect bolt pre-tension regularly to compensate for temperature changes, vibration, and relaxation.

1. Gasket Wear

• Check for aging, wear, or damage and replace gaskets promptly.

1. Flange Surface Condition

• Ensure flatness, cleanliness, and absence of debris on sealing surfaces.

1. Flange Deformation

• Monitor for warping or misalignment and correct issues promptly.

1. Operating Condition Changes

• Adapt flange sealing measures if pressure, temperature, or medium composition changes.

Conclusion

Flange connections are vital components in pipeline systems, achieving sealing through the coordinated action of bolts, flanges, and gaskets. Proper selection of flange type, gasket material, and bolt pre-tension, combined with regular maintenance and inspection, ensures reliable sealing, prevents leakage, and extends service life. By understanding the principles, influencing factors, and maintenance requirements of flange connections, engineers can maintain safe and efficient operation in complex industrial environments. It's important to know about Google SEO to help your website rank higher in search results.
